TrueXMA™ Multimode Amplifier Module
Development of the new TrueXMA Multimode Amplifier Module was driven by increasing demand for high pulse energy requirements in industrial surface treatment applications. The TrueXMA Multimode Amplifier Module builds upon the TrueMode™ Fiber Laser Cavity family designed for kilowatt single-mode fiber lasers for industrial machining and welding. Lightera, a global market leader in the design and manufacture of rare-earth doped fibers, possess the expertise and experience in fiber fabrication necessary to meet that demand. Lightera has been developing and manufacturing high-power components and modules for many years and understands the reliability standards expected in the diverse material processing applications.
TrueXMF Yb Multimode fiber available separately.
Development of the new TrueXMA Multimode Amplifier Module was driven by increasing demand for high pulse energy requirements in industrial surface treatment applications. The TrueXMA Multimode Amplifier Module builds upon the TrueMode™ Fiber Laser Cavity family designed for kilowatt single-mode fiber lasers for industrial machining and welding. Lightera, a global market leader in the design and manufacture of rare-earth doped fibers, possess the expertise and experience in fiber fabrication necessary to meet that demand. Lightera has been developing and manufacturing high-power components and modules for many years and understands the reliability standards expected in the diverse material processing applications.
TrueXMF Yb Multimode fiber available separately.
Numerical Aperture
Features And Benefits
- Ultra-large multimode core enables kilowatt average power, high pulse energy amplification with low nonlinearity
- Designed for high efficiency and low thermal load

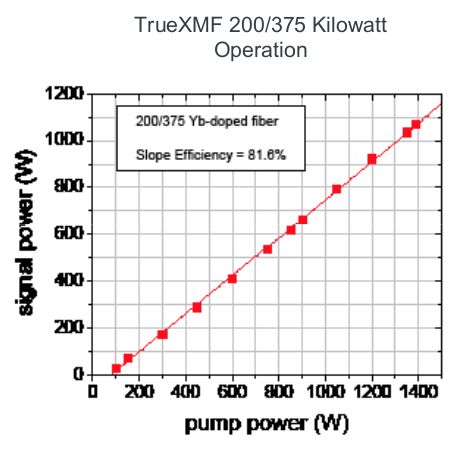

- Fiber amplifier built using TrueXMF™ Yb 200/375 Optical Fiber
- Module design allows for rapid prototyping
Product Overview
Development of the new TrueXMA Multimode Amplifier Module was driven by increasing demand for high pulse energy requirements in industrial surface treatment applications. The TrueXMA Multimode Amplifier Module builds upon the TrueMode™ Fiber Laser Cavity family designed for kilowatt single-mode fiber lasers for industrial machining and welding. Lightera, a global market leader in the design and manufacture of rare-earth doped fibers, possess the expertise and experience in fiber fabrication necessary to meet that demand. Lightera has been developing and manufacturing high-power components and modules for many years and understands the reliability standards expected in the diverse material processing applications.
TrueXMF Yb Multimode fiber available separately.
Typical Applications
- Ablation
- Paint Removal
- Structure Cleaning
- Texturing
- Coating Removal
- Rust Removal
Product Specifications
| Product Specifications | |
|---|---|
| Product Description | TrueXMA™ Multimode Amplifier Module |
| Performance | |
| Operating Wavelength | 1070 ± 10 nm |
| Maximum Output Power (CW) | 1000W |
| Efficiency | > 70% with 10W seed average power |
| Beam quality | Multimode Output Beam |
| Seed laser requirements | > 4W average power, Wavelength 1070 ± 10 nm |
| Divergence (Full Angle) | 178 mrad |
| Pump Fiber Legs | |
| Number of Pump Fiber Legs | 11 |
| Fiber Type | 0.22 NA / 110 μm core / 125 μm cladding |
| Fiber Length (m) | > 1.5 m |
| Single Input Fiber | |
| Fiber Type | 0.22 NA / 110 μm core / 125 μm cladding |
| Fiber Length (m) | > 1.5 m |
| Output Fiber | |
| Fiber Type | 0.22/0.46 NA / 300 μm core / 330 μm cladding |
| Fiber Length (m) | > 1.5 m |
| Features | |
| Output Power Monitor | Electrical output |
| Operation & Storage | |
| Operating Coolant Temperature | < 25 °C |
| Transport & Storage Temperature | -20 to +60 °C |
| Transport & Storage Humidity | < 85% (non-condensing) |

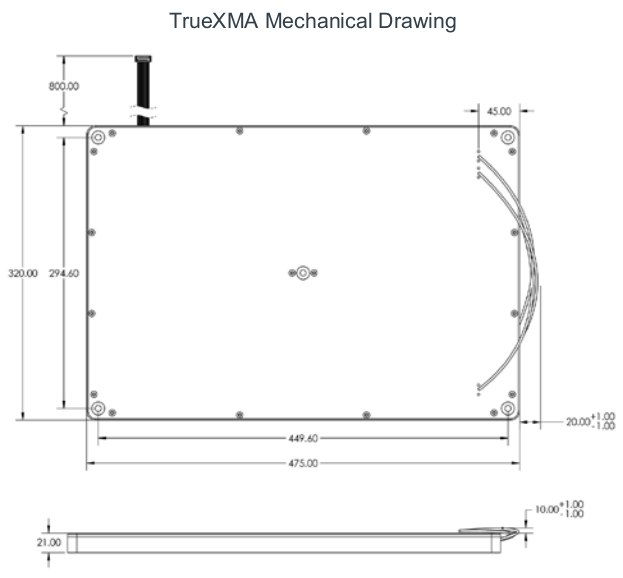

| Approximate Dimensions (mm) | 475 x 320 x 21 |
| Connector / Ribbon Cable Descriptions | |
| Cable Length | 800 ± 5 mm |
| Pump Diode Requirements | |
| Fiber Type | 110/125 µm |
| Numerical Aperture Pigtail Fiber | 0.22 |
| NA Filling | 0.15 (95% power content) |
| Parameters | |
| Center Wavelength | 915/976 nm |
| Isolation | Filtering required at operating wavelength |
| Part Number | 7000633-01 |
