- Frontal and rear management systems to easily install pre connectorized assemblies and jumpers
- Easy access to LGX cassettes or adapters plates for new connections or maintenance
- 19” and 23” rack compatible
Code -
07049-01

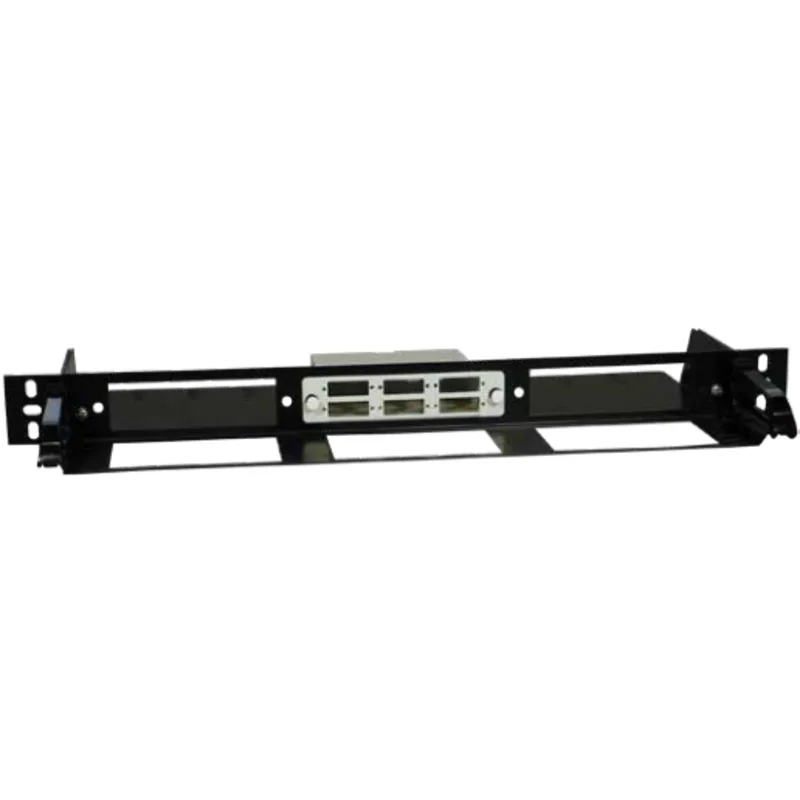

1RU LGX Patch Panel
The LGX modular Patch Panel is used to manage your pre-terminated solutions efficiently, saving time and money. It enables quick and easy installation of LGX pre connectorized cassettes or adapter plates. You can easily rearrange your network connections and connect new jumpers.
The 1RU Patch Panel houses 03 LGX cassettes or LGX plates up to 72 LC terminations. The product measures 17.5 inches wide by 10.0 inches deep and 1.72 inches high.
The Panel allows fixation onto 19 or 23” rack and cabinets. The frontal management system is equipped with lateral jumper guides in order to protect the patch cords.
The LGX modular Patch Panel is used to manage your pre-terminated solutions efficiently, saving time and money. It enables quick and easy installation of LGX pre connectorized cassettes or adapter plates. You can easily rearrange your network connections and connect new jumpers.
The 1RU Patch Panel houses 03 LGX cassettes or LGX plates up to 72 LC terminations. The product measures 17.5 inches wide by 10.0 inches deep and 1.72 inches high.
The Panel allows fixation onto 19 or 23” rack and cabinets. The frontal management system is equipped with lateral jumper guides in order to protect the patch cords.
Features And Benefits
Product Description
The LGX modular Patch Panel is used to manage your pre-terminated solutions efficiently, saving time and money. It enables quick and easy installation of LGX pre connectorized cassettes or adapter plates. You can easily rearrange your network connections and connect new jumpers.
The 1RU Patch Panel houses 03 LGX cassettes or LGX plates up to 72 LC terminations. The product measures 17.5 inches wide by 10.0 inches deep and 1.72 inches high.
The Panel allows fixation onto 19 or 23” rack and cabinets. The frontal management system is equipped with lateral jumper guides in order to protect the patch cords.
Product Characteristics
| PRODUCT CHARACTERISTICS | |
|---|---|
| Capacity | Up to 03 LGX cassettes or plates |
| Frontal Management System | Yes |
| Application Environment | Indoor installation in open racks or cabinets |
| Rear Fixation For Pre-terminated | Yes |
| Cables 19" and 23" Rack Compatible | Yes |
Physical Characteristics
| PHYSICAL CHARACTERISTICS | |
|---|---|
| Product Dimensions | 17.5 (width) X 1.72 (height) X 10.0 (depth) inches |
| Product Material | Steel |
| Color | Black |
Ordering Information
| ORDERING INFORMATION | ||
|---|---|---|
| Comcode | Product Code | Description |
| 301136594 | 1U T-LIU 1000XXX-XX-BLK-EMPTY | 1RU empty Pach Panel for 03 LGX adapter plates or cassettes |
| 301136602 | 1U T-LIU SC06-1000SC1-06-BLK-SPX-BLUE | 1RU Patch Panel with 01 plate of 06 SC ports |
| 301136610 | 1U T-LIU SC12-1000SC1-06-BLK-SPX-BLUE | 1RU Patch Panel with 02 plates of 06 SC ports |
| 301136628 | 1U T-LIU ISC18-1000SC1-06-BLK-SPX-BLUE | 1RU Patch Panel with 03 plates of 06 SC ports |
| 301136636 | 1U T-LIU SC12-1000SC1-12-BLK-SPX-BLUE | 1RU Patch Panel with 01 plate of 12 SC ports |
| 301136644 | 1U T-LIU SC24-1000SC1-12-BLK-SPX-BLUE | 1RU Patch Panel with 02 plates of 12 SC ports |
| 301136651 | 1U T-LIU SC36-1000SC1-12-BLK-SPX-BLUE | 1RU Patch Panel with 03 plates of 12 SC ports |
| 301136669 | 1U T-LIU LC06-1000LC1-06-BLK-SPX-BLUE | 1RU Patch Panel with 01 plate of 06 LC ports |
| 301136677 | 1U T-LIU LC12-1000LC1-06-BLK-SPX-BLUE | 1RU Patch Panel with 02 plates of 06 LC ports |
| 301136685 | 1U T-LIULC18-1000LC1-06-BLK-SPX-BLUE | 1RU Patch Panel with 03 plates of 06 LC ports |
| 301136693 | 1U T-LIU JLC12-1000SC1-06-BLK-DPX-BLUE | 1RU Patch Panel with 01 plate of 12 LC ports |
| 301136701 | 1U T-LIU LC24-1000SC1-06-BLK-DPX-BLUI | 1RU Patch Panel with 02 plates of 12 LC ports |
| 301136719 | 1U T-LIU LC36-1000SC1-06-BLK-DPX-BLUE | 1RU Patch Panel with 03 plates of 12 LC ports |
| 301136727 | 1U T-LIU LC24-1000SC1-12-BLK-DPX-BLUE | 1RU Patch Panel with 01 plate of 24 LC ports |
| 301136735 | 1U T-LIU LC48-1000SC1-12-BLK-DPX-BLUE | 1RU Patch Panel with 02 plates of 24 LC ports |
| 301136743 | 1U T-LIU LC72-1000SC1-12-BLK-DPX-BLUE | 1RU Patch Panel with 03 plates of 24 LC ports |
Contact Information
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.
Trademark Notice and Disclaimer
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
