Descontinuado
Code - 06959-01

3.0 mm SMA 905 Connector for Step-Index 200/230 µm HCS®

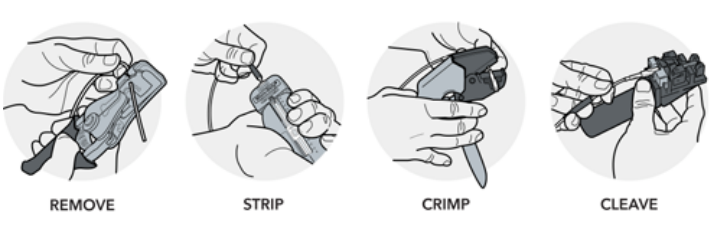

Lightera SMA 905 threaded connector system is compatible with Lightera Crimp and Cleave Termination Kits. The crimp and cleave SMA 905 connector takes advantage of the advanced optomechanical properties of HCS fiber, attaching through mechanical means rather than traditional epoxy/polish. This saves time and greatly simplifies installer training requirements. It is an excellent solution for field connectorization and repair in harsh, industrial environments. No epoxy, no curing, no polishing steps. Quick, easy, reliable.

Lightera SMA 905 threaded connector system is compatible with Lightera Crimp and Cleave Termination Kits. The crimp and cleave SMA 905 connector takes advantage of the advanced optomechanical properties of HCS fiber, attaching through mechanical means rather than traditional epoxy/polish. This saves time and greatly simplifies installer training requirements. It is an excellent solution for field connectorization and repair in harsh, industrial environments. No epoxy, no curing, no polishing steps. Quick, easy, reliable.

Overview

Lightera SMA 905 threaded connector system is compatible with Lightera Crimp and Cleave Termination Kits. The crimp and cleave SMA 905 connector takes advantage of the advanced optomechanical properties of HCS fiber, attaching through mechanical means rather than traditional epoxy/polish. This saves time and greatly simplifies installer training requirements. It is an excellent solution for field connectorization and repair in harsh, industrial environments. No epoxy, no curing, no polishing steps. Quick, easy, reliable.


3.0 mm SMA 905 Connector for Step-Index 200/230 µm HCS®

Typical Applications

  • Data Communication Links
  • Factory Automation Systems
  • Industrial Applications
  • Laser Power Delivery
  • Military Applications
  • Near-IR Spectroscopy
  • Programmable Logic Control Systems

Product Specifications

Product Specifications
Product Description 3.0 mm SMA 905 Connector for Step-Index 200/230 µm HCS®
Specifications
For Use with Optical Fiber Cable Types Step-Index 200/230 µm HCS Cables
Overall Length 2.5 in. (63.5 mm)
Connector Performance Data
Typical Insertion Loss 1.0 dB
Maximum Insertion Loss 1.5 dB
Operating Temperature -40 to +80 ºC
Cable Crimp Retention 50 lb. (223 N)
Cable Design
Jacket Diameter 3.0 mm
Compatibility
Compatible Field Termination Kit DT03732-31 Crimp & Cleave SMA 200 µm Termination Kit
Compatible Insertion Loss Kit P10188-05 SMA Insertion Loss Test Kit
P10188-08 Multi-Set (4 Types: V-Pin, ST, SMA, and F07) Insertion Loss Test Kit
Accessories
SMA 905 Mating Adapter AP01618
Assemblies All SMA 905 connectors can be provided on respective HCS cable constructions as factory terminated and fully tested assemblies. Please call Technical Support for information at 1-888-438-9936.
Order by Part Number BP05061-14

Contact Information

For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.

Trademark Notice and Disclaimer

Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
