Descontinuado
Code - 06965-01

3.0 mm ST Connector for 200/230 µm Step-Index HCS®

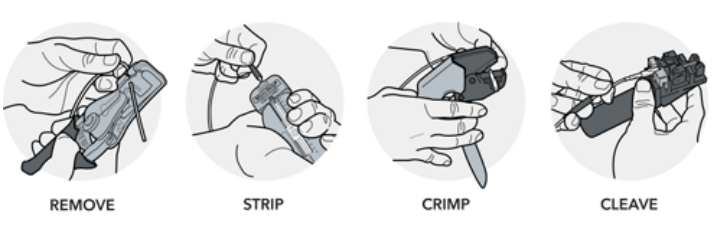

Lightera ST bayonet style connector system is compatible with Lightera Crimp and Cleave Termination Kits. The crimp and cleave ST Connector takes advantage of the advanced optomechanical properties of HCS fiber, attaching through mechanical means rather than traditional epoxy/polish. This saves time and greatly simplifies installer training requirements. It is an excellent solution for field connectorization and repair in harsh, industrial environments. No epoxy, no curing, no polishing steps. Quick, easy, reliable.

Lightera ST bayonet style connector system is compatible with Lightera Crimp and Cleave Termination Kits. The crimp and cleave ST Connector takes advantage of the advanced optomechanical properties of HCS fiber, attaching through mechanical means rather than traditional epoxy/polish. This saves time and greatly simplifies installer training requirements. It is an excellent solution for field connectorization and repair in harsh, industrial environments. No epoxy, no curing, no polishing steps. Quick, easy, reliable.

Overview

Lightera ST bayonet style connector system is compatible with Lightera Crimp and Cleave Termination Kits. The crimp and cleave ST Connector takes advantage of the advanced optomechanical properties of HCS fiber, attaching through mechanical means rather than traditional epoxy/polish. This saves time and greatly simplifies installer training requirements. It is an excellent solution for field connectorization and repair in harsh, industrial environments. No epoxy, no curing, no polishing steps. Quick, easy, reliable.


3.0 mm ST Connector for 200/230 µm Step-Index HCS®

Typical Applications

  • Data Communication Links
  • Factory Automation Systems
  • Near-IR Spectroscopy
  • Programmable Logic Control Systems

Product Specifications

Product Specifications
Product Description 3.0 mm ST Connector for 200/230 µm Step-Index HCS
Specifications
For Use with Optical Fiber Cable Types Step-Index 200/230 µm HCS Cables
Overall Length 2.7 in. (68.6 mm)
Connector Performance Data
Typical (Graded-Index HCS) Insertion Loss @ 850 nm 1.7 dB
Typical (Step-Index HCS) Insertion Loss @ 850 nm 1.5 dB
Operating Temperature -40 to +80 ºC
Cable Crimp Retention 50 lb. (223 N)
Cable Design
Jacket Diameter 3.0 mm
Compatibility
Compatible Field Termination Kit DT03732-32 Crimp & Cleave ST 200 µm Termination Kit
DT03732-41 Crimp & Cleave 50/62.5 µm Termination Kit
Compatible Insertion Loss Kit P10188-03 ST Insertion Loss Test Kit
P10188-08 Multi Set (4-Types: V-Pin, ST, SMA, and F07) Insertion Loss Test Kit
P10188-10 ST Insertion Loss Test Kit
Accessories
ST Mating Adapter AP01960
Assemblies All ST connectors can be provided on respective HCS cable constructions as factory terminated and fully tested assemblies. Please call Technical Support for information at 1-888-438-9936.
Order by Part Number BP05065-14
