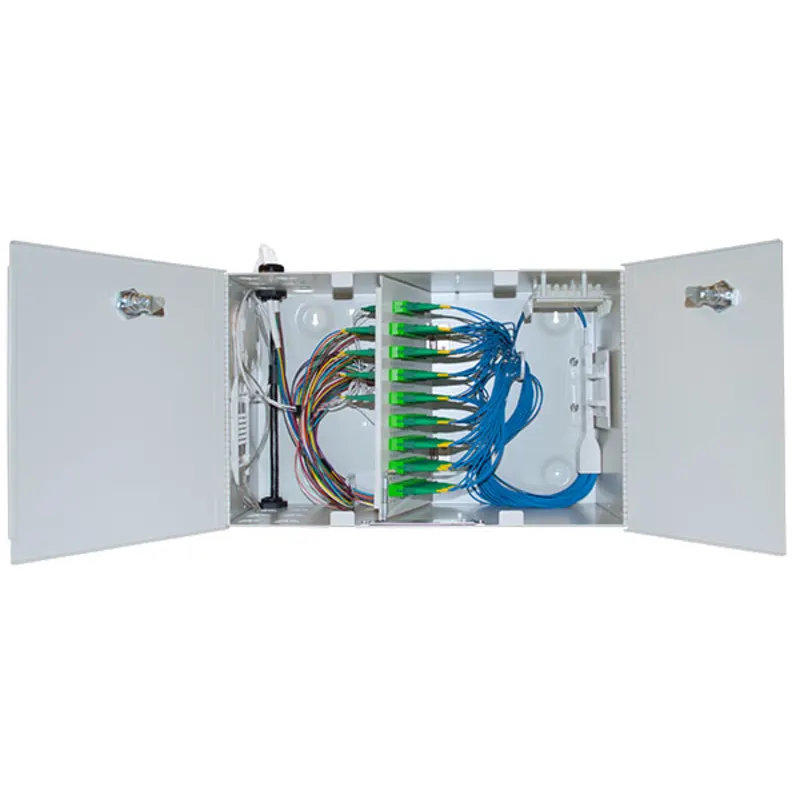

64 Fiber Distribution Hub

The 64 FDH utilizes Lightera’ popular 400A enclosure which is especially useful for tight spaces in MDU applications. It can house up to 4 Direct Connect splitters, available in either 1X8, 1X16, or 1X32 split ratios. The cabinet can be equipped with either SC APC or LC APC connectors.

Input and output fibers are connectorized and stored on the left hand side of the enclosure. The enclosure can be mounted directly to the wall or on a plywood board. Splice trays are available for pigtail splicing or connectorized cables can be used for distribution routing.

Product Description

Cabinet

10" (25.4 cm) H X 17" (43 cm) W x 6" (15.2 cm) D

Splitter Capacity

1×32: Up to 2
1×16: Up to 4
1×8: Up to 4
Splice capacity: Up to 64
"Parking lot" capacity: 32

Insertion Loss (max)

0.5 dB

Return Loss (min)

-65 dB for APC
-55 dB for UPC

Mating Durability

100 reconnects

Operating Temp

-40 to 80 °C

Storage Temp

-40 to 85 °C

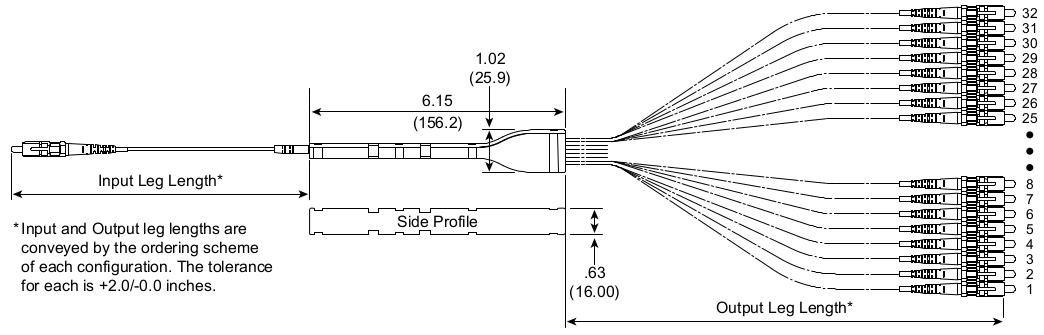

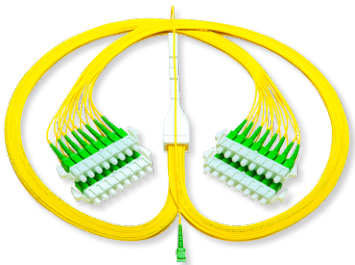

Splitter Module Specifications

Splitter Module Specifications
PLC Configuration	1 X 8	1 X 16	1 X 32
Operating Wavelength	1260 – 1650 nm	1260 – 1650 nm	1260 – 1650 nm
Max. Insertion Loss (dB)	10.8	14.2	17.2
Max. Insertion Loss Uniformity (dB)	1.0	1.3	1.6
Max. Polarization Dependent Loss (dB)	0.3	0.3	0.3
Min. Return Loss (dB)	50	50	50
Min. Directivity (dB)	50	50	50
Operating temperature	-40 °C Max. 75 °C	-40 °C Max. 75 °C	-40 °C Max. 75 °C
Storage temperature	-40 °C Max. 85 °C	-40 °C Max. 85 °C	-40 °C Max. 85 °C
