AccuFlex Rollable Ribbon Cable
Code -
06112-1
AccuFlex Rollable Ribbon Cable

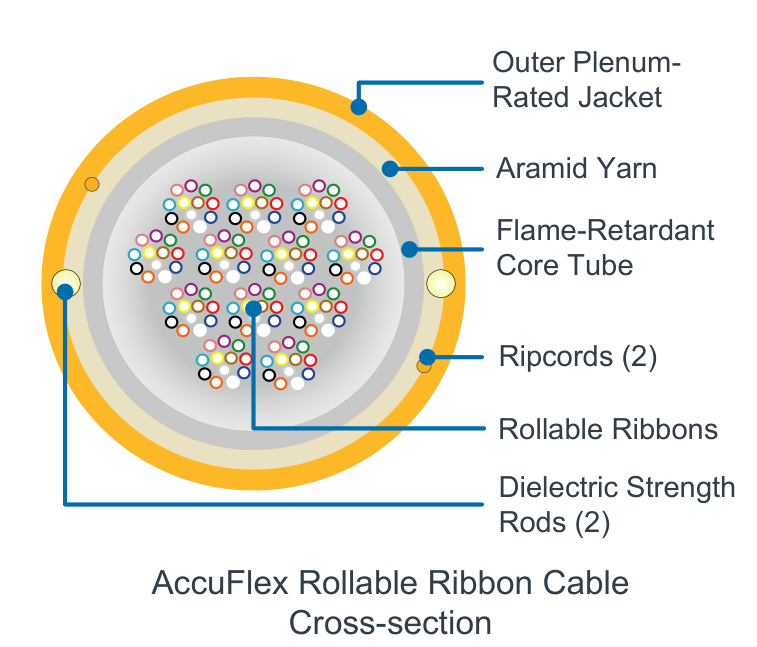

The AccuFlex Rollable Ribbon Cable was specifically designed to offer the benefits of both traditional flat fiber ribbons and loose fibers in one cable. This highly compact cable features rollable ribbon technology, the newest optical fiber ribbon design from OFS. To form these ribbons, individual 250 µm fibers are partially bonded to each other at intermittent points.
The AccuFlex Rollable Ribbon Cable was specifically designed to offer the benefits of both traditional flat fiber ribbons and loose fibers in one cable. This highly compact cable features rollable ribbon technology, the newest optical fiber ribbon design from OFS. To form these ribbons, individual 250 µm fibers are partially bonded to each other at intermittent points.
Product Name
Features
- Ultra-compact, round rollable ribbon design
- Fiber counts of 12-144 and 288
- Flexible, plenum-rated cable
- ROHS-compliant and free of heavy metals
- Available with OFS AllWave® FLEX+ Zero Water Peak (ZWP) (G.657. A2) or AllWave®+ Fibers (G.652.D + G.657.A1)
Benefits
- Delivers the highest fiber density relative to cable size
- Offers durability and enhanced compression resistance
- Flexibility of cable promotes ease of handling and installation to help speed deployment

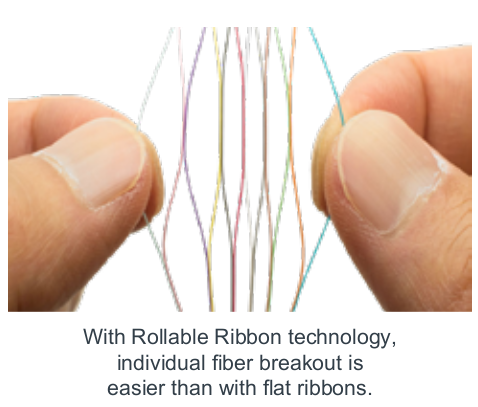

- Ribbon fibers can be easily separated into single fibers or mass fusion spliced
Product Description
The AccuFlex Rollable Ribbon Cable was specifically designed to offer the benefits of both traditional flat fiber ribbons and loose fibers in one cable. This highly compact cable features rollable ribbon technology, the newest optical fiber ribbon design from OFS. To form these ribbons, individual 250 µm fibers are partially bonded to each other at intermittent points.
Why To Use It
The AccuFlex Rollable Ribbon Cable was designed to offer the highest fiber density possible relative to cable size with a highly flexible cable jacket. The result is an ultra-compact and dense cable that requires less space, allowing installers to double the density of existing pathways vs. standard flat ribbon cable designs. This cable features 12-fiber rollable ribbons that help to facilitate efficient mass fusion splice-in-place operations and easy access to individual fibers. This capability can help to get a new data center or central office deployment up and running quickly. The strong yet flexible, plenum-rated AccuFlex Rollable Ribbon Cable helps to prevent installation issues including packing density, routing and speed of deployment. This cable’s flame rating also meets the demands of NFPA 262, thereby allowing installation into air-handling spaces. In all, the AccuFlex Rollable Ribbon Cable offers an outstanding solution for data centers/central offices and head ends. It is also an excellent choice for high-bandwidth applications that use single-mode optical fiber.
Fiber Count
12-144
Cable Outer Diameter
0.38 in (9.6 mm)
Cable Weight
65 lb/kft (97 kgm/km)
Minimum Bend Radius With Load
7.6 in (192 mm)
Minimum Bend Radius No Load
3.0 in (77 mm)
Maximum Cable Attenuation 1310 Nm
0.4 dB/km
Maximum Cable Attenuation 1550 Nm
0.3 dB/km
Maximum Tensile Rating
300 lb (1335 N)
Flame Performance
NEC Compliant UL Listed as compliant with NFPA 262 and UL 910 for Plenum use. Jacket Marking: OFNP FT6 c(UL) OFNP.
Performance Standard
The AccuFlex Rollable Ribbon Cable meets all or portions of Telcordia GR-409/ICEA-S-83-696/ICEA-S-104-696/ICEA-S-115-730 and TIA-568. Plenum-rated cables are UL® listed as compliant with NEC® Article 770 as Type OFNP and with NFPA 262 and UL 910 for plenum use.
Handling Temperature Installation
-32 °F to 158 °F (0 °C to 70 °C)
Handling Temperature Operation
-4 °F to 158 °F (-20 °C to 70 °C)
Handling Temperature Storage
-40 °F to 158 °F (-40 °C to 70 °C)
Fiber Count
288
Cable Outer Diameter
0.48 in (12.1 mm)
Cable Weight
75 lb/kft (112 kgm/km)
Minimum Bend Radius With Load
9.6 in (242 mm)
Minimum Bend Radius No Load
3.8 in (96.8 mm)
Maximum Cable Attenuation 1310 Nm
0.4 dB/km
Maximum Cable Attenuation 1550 Nm
0.3 dB/km
Maximum Tensile Rating
300 lb (1335 N)
Flame Performance
NEC Compliant UL Listed as compliant with NFPA 262 and UL 910 for Plenum use. Jacket Marking: OFNP FT6 c(UL) OFNP.
Performance Standard
The AccuFlex Rollable Ribbon Cable meets all or portions of Telcordia GR-409/ICEA-S-83-696/ICEA-S-104-696/ICEA-S-115-730 and TIA-568. Plenum-rated cables are UL® listed as compliant with NEC® Article 770 as Type OFNP and with NFPA 262 and UL 910 for plenum use.
Handling Temperature Installation
-32 °F to 158 °F (0 °C to 70 °C)
Handling Temperature Operation
-4 °F to 158 °F (-20 °C to 70 °C)
Handling Temperature Storage
-40 °F to 158 °F (-40 °C to 70 °C)
Trademarks
AccuFlex® AllWave® UL® NEC®
Document Id
prem-242
Date
0120
Contact Information Phone
1-888-fiberhelp (1-888-342-3743) USA or 1-770-798-5555 outside the USA
Example
AFRR-144A-WPY-4¹
Part Number
AFRR- NNN A – W X Y – Z
AFRR
AccuFlex Rollable Ribbon Cable
NNN
Fiber Count 144 or 288
A
Initial Release Version
W
Fiber Type (see chart)²
X
Jacket Material (flame retardant) P = Plenum
Y
Jacket Color² Y = Yellow
Z
Maximum Cable Attenuation (see chart)
Code
W
Description
AllWave® FLEX+ ZWP Bend-Optimized Optical Fiber(G.657.A2)
Code
A
Description
AllWave+ ZWP Bend-Optimized Optical Fiber (G.657.A1)
Single-Mode Optical Fiber
AllWave FLEX+ ZWP Bend-OptimizedOptical Fiber
1310 nm
0.4
1550 nm
0.3
MCA (Z)
4
Single-Mode Optical Fiber
AllWave+ ZWP Bend-OptimizedOptical Fiber
1310 nm
0.4
1550 nm
0.3
MCA (Z)
4
