AccuRibbon® DC Fiber Optic Cable

Features And Benefits

Totally gel-free cable design for cleaner, faster installations
A significantly lighter weight cable for faster and easier cable deployment
AccuRibbon core maximizes fibers per duct and supports mass-fusion splicing
Metallic and dielectric sheath options support lashed aerial, direct buried, and duct installations
Deploy up to 432 fibers in a one-inch ID duct
Available with a wide range of Lightera fibers including AllWave® Zero Water Peak (ZWP) and AllWave+ Single-Mode Fibers Single-Mode Fibers


AccuRibbon DC Cable

Product Description

At first glance, you might not recognize an AccuRibbon® DC Cable. That’s because it uses the same robust sheath as the gel-filled AccuRibbon LXE Cable. However, once you open the patented core of an AccuRibbon DC Cable, the difference between a gel-filled and a completely dry cable is clear. The core of the all-dry AccuRibbon DC Cable contains absolutely no gels or messy filling compounds, which eliminates the costly labor of removing gel and oil from each fiber ribbon prior to splicing and helps your tools and your workspace stay clean and safe.

The construction of the AccuRibbon DC Cable begins with its dry central core tube, which contains a gel-free, water-blocking tape and either up to eighteen 12-fiber AccuRibbon units (12 to 216 fibers) or up to thirty-six 24-fiber AccuRibbon units (240 to 864 fibers). Surrounding the central tube is an additional layer of water-blocking tape and an optional layer of armor. Completing the construction of the AccuRibbon DC Cable is a durable polyethylene (PE) jacket with integrated metallic or dielectric strength members. Ripcords are strategically located beneath the jacket for easy cable entry.

Why The AccuRibbon DC Cable?

With its innovative dry-core design, the AccuRibbon DC Cable is specifically engineered for faster, cleaner installation. Unlike traditional outside plant fiber optic cables that use gels in direct contact with optical fibers, the AccuRibbon DC Cable replaces the gel inside the central tube with a super-absorbent tape that provides water blocking “on demand”. The absence of gels allows almost effortless splice preparation and a lower overall cable weight. Why not lose the gel today?

In addition to being gel free, AccuRibbon units support the use of mass-fusion splicing to speed fiber termination. The inherent high fiber density of AccuRibbon units also helps to maximize the number of fibers that can be deployed in available duct space. Deploying the most fibers possible in a limited space and terminating them quickly and cheaply are critical to cost-effective deployments – AccuRibbon DC Cables can help you do both.

Specifications

Specifications
Sheath	Dielectric Sheath							Metallic Sheath
Fiber Count	12-24	36-72	84-96	108-144	156-216	288-576	720-864	12-24	36-72	84-96	108-144	156-216	288-576	720-864
Outer Diameter – in. (mm)	0.44 (11.3)	0.50 (12.6)	0.50 (12.8)	0.55 (13.9)	0.65 (16.5)	0.78 (19.8)	0.99 (25.1)	0.46 (11.7)	0.49 (12.5)	0.53 (13.4)	0.59 (15.0)	0.69 (17.5)	0.84 (21.3)	1.02 (26.0)
Weight – lb/kft (kgm/km)	82 (122)	99 (147)	99 (147)	110 (163)	136 (202)	172 (256)	260 (387)	101 (151)	109 (163)	116 (173)	141 (210)	169 (252)	222 (331)	303 (451)

Performance Standard

Performance Standard
Tested per Applicable Requirements of ANSI/ICEA S-87-640 and Telcordia GR-20-CORE Issue 4

Temperature

Temperature
Installation	-22 °F to 140 °F (-30 °C to 60 °C)
Operation	-40 °F to 158 °F (-40 °C to 70 °C)
Storage	-40 °F to 167 °F (-40 °C to 75 °C)

Handling

Handling
Sheath	Dielectric Sheath			Metallic Sheath
Fiber Count	12-240	264-432	576-864	12-240	264-432	576-864
Minimum Bend Radius, With Load	20 X OD**	20 X OD	20 X OD	20 X OD	20 X OD	20 X OD
Minimum Bend Radius, With No Load	10 X OD	20 X OD	20 X OD	10 X OD	20 X OD	20 X OD
Minimum Bend Radius, Storage Coils	10 X OD	20 X OD	20 X OD	10 X OD	20 X OD	20 X OD
Maximum Rated Cable Load (MRCL)	600 lbf (2700 N) for all cables
Maximum Long Term Load	180 lbf (800 N) for all cables

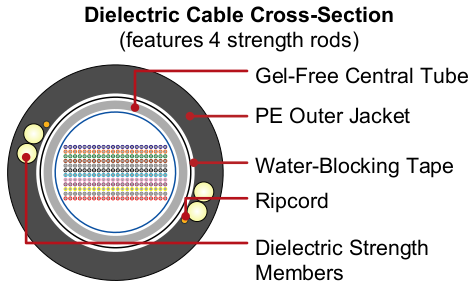

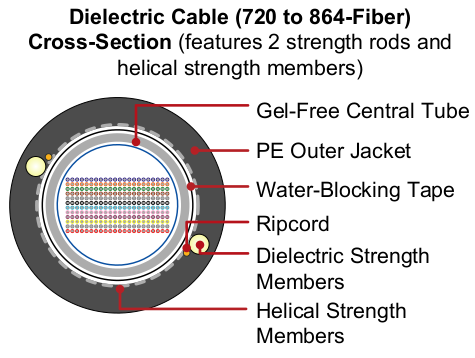

Note	Low fiber count dielectric cables feature 4 strength rods, 720 and 864 dielectric cables feature 2 rods; metallic cables feature 2 rods; ** OD = Outer Diameter of Cable, minimum of 9 in. (23 cm) See Lightera Installation Procedure 042 for sheath preparation and coiling instructions

Fiber Type²

Fiber Type²
Single-Mode Optical Fiber	Fiber (S1)	Fiber (S2)	Fiber (SF)	Fiber Standards	Wavelengths (nm)	*Typical Attenuation (dB/km)**	Maximum Cable on Reel Attenuation (dB/km)
AllWave® ZWP Optical Fiber	3	B	E	G.652.D	1310/1385/1550	–	0.35/0.31/0.25
AllWave+ ZWP Optical Fiber	3	C	E	G.652.D/G.657.A1	1310/1385/1550	–	0.35/0.31/0.25
AllWave FLEX ZWP Optical Fiber	5	B	E	G.652.D/G.657.A1	1310/1385/1550	–	0.35/0.31/0.25
AllWave One Optical Fiber	3	F	E	G.652.D/G.657.A1	1310/1385/1550	0.33/0.31/0.19	0.35/0.31/0.22
TrueWave® RS LWP Optical Fiber	6	2	6	G.655.C & D	1550	0.21	0.25
TeraWave® Optical Fiber	6	2	R	G.654.B	1550	0.20	0.25

Multimode Optical Fiber	Fiber (S1)	Fiber (S2)	Fiber (SF)	Fiber Standards	Wavelengths (nm)	*Typical Attenuation (dB/km)**	Maximum Cable on Reel Attenuation (dB/km)
62.5 µm Optical Fiber	R	U	9	OM1 62.5 µm	850/1300	–	3.4/1.0
LaserWave® FLEX 300 Optical Fiber	L	F	2	OM3 50 µm	850/1300	–	2.4/0.7
LaserWave FLEX 550 Optical Fiber	L	H	2	OM4 50 µm	850/1300	–	2.4/0.7
Multimode optical fibers are qualified up to 216 fibers only (12 fiber ribbons). Contact Lightera for higher fiber count cable using multimode optical fiber.

AccuRibbon DC Cable Ordering Information

AccuRibbon DC Cable Ordering Information
Example	AT-3BE833X-NNN¹ (Dielectric) AT-3BE83SX-NNN¹ (Metallic/Armored)
Part Number	AT-S1 S2 SF S3 S4 S5 S6 – NNN¹
S1	Fiber Selection. See S1 Fiber Table above
S2	Fiber Transmission Performance. See S2 Fiber Table above
SF	Fiber Type². See SF Fiber Table above
S3	Sheath Construction. 8 = All Central Core Products
S4	Cable Core Design. 3 = 12 Fibers per Ribbon AccuRibbon DC (≤ 216 Fibers) 4 = 24 Fibers per Ribbon AccuRibbon DC (≥ 240 Fibers)
S5	Sheath Design. 3 = Totally Dry All-Dielectric Dry-Core; S = Totall Dry Armored Dry-Core
S6	Central Core Oversheath. X = No Oversheath
NNN	Fiber Count = 002-864
Note	¹ Part Number shown is for standard AllWave ZWP attenuation and standard cable print: Maximum AllWave ZWP attenuation: 0.35/0.31/0.27/0.25/0.27 dB/km (1310/1385/1490/1550/1625 nm) Standard Print, example (AccuRibbon DC Dielectric Cable): LIGHTERA OPTICAL CABLE AT-3BE833X -NNN [MM-YY] [HANDSET SYMBOL] [NNN] F [SERIAL #] ² Contact Lightera Order Management for information on other cable variations, including additional fiber types, attenuation, and custom cable print. ³ Contact your Lightera Customer Care Representative on the positioning of ribbon requirements if TeraWave Fiber is being ordered.
For more information regarding typical attenuation as well as attenuation parameters on Link Design Value (LDV) (Maximum end-to-end link attenuation over a concatenated span), please see Lightera Application Note AN-111-A which can be downloaded at www.lightera.com or contact your Lightera representative.
