AccuRiser 200 µm Rollable Ribbon Fiber Optic Cable
Code -
06113-1
AccuRiser 200 µm Rollable Ribbon Fiber Optic Cable

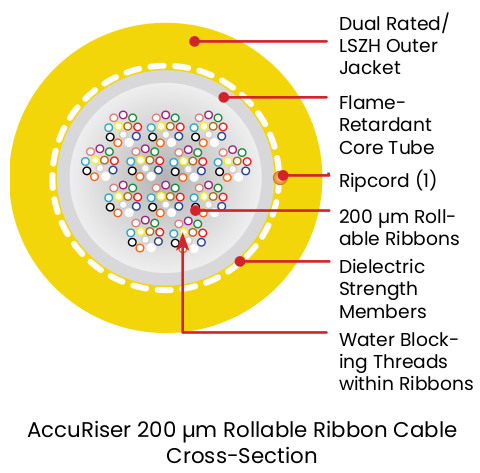

The AccuRiser 200 micron Rollable Ribbon (RR) Cable was specifically designed to offer high fiber density and excellent carrying capacity. The 200-micron single-mode fibers add additional compact, lighter weight cable features in the OFS rollable ribbon design for enhanced densification. These ribbons help enable highly efficient ribbon splicing and easy individual fiber breakout. The ribbon design may also be ‘rolled’ (compacted) and routed like individual fibers to facilitate use in smaller closures and splice trays.
The AccuRiser 200 micron Rollable Ribbon (RR) Cable was specifically designed to offer high fiber density and excellent carrying capacity. The 200-micron single-mode fibers add additional compact, lighter weight cable features in the OFS rollable ribbon design for enhanced densification. These ribbons help enable highly efficient ribbon splicing and easy individual fiber breakout. The ribbon design may also be ‘rolled’ (compacted) and routed like individual fibers to facilitate use in smaller closures and splice trays.
Product Name
Features
- OFS rollable ribbon technology Compact, flexible design
- Indoor/outdoor rated Highly crush-resistant central core
- Low Smoke/Zero Halogen (LSZH) materials
- Dual Flame Rating (OFNR and CPR rated)
- Meets or exceeds ICEA-S-696 Standard
- Fiber counts of 72 to 864
- Excellent water-penetration resistance
Benefits
- 200 µm rollable ribbons help enable smaller cable outer diameter (OD) and reduced weight versus traditional ribbon cable designs
- Optimized for fast, cost-effective mass fusion splicing
- Dual flame rating promotes global use and reduces regional code selection issues
- High fiber density helps save on valuable space
- Cable flexibility simplifies handling and installation
Product Description
The AccuRiser 200 micron Rollable Ribbon (RR) Cable was specifically designed to offer high fiber density and excellent carrying capacity. The 200-micron single-mode fibers add additional compact, lighter weight cable features in the OFS rollable ribbon design for enhanced densification. These ribbons help enable highly efficient ribbon splicing and easy individual fiber breakout. The ribbon design may also be ‘rolled’ (compacted) and routed like individual fibers to facilitate use in smaller closures and splice trays.
Why To Use It
Every element of the AccuRiser 200 micron Rollable Ribbon Cable was designed to offer high fiber density while helping to speed installation during a new data center or central office deployment. The 200 micron 12- or 16-fiber rollable ribbons allow splice-in-place operations that help to get a facility up and running quickly. This strong yet flexible cable helps to ease cable installation over ladder racking and through tight bends during the routing as well as smoothing and speeding installation. The compact design for enhanced densification also improves ladder rack utilization (more cables in the same space). The AccuRiser 200 micron Rollable Ribbon Cable is an excellent choice for building-to-building cable connections. This cable also removes the need to intermediate splice points for transitions from the outdoor environment to indoor use. Reducing the number of splices can help improve system loss and lower termination points within a network. This cable is also well suited for routing for terminations and frames as well aspreconnectorized applications.
Fiber Count
144
Key Standard
ICEA-696 I/O Rated
Cable Outer Diameter in. (mm)
0.36 in (9.0 mm)
Cable Weight lb/kft (kgm/km)
61 lb/kft (90.8 kgm/km)
Maximum Tensile Rating Lb
600 lb (2670 N)
Minimum Bend Diameter/Static Condition – in. (mm)
3.6 in (90 mm)
Dynamic Condition Loaded During Installation – in. (mm)
7.2 in (183 mm)
Storage Coil – in. (mm)
14 in (346 mm)
CPR Rating
Cca-s2, d1, a1
Fiber Count
288
Key Standard
ICEA-696 I/O Rated
Cable Outer Diameter in. (mm)
0.43 in (10.9 mm)
Cable Weight lb/kft (kgm/km)
64.0 lb/kft (95.0 kgm/km)
Maximum Tensile Rating Lb
600 lb (2670 N)
Minimum Bend Diameter/Static Condition – in. (mm)
4.3 in (109 mm)
Dynamic Condition Loaded During Installation – in. (mm)
8.6 in (218 mm)
Storage Coil – in. (mm)
17 in (436 mm)
CPR Rating
Cca-s1a, d1, a1
Fiber Count
432
Key Standard
ICEA-640 O/I Rated
Cable Outer Diameter in. (mm)
0.59 in (15.0 mm)
Cable Weight lb/kft (kgm/km)
161.0 lb/kft (239.0 kgm/km)
Maximum Tensile Rating Lb
600 lb (2670 N)
Minimum Bend Diameter/Static Condition – in. (mm)
5.9 in (150 mm)
Dynamic Condition Loaded During Installation – in. (mm)
11.8 in (300 mm)
Storage Coil – in. (mm)
23.6 in (600 mm)
CPR Rating
Cca-s1b, d1, a1
Fiber Count
864
Key Standard
ICEA-640 O/I Rated
Cable Outer Diameter in. (mm)
0.67 in (17.0 mm)
Cable Weight lb/kft (kgm/km)
180.0 lb/kft (269.0 kgm/km)
Maximum Tensile Rating Lb
600 lb (2670 N)
Minimum Bend Diameter/Static Condition – in. (mm)
6.7 in (170 mm)
Dynamic Condition Loaded During Installation – in. (mm)
13.4 in (340 mm)
Storage Coil – in. (mm)
26.8 in (640 mm)
CPR Rating
Cca-s1b, d1, a1
Performance Standard
The AccuRiser Rollable Ribbon Cable meets all or portionsof Telcordia GR-409/ICEA-S-83-696/ICEA-S-104-696/ICEA-S-115-730 and TIA-568. Riser-rated cables are UL®listed as compliant with NEC® Article 770 as type OFNR.
Temperature Installation
-4 °F to 140 °F (-20 °C to 60 °C)
Temperature Operation
-40 °F to 158 °F (-40 °C to 70 °C)
Temperature Storage
-40 °F to 158 °F (-40 °C to 70 °C)
Code
W
Single Mode Descriptor
AllWave FLEX+ ZWP Bend-Optimized Single-Mode Optical Fiber
Grade
G.657.A2
1310 Nm
0.4 (dB/km)
1550 Nm
0.3
Mca Z
4
Ordering Information
Example: 8RIO-288B-WDK-4-12-2001Short Description: 8RIO-NNNV-WXY-Z-UU-DDD
8RIO
AccuRiser 200 µm RR Indoor/Outdoor Cable
NNN
Fiber Count: 72, 96, 144, 288, 432, 576, or 864
V
Version (See Chart)
W
Fiber Type (See Chart)
X
Jacket Material (Flame Retardant)D = Dual Rated Low Smoke/Zero Halogen(UL 1666 and CPR Rated)
Y
Y = Jacket ColorK = BlackY = YellowT = Black with Two Yellow StripesA = Aqua
Z
Z = Maximum Cable Attenuation (See Chart)
UU
Fiber Groupings or Ribbon Type = 12 or 16
DDD
Fiber Outer Diameter = 200 µm
Note
Other colors available upon customer request.
Part Number Information
Part Number shown is for an AccuRiser 200 µm Rollable Ribbon Indoor/Outdoor Cable with 288 AllWave+ ZWP Fibers and standard cable print. OFS G.657.A2 I/O OPTICAL CABLE -C- 8RIO-288B-WDK-4-12-200 9/125 OFNG-FT4-ST1 c(UL) OFNR-ST1 LSZH CPR {MM/YY} {Lot No} {LENGTH IN FEET}
Phone Usa
1-888-fiberhelp (1-888-342-3743)
Phone Outside Usa
1-770-798-5555
Ofs Reserves
OFS reserves the right to make changes to the prices and product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any OFS warranties or specifications relating to any of its products or services.
