Code -
06748-01
AllWave® FLEX+ 900 µm PVC Buffered Optical Fiber
The Lightera 900 µm Tight-Buffered Allwave FLEX + Optical Fiber (G.657.A2) provides cost-effective solutions for a wide variety of applications in telecommunications networks and local area networks (LANs) where space is at a premium.
Valued for their ultra-small size, versatility and strength, the 900 µm Tight-Buffered Fibers have more than a 20-year proven record of providing excellent transmission performance and connectivity in a wide variety of networks. The rugged fiber can withstand the abuse of repeated handling in patch panels and communications closets, moves, changes, reconnects and tests without affecting performance.
Designed for easy, reliable deployment, the Tight-Buffered Fiber help enable savings on cabinet space; labor; equipment and storage; upgrade costs; fiber longevity; and installation time.
The 900 µm Tight-Buffered Fiber are typically used as pigtails for active and passive optical devices and for optical wiring in NICs where additional protection is desired for the optical fiber.
The Lightera 900 µm Tight-Buffered Allwave FLEX + Optical Fiber (G.657.A2) provides cost-effective solutions for a wide variety of applications in telecommunications networks and local area networks (LANs) where space is at a premium.
Valued for their ultra-small size, versatility and strength, the 900 µm Tight-Buffered Fibers have more than a 20-year proven record of providing excellent transmission performance and connectivity in a wide variety of networks. The rugged fiber can withstand the abuse of repeated handling in patch panels and communications closets, moves, changes, reconnects and tests without affecting performance.
Designed for easy, reliable deployment, the Tight-Buffered Fiber help enable savings on cabinet space; labor; equipment and storage; upgrade costs; fiber longevity; and installation time.
The 900 µm Tight-Buffered Fiber are typically used as pigtails for active and passive optical devices and for optical wiring in NICs where additional protection is desired for the optical fiber.
Features And Benefits
- Ultra-small and durable fiber, ideal for a variety of installation environments
- Save on space, allowing more cross-connects and/or interconnects in the same area
- Cladding diameter (125 ± 1 µm) helps eliminate the need to rework connectors and splices
- May be terminated with any type/size connector, saving on equipment and storage
- Reduces upgrade costs (only the electronics must be changed)
- Available in many buffer colors
Overview
The Lightera 900 µm Tight-Buffered Allwave FLEX + Optical Fiber (G.657.A2) provides cost-effective solutions for a wide variety of applications in telecommunications networks and local area networks (LANs) where space is at a premium.
Valued for their ultra-small size, versatility and strength, the 900 µm Tight-Buffered Fibers have more than a 20-year proven record of providing excellent transmission performance and connectivity in a wide variety of networks. The rugged fiber can withstand the abuse of repeated handling in patch panels and communications closets, moves, changes, reconnects and tests without affecting performance.
Designed for easy, reliable deployment, the Tight-Buffered Fiber help enable savings on cabinet space; labor; equipment and storage; upgrade costs; fiber longevity; and installation time.
The 900 µm Tight-Buffered Fiber are typically used as pigtails for active and passive optical devices and for optical wiring in NICs where additional protection is desired for the optical fiber.

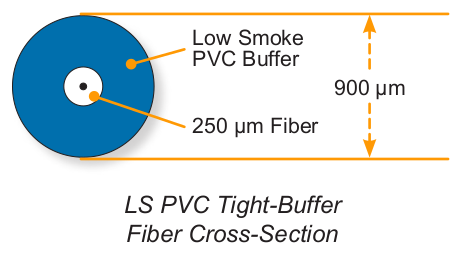

Product Specifications
| Product Specifications | |
|---|---|
| Physical Characteristics | |
| Optical Fiber | AllWave FLEX+ G.657.A2 Zero Water Peak Bend-Optimized |
| Fiber Proof Test | ≥ 100 kpsi |
| Cladding Diameter | 125 µm |
| Coating Diameter | 245 µm |
| Buffer Material | LS PVC |
| Buffer Diameter | 900 µm |
| Optical Characteristics |
|
| Buffer Attenuation @ 1310 nm | 0.50 dB/km |
| Buffer Attenuation @ 1550 nm | 0.40 dB/km |
| Mode Field Diameter @ 1310 nm | 8.4 – 9.2 µm |
| Mode Field Diameter @ 1550 nm | 10.0 µm |
| Mechanical and Environmental |
|
| Operating Temperature | -20 to +70 ºC |
| Environmentally Friendly | RoHS Compliant and Heavy Metal Free |
Ordering Information
| Ordering Information | ||
|---|---|---|
| Part Number | Description | Buffer Color |
| C81261-Blue | AllWave Flex+ 900µm LS PVC Tight Buffer | Blue |
| C81261-Orange | AllWave Flex+ 900µm LS PVC Tight Buffer | Orange |
| C81261-Green | AllWave Flex+ 900µm LS PVC Tight Buffer | Green |
| C81261-Brown | AllWave Flex+ 900µm LS PVC Tight Buffer | Brown |
| C81261-Slate (Gray) | AllWave Flex+ 900µm LS PVC Tight Buffer | Slate |
| C81261-White | AllWave Flex+ 900µm LS PVC Tight Buffer | White |
| C81261-Red | AllWave Flex+ 900µm LS PVC Tight Buffer | Red |
| C81261-Black | AllWave Flex+ 900µm LS PVC Tight Buffer | Black |
| C81261-Yellow | AllWave Flex+ 900µm LS PVC Tight Buffer | Yellow |
Contact Information
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.
Trademark Notice and Disclaimer
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
