AllWave One Fiber performs reliably in demanding networks with specifications superior to both ITU-T G652.D and G657.A1. With an attenuation ≤ 0.33 dB/km at 1310 nm and ≤ 0.18 dB/km at 1550 nm, this fiber provides extra margin and/or extended reach for demanding applications.
AllWave One Fiber bends to the needs to challenging Outside Plant (OSP) networks. With a minimum bend radius of 10 mm and 80% lower bend loss than conventional G.652.D fiber, this fiber helps to increase the reliability and reach of applications in the bend-sensitive 1460 nm – 1625 nm bands. AllWave One Fiber has the same 9.2 µm mode field diameter and is completely backward compatible with the installed base of conventional single-mode fibers for seamless splicing and faster testing.
AllWave One Fiber performs reliably in demanding networks with specifications superior to both ITU-T G652.D and G657.A1. With an attenuation ≤ 0.33 dB/km at 1310 nm and ≤ 0.18 dB/km at 1550 nm, this fiber provides extra margin and/or extended reach for demanding applications.
AllWave One Fiber bends to the needs to challenging Outside Plant (OSP) networks. With a minimum bend radius of 10 mm and 80% lower bend loss than conventional G.652.D fiber, this fiber helps to increase the reliability and reach of applications in the bend-sensitive 1460 nm – 1625 nm bands. AllWave One Fiber has the same 9.2 µm mode field diameter and is completely backward compatible with the installed base of conventional single-mode fibers for seamless splicing and faster testing.
AllWave One Fiber provides outstanding cable performance for the entire opticla network including:
AllWave One Zero Water Peak (ZWP) Single-Mode Optical Fiber combines three benefits in one fiber to help improve network performance over conventional single-mode fibers. This fiber goes beyond award-winning AllWave Fiber with a 15% lower loss specification at 1550 nm, a 40% smaller minimum bend radius, a 67% lower bend loss and a 33% improved Polarization Mode Dispersion (PMD) link design value.
AllWave One Fiber performs reliably in demanding networks with specifications superior to both ITU-T G652.D and G657.A1. With an attenuation ≤ 0.33 dB/km at 1310 nm and ≤ 0.18 dB/km at 1550 nm, this fiber provides extra margin and/or extended reach for demanding applications.
AllWave One Fiber bends to the needs to challenging Outside Plant (OSP) networks. With a minimum bend radius of 10 mm and 80% lower bend loss than conventional G.652.D fiber, this fiber helps to increase the reliability and reach of applications in the bend-sensitive 1460 nm – 1625 nm bands. AllWave One Fiber has the same 9.2 µm mode field diameter and is completely backward compatible with the installed base of conventional single-mode fibers for seamless splicing and faster testing.
| Product Specifications | ||
|---|---|---|
| Physical Characteristics | ||
| Clad Diameter | 125.0 ± 0.7 μm | |
| Clad Non-Circularity | ≤ 0.7 % | |
| Core/Clad Concentricity Error (Offset) | ≤ 0.5 μm, < 0.2 μm typically | |
| Coating Diameter (Uncolored) | 237 – 247 µm | |
| Coating-Clad Concentricity Error (Offset) | ≤ 12 μm | |
| Tensile Proof Test | 100 kpsi (0.69 GPa) | |
| Coating Strip Force | Range: 1.0 N ≤ CSF ≤ 8.9 N | |

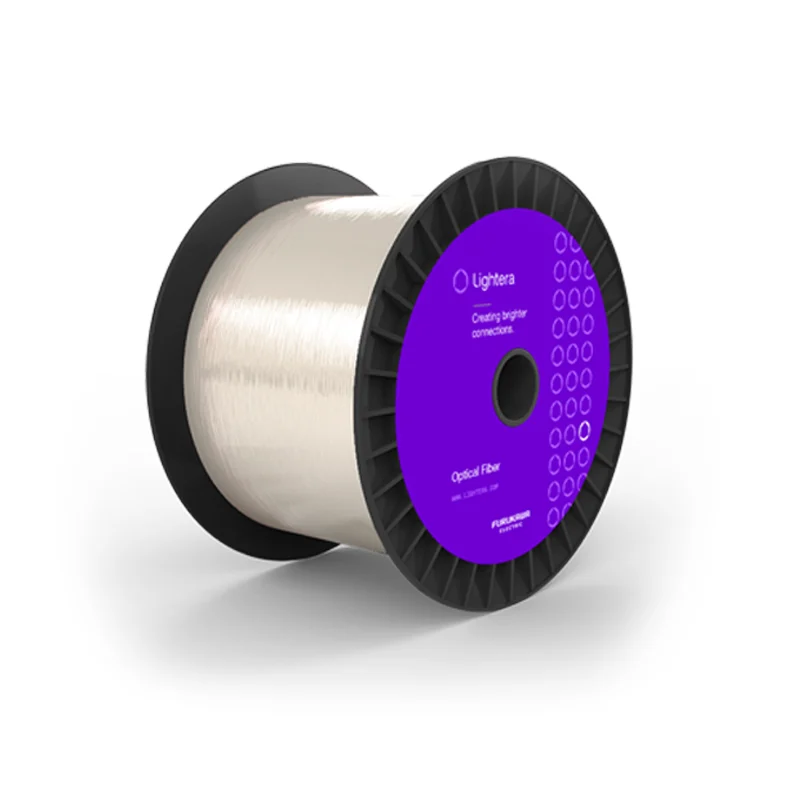

| Standard Reel Lengths | 50.4 km (31.3 miles) | |
| Optical Characteristics | ||
| Maximum Attenuation at 1310 nm | ≤ 0.33 dB/km | |
| Maximum Attenuation at 1385 nm | ≤ 0.31 dB/km | |
| Maximum Attenuation at 1490 nm | ≤ 0.21 dB/km | |
| Maximum Attenuation at 1550 nm | ≤ 0.18 dB/km | |
| Maximum Attenuation at 1625 nm | ≤ 0.20 dB/km | |
| Attenuation Uniformity / Point Discontinuities at 1310 nm and 1550 nm | ≤ 0.05 dB | |
| Chromatic Dispersion | ||
| Zero Dispersion Wavelength (λ0) | 1302 – 1322 nm | |
| Zero Dispersion Slope (S0) | ≤ 0.090 ps/nm²-km | |
| Typical Dispersion Slope | 0.087 ps/nm²-km | |
| Cut-off Wavelength (λcc) | ≤ 1260 nm | |
| Group Refractive Index at 1310 nm | 1.467 | |
| Group Refractive Index at 1550 nm | 1.468 | |
| Mode Field Diameter at 1310 nm | 9.2 ± 0.4 µm | |
| Mode Field Diameter at 1550 nm | 10.4 ± 0.5 µm (typical) | |
| Polarization Mode Dispersion (PMD)² | ||
| Fiber PMD Link Design Value (LDV)³ | ≤ 0.04 ps/√km | |
| Maximum Individual Fiber | ≤ 0.1 ps/√km | |
| Typical Fiber LMC PMD | ≤ 0.02 ps/√km | |
| Note | ² As measured with low mode coupling (LMC) technique in fiber form, value may change when cabled. Check with your cable manufacturer for specific PMD limits in cable form.
³ The PMD Link Design Value complies with IEC 60794-3, September 2001 (N = 20, Q = 0.01%). Details are described in IEC 61282-3 TR Ed 2, October 2006. |
|
| Attenuation vs. Wavelength¹ | ||
|---|---|---|
| Range (nm) | Reference (nm) λ | α |
| 1285 – 1330 | 1310 | 0.03 |
| 1360 – 1480 | 1385 | 0.04 |
| 1525 – 1575 | 1550 | 0.02 |
| 1460 – 1625 | 1550 | 0.04 |
| ¹ The attenuation in a given wavelength range does not exceed the attenuation of the reference wavelength (λ) by more than the value α. | ||
| Macrobending Attenuation | ||
|---|---|---|
| The maximum attenuation with bending does not exceed the specified values under the following deployment conditions: |
||
| Deployment Condition |
Wavelength
|
Induced Attenuation |
| 1 turn on a 10 mm radius mandrel | 1550 nm | ≤ 0.50 dB |
| 1 turn on a 10 mm radius mandrel | 1625 nm | ≤ 1.0 dB |
| 10 turns on a 15 mm radius mandrel | 1550 nm | ≤ 0.05 dB |
| 10 turns on a 15 mm radius mandrel | 1625 nm | ≤ 0.30 dB |
| 100 turns on 25 & 30 mm radius mandrels | 1550 nm | ≤ 0.03 dB |
| 100 turns on 25 & 30 mm radius mandrels | 1625 nm | ≤ 0.03 dB |
| Environmental Characteristics (at 1310, 1550 & 1625 nm) | |
|---|---|
| Temperature Cycling (-60 + 85 °C) | ≤ 0.05 dB/km |
| High Temperature Aging (85 ± 2 °C) | ≤ 0.05 dB/km |
| Temperature & Humidity Cycling (at -10 ºC to +85 ºC and 85 to ~98% RH) | ≤ 0.05 dB/km |
| Water Immersion (23 ± 2 °C) | ≤ 0.05 dB/km |
| Dynamic Fatigue Stress Corrosion Parameter (nd) | ≥ 20 |
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
