Descontinuado
Code - 06722-01

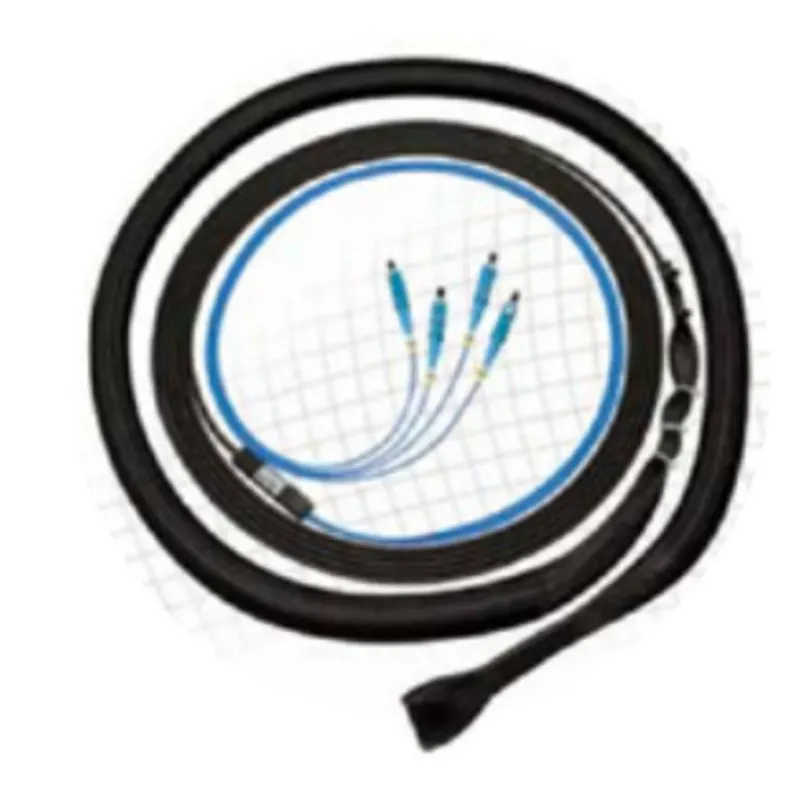

Cell Site (CS) Pluggable Drop Cable

The CS Pluggable Drop Cable is a factory connectorized assembly featuring AccuDRY Indoor/Outdoor Cables with SC or LC connectors mounted on one or both ends. Available with 4, 6, 8 and 12 fibers, these assemblies are factory terminated to help ensure high quality and reliability with low insertion loss, while providing easy field termination that can speed up deployment and lower installation costs.

The assemblies are designed for quick deployment in conduits, and plug and play into the cell site equipment. They are shipped with a pulling eye, and factory-mounted and tested low-loss connectors. The pulling eye on the outside end provides a means of rapidly installing the cable while protecting the connectors and enabling a pulling force of up to 100 lbs.

The CS Pluggable Drop Cable features bend-optimized AllWave FLEX+ ZWP Optical Fiber in the AccuDRY Cables. AllWave FLEX+ ZWP Fiber provides improved performance in tight installations and low installed loss over the full range of wavelengths. The AccuDRY Indoor/Outdoor Cable can transition from outdoors into hubs, cabinets and pedestal applications, and is riser-rated to be run through buildings if necessary.

The CS Pluggable Drop Cable is a factory connectorized assembly featuring AccuDRY Indoor/Outdoor Cables with SC or LC connectors mounted on one or both ends. Available with 4, 6, 8 and 12 fibers, these assemblies are factory terminated to help ensure high quality and reliability with low insertion loss, while providing easy field termination that can speed up deployment and lower installation costs.

The assemblies are designed for quick deployment in conduits, and plug and play into the cell site equipment. They are shipped with a pulling eye, and factory-mounted and tested low-loss connectors. The pulling eye on the outside end provides a means of rapidly installing the cable while protecting the connectors and enabling a pulling force of up to 100 lbs.

The CS Pluggable Drop Cable features bend-optimized AllWave FLEX+ ZWP Optical Fiber in the AccuDRY Cables. AllWave FLEX+ ZWP Fiber provides improved performance in tight installations and low installed loss over the full range of wavelengths. The AccuDRY Indoor/Outdoor Cable can transition from outdoors into hubs, cabinets and pedestal applications, and is riser-rated to be run through buildings if necessary.

Features And Benefits

Fast and Easy Installation

  • The assembly can eliminate or reduce field splicing using factory mounted high performance connectors
  • Standard single fiber connectors plug into standard SC or LC ports
  • Faster, easier reliable cable pull
  • Flexible lightweight cable
  • Pulling sock removable in less than 1 minute
  • No fusion equipment or power needed

Reliable Installation

  • AccuDRY Indoor/Outdoor Riser Rated Cable provides dependable, fast installation
  • Protective pulling sock rated at 100 lbs. max tension
  • Bulk cable tension max. 300 lbs.

Reliable Service

  • Features bend-optimized AllWave FLEX+ Fiber and factory installed connectors
  • Compliant with relevant Telcordia, ICEA, IEEE 802(s), TIA, and IEC standards
  • If field splicing is preferred, FITEL Fusion Splice on Connectors (SOC) avoid risks of mechanical splice on connectors

Secure Deployment

  • Standard connectors fit in box; no exposed OSP connectors

Compact Packing

  • 75% smaller slack storage vs. most conventional OSP drop cable
  • Splice storage eliminated with FITEL fusion splice on connectors

Overview

The CS Pluggable Drop Cable is a factory connectorized assembly featuring AccuDRY Indoor/Outdoor Cables with SC or LC connectors mounted on one or both ends. Available with 4, 6, 8 and 12 fibers, these assemblies are factory terminated to help ensure high quality and reliability with low insertion loss, while providing easy field termination that can speed up deployment and lower installation costs.

The assemblies are designed for quick deployment in conduits, and plug and play into the cell site equipment. They are shipped with a pulling eye, and factory-mounted and tested low-loss connectors. The pulling eye on the outside end provides a means of rapidly installing the cable while protecting the connectors and enabling a pulling force of up to 100 lbs.

The CS Pluggable Drop Cable features bend-optimized AllWave FLEX+ ZWP Optical Fiber in the AccuDRY Cables. AllWave FLEX+ ZWP Fiber provides improved performance in tight installations and low installed loss over the full range of wavelengths. The AccuDRY Indoor/Outdoor Cable can transition from outdoors into hubs, cabinets and pedestal applications, and is riser-rated to be run through buildings if necessary.

Connector Performance

Connector Performance
Property SC Connector LC


CS Pluggable Drop Cable

Accudry Overview

The AccuDRY Cable is a lightweight, compact indoor/outdoor cable that uses 900 µm tight buffered fiber for robust, direct termination with connectors. An UV-resistant flame-retardant jacking and water-swellable aramid reinforcements allow its use in outdoor environment, avoiding the need for splicing at building entrances.

AccuDry Riser-Rated Cable with AllWave® FLEX Single-mode Fiber

AccuDry Riser-Rated Cable with AllWave® FLEX Single-mode Fiber
Part Number Fiber Count Maximum Tensile Rating Nominal Diameter Nominal Weight Max. Attenuation, 1310 Nm Max. Attenuation, 1550 Nm
LGIO-004E-WRK 4 300 lb. (1330 N) 4.65 ± 0.2 mm 17.2 kg/km 0.4 dB/km 0.3 dB/km
LGIO-006E-WRK 6 300 lb. (1330 N) 5.0 ± 0.2 mm 22.5 kg/km 0.4 dB/km 0.3 dB/km
LGIO-008E-WRK 8 300 lb. (1330 N) 6.0 ± 0.2 mm 27.3 kg/km 0.4 dB/km 0.3 dB/km
LGIO-012E-WRK 12 300 lb. (1330 N) 6.7 ± 0.2 mm 38.9 kg/km 0.4 dB/km 0.3 dB/km

Pluggable Drop Cable Ordering Scheme

Pluggable Drop Cable Ordering Scheme
Example LPC2-W-LCUSCU-IO9R-008-300F-CELLv1
Part Number LPC2-7-XXXYYY-IO9R-ZZZ-NNNF-CELLv1
LPC2 Special Designed Cable
W AllWave FLEX+ ZWP Optical Fiber
XXXYYY Inside end/outside end connectors available in LCU, SCU, LCA and SCA
IO9R AccuDry Indoor/Outdoor Cable 900 µm tight buffered fiber which is up-jacketed to 2.0 mm cordage
ZZZ Fiber Count: 004, 006, 008, 012
NNN Length: Available in a wide range of lengths measured butt to butt in feet
F Length unit designator (feet)
Cellv1 Defines the specifics of the LPC2 with breakout lengths of 36 inches staggered connectors in groups of 2 fibers with a pulling eye on the outside end and a protective cover on the inside end

Contact Information

For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.

Trademark Notice and Disclaimer

Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
