- Wavelength flexibility from 1 to 1.8 µm
- 3 and 10W versions available
- Compact OEM module for rapid integration
- Single-mode fiber output
Code -
06761-01
Compact OEM 3W Raman Cavities
Development of the new 3 and 10 W Raman Fiber Laser Module was driven by increasing demand for reliable single mode light sources over a broad wavelength range for a wide variety of Telecom, Medical, industrial and scientific applications.
The Raman Fiber Laser Module builds upon Lightera capabilities in kilowatt fiber laser production for the industrial machining and welding market. Lightera, a global market leader in the design and manufacture of rare-earth doped fibers, possess the expertise and experience in fiber fabrication necessary to meet that demand. Lightera has been developing and manufacturing high-power components and modules for many years and understands the reliability standards expected in the diverse material processing applications.
Development of the new 3 and 10 W Raman Fiber Laser Module was driven by increasing demand for reliable single mode light sources over a broad wavelength range for a wide variety of Telecom, Medical, industrial and scientific applications.
The Raman Fiber Laser Module builds upon Lightera capabilities in kilowatt fiber laser production for the industrial machining and welding market. Lightera, a global market leader in the design and manufacture of rare-earth doped fibers, possess the expertise and experience in fiber fabrication necessary to meet that demand. Lightera has been developing and manufacturing high-power components and modules for many years and understands the reliability standards expected in the diverse material processing applications.
Features And Benefits
Overview
Development of the new 3 and 10 W Raman Fiber Laser Module was driven by increasing demand for reliable single mode light sources over a broad wavelength range for a wide variety of Telecom, Medical, industrial and scientific applications.
The Raman Fiber Laser Module builds upon Lightera capabilities in kilowatt fiber laser production for the industrial machining and welding market. Lightera, a global market leader in the design and manufacture of rare-earth doped fibers, possess the expertise and experience in fiber fabrication necessary to meet that demand. Lightera has been developing and manufacturing high-power components and modules for many years and understands the reliability standards expected in the diverse material processing applications.
Typical Applications
- High Brightness Fiber Laser Pumping
- Frequency Conversion
- Telecom – Distributed Amplification
- Test and Measurement
- EDFA and Raman Amplifier Pumping
- Medical Applications
Product Specifications
| Product Specifications | |
|---|---|
| Product | 7008002-XXXX-XX |
| Performance | |
| Operating Wavelength | 1 – 1.8 µm |
| Output Power (CW) | 3W |
| Inband % Power at Operating Wavelength (Typical > 92%) | Wavelength Dependent |
| Beam Quality | Single-mode Output Beam |
| Optical Fibers | |
| Pump Fiber Legs | |
| Number of Pump Fiber Legs | 7 |
| Fiber Type | 0.15 NA / 105 µm core / 125 µm cladding (Dual coat, high index acrylate coating) |
| Fiber Length (m) | ≥ 1 |
| Output Fiber | |
| Fiber Type | SMF-28e |
| Fiber Length (m) | ≥ 1 |
| Optional | AR-coated, high power, FC/APC end termination pigtail available |
| Pump Diode Requirements | |
| Fiber Type | |
| Cladding Diameter | 105/125 µm |
| Numerical Aperture Pigtail Fiber | 0.15 |
| Parameters | |
| Center Wavelength | 915 nm |

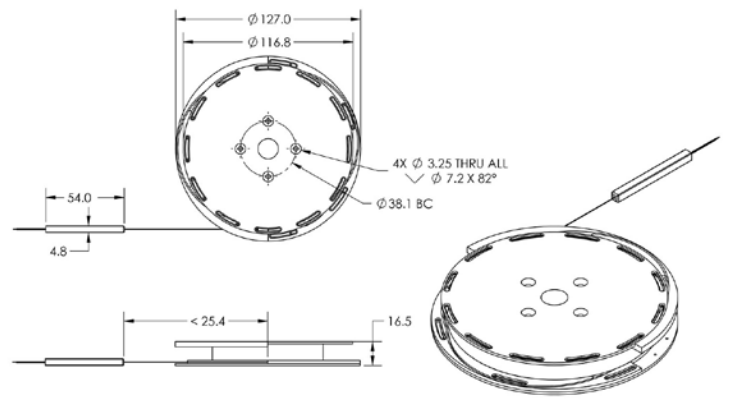

| Mechanical | |
| Spool Diameter | 5 inch |
| Spool Height | 0.65 inch |
Contact Information
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.
Trademark Notice and Disclaimer
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
