- Good beam characteristics
- High efficiency
- Compact footprint
- Superior reliability and quality
Code -
06753-01
ErYb 10/128 P Dual Cladding Optical Fiber
eryb 10/128 p dual cladding optical fiber
eryb 10/128 p dual cladding optical fiber
Features
Typical Applications
- Optical amplifiers operating in 1550 nm range, multi-watt output power
- CATV amplifiers
- Amplifiers for free space communication
- LIDAR
Product Specifications
| Product Specifications | |
|---|---|
| Product Description | ErYb 10/128 P Dual Cladding Optical Fiber |
| Optical Parameters | |
| Operating Wavelength | 1535 – 1565 nm |
| Core Properties | |
| Numerical Aperture | 0.10 – 0.13 |
| Mode Field Diameter @ 1550 nm | 9.6 – 12.0 µm |
| Absorption @ 1535 nm | 65 ± 15 dB/m |
| Cladding Properties | |
| Numerical Aperture | ≥ 0.45 |
| Absorption @ 915 nm | 4 ± 1 dB/m |
| Background Loss @ 1150 nm | < 20 dB/km |
| Physical Characteristics | |
| Core Diameter | 10 µm |
| Cladding Diameter, Flat-to-Flat | 128 ± 1.5 µm |
| Coating Diameter | 250 ± 15 µm |

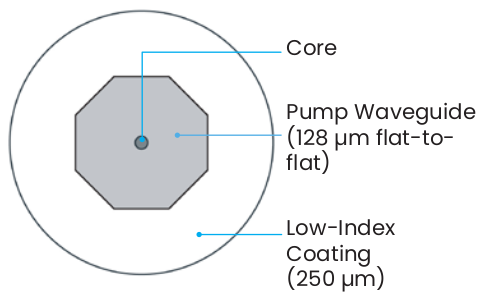

| Fiber Geometry | Octagonal, Dual Cladding |
| Mechanical and Environmental | |
| Tensile Proof Test | 0.69 Gpa (100 kpsi) |
| Coating Material | TrueClad™ Low Index |
| Other Information | |
| Order by Part Number | 87822 |
| Product Description | ErYb 10/128 P Dual Cladding Optical Fiber |
| Regulatory Compliance | REACH and RoHS Compliant |
| Quality Certification | ISO 9001 Certified |
Contact Information
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.
Trademark Notice and Disclaimer
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
