- Factory connectorized, pre-tested, and ready to use
- No need for special tools and associated apparatus
- Can be deployed immediately
Code -
06819-01

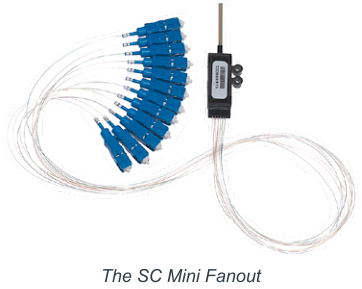

Fiber Optic Mini Fanouts Quickly and Easily Facilitates the Transition of Cable Ribbon
Fanouts are used provide a fast and easy transition from single-mode or multimode cable ribbon to twelve individual fiber connection ports.

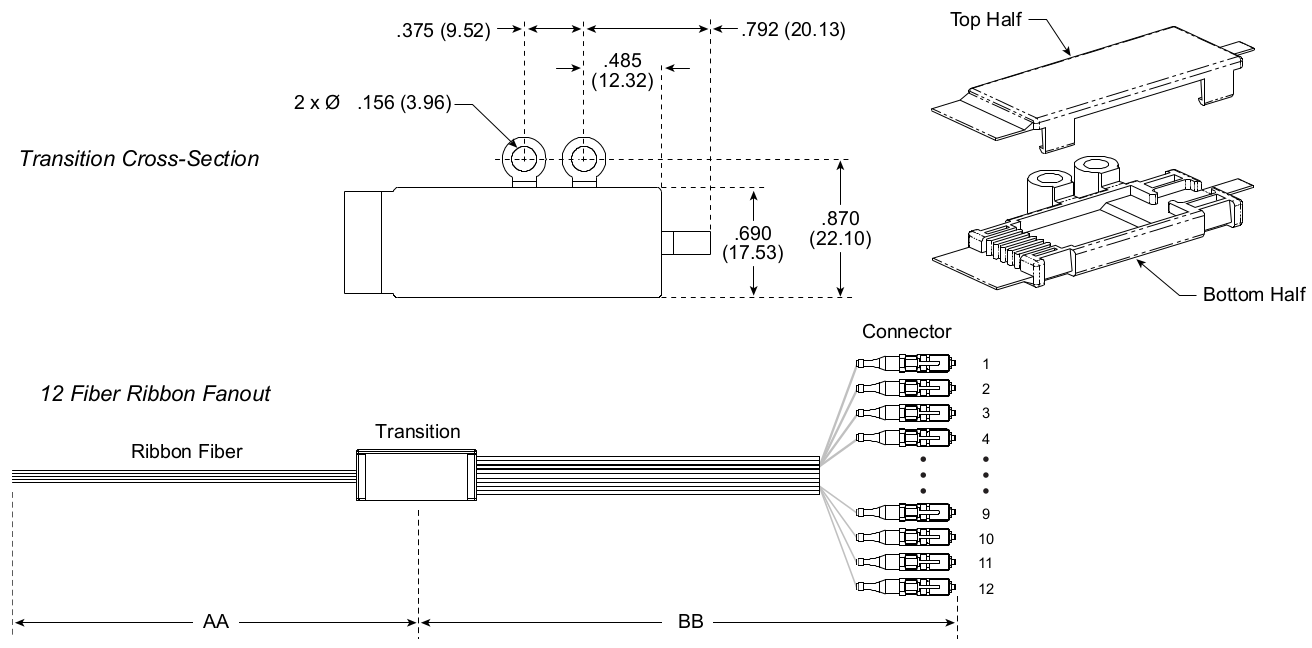

Mini fanouts consist of a 72 inch (182.8 cm) long ribbon, a transition assembly, and 12 individual fibers attached to a variety of fiber optic cable connectors in either 24 or 48 inch (61 or 121.9 cm) lengths. Used in fiber distribution shelves and interconnect units, the individual fibers of this fanout are strengthened with a special buffer for added protection.
Mini fanouts eliminate tedious individual fiber splicing and connectorization. The need for special tools and associated apparatus, and the need for testing at distribution points is also reduced – saving time and money.
Fanouts are used provide a fast and easy transition from single-mode or multimode cable ribbon to twelve individual fiber connection ports.
Mini fanouts consist of a 72 inch (182.8 cm) long ribbon, a transition assembly, and 12 individual fibers attached to a variety of fiber optic cable connectors in either 24 or 48 inch (61 or 121.9 cm) lengths. Used in fiber distribution shelves and interconnect units, the individual fibers of this fanout are strengthened with a special buffer for added protection.
Mini fanouts eliminate tedious individual fiber splicing and connectorization. The need for special tools and associated apparatus, and the need for testing at distribution points is also reduced – saving time and money.
Features
Benefits
- Provides our customers with application flexibility
- Saves time and money since only one splice is required for twelve connections
- Utilizes high quality connectors and terminations
Product Description
Fanouts are used provide a fast and easy transition from single-mode or multimode cable ribbon to twelve individual fiber connection ports.
Mini fanouts consist of a 72 inch (182.8 cm) long ribbon, a transition assembly, and 12 individual fibers attached to a variety of fiber optic cable connectors in either 24 or 48 inch (61 or 121.9 cm) lengths. Used in fiber distribution shelves and interconnect units, the individual fibers of this fanout are strengthened with a special buffer for added protection.
Mini fanouts eliminate tedious individual fiber splicing and connectorization. The need for special tools and associated apparatus, and the need for testing at distribution points is also reduced – saving time and money.
Applications
Mini fanouts provide an easy transition from single-mode or multimode cable ribbon to twelve individual fiber connection ports in:
- Central offices
- Private network distribution
- Local area networks
Ordering Information
| Ordering Information |
||||
|---|---|---|---|---|
| Comcode |
Connector Type
|
Fiber Type |
Length From Transition To: Ribbon End |
Length From Transition To: Connector End |
| Fanouts | ||||
| 107 977 019 | LC | MM | 72 – 78 | 24 ± 3 |
| 108 518 754 | LC | SM | 72 – 78 | 24 ± 3 |
| 300 465 606 | LCA | SM | 39 – 42 | 12 ± 3 |
| 300 542 015 | LCA | SM | 72 – 78 | 24 ± 3 |
| 107 810 541 | SC | SM | 72 – 78 | 24 ± 3 |
| 300 418 811 | SC | SM | 72 – 78 | 24 ± 3 |
| 109 030 445 | SCA | SM | 72 – 78 | 24 ± 3 |
| 300 535 838 | SCA | SM | 57 – 60 | 12 ± 3 |
| 108 905 647 | ST | MM | 72 – 78 | 24 ± 3 |
| 108 370 065 | SC | MM | 72 – 78 | 24 ± 3 |
| 107 939 910 | ST (P3020) | SM | 72 – 78 | 24 ± 3 |
| Fiber Transition | ||||
| 106 218 597 | 12 Fiber Transition Piece (pkg of 25) | |||
Contact Information
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.
Trademark Notice and Disclaimer
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
