Code -
07052-01

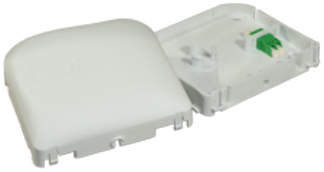

InvisiLight® 02F Adapter Module
Lightera offers an InvisiLight® 02 Fiber version module which is provided with an internal duplex LC adapter. The InvisiLight ILU 02F kit includes:
• A module for storing the remaining fiber in the spool;
• InvisiLight Spool unconnectorized or connectorized on the inside ends with a uniboot duplex LC connector. The maximum spool length is up to 30 meters;
• Six (6) outside corner bend limiters;
• Six (6) inside corner bend limiters;
• Four (4) wall plugs and caps
• One (1) through-the-wall tool
Lightera offers an InvisiLight® 02 Fiber version module which is provided with an internal duplex LC adapter. The InvisiLight ILU 02F kit includes:
• A module for storing the remaining fiber in the spool;
• InvisiLight Spool unconnectorized or connectorized on the inside ends with a uniboot duplex LC connector. The maximum spool length is up to 30 meters;
• Six (6) outside corner bend limiters;
• Six (6) inside corner bend limiters;
• Four (4) wall plugs and caps
• One (1) through-the-wall tool
Features And Benefits
- Easy installation: indoor wall mount installable;
- Handles 1.2mm InvisiLight Optical Fiber and the slack management InvisiLight spool;
- Standardized spool drum design enhances compatibility with the current 01F version;
- Uses the same adhesive of the ILU 01F or MDU versions;
- RoHS compliant: free from heavy metals and environmentally friendly
Product Description
Lightera offers an InvisiLight® 02 Fiber version module which is provided with an internal duplex LC adapter. The InvisiLight ILU 02F kit includes:
• A module for storing the remaining fiber in the spool;
• InvisiLight Spool unconnectorized or connectorized on the inside ends with a uniboot duplex LC connector. The maximum spool length is up to 30 meters;
• Six (6) outside corner bend limiters;
• Six (6) inside corner bend limiters;
• Four (4) wall plugs and caps
• One (1) through-the-wall tool
Product Characteristics
| PRODUCT CHARACTERISTICS | |
|---|---|
| Module Dimensions | 4.96" (L) X 4.53" (H) X 1.41" (D) |
| Adapter Capacity | Up to 1 LC duplex adapter |
| Module Color | White |
| Installation | Indoor Wall Mount Outlet |
| Slack Storage | Yes, inside the module |
| Maximum Spool Length | Up to 30 meters |
| Operating Temperature | -40 to +85 °C |
| Storage Temperature | -40 to +85 °C |
| Attenuation Loss (maximum) | LC APC: 0.30 dB; LC UPC: 0.25 dB |
| Return Loss | APC ≥65 dB; UPC ≥55 dB |
Ordering Information
| ORDERING INFORMATION | ||
|---|---|---|
| Comcode | Product Code | Description |
| 301135760 | NVSLGHTC-D-UNCUNC-02-MODULE KIT-30M-1 | InvisiLight 02F kit with a 30 meter unconnectorized spool |
| 301135778 | NVSLGHTC-D-UNCUNC-02-MODULE KIT-20M-1 | InvisiLight 02F kit with a 20 meter unconnectorized spool |
| 301137196 | NVSLGHTC-D-LA1UNC-02-MODULE KIT-30M-1 | InvisiLight 02F kit with a 30 meter connectorized spool on the inside end with a uniboot duplex LCA connector |
| 301137204 | NVSLGHTC-D-LA1UNC-02-MODULE KIT-20M-1 | InvisiLight 02F kit with a 20 meter connectorized spool on the inside end with a uniboot duplex LCA connector |
| 301137212 | NVSLGHTC-D-LASUNC-02-MODULE KIT-30M-1 | InvisiLight 02F kit with a 30 meter connectorized spool on the inside end with a simplex LCA short boot connector |
| 301137220 | NVSLGHTC-D-LASUNC-02-MODULE KIT-20M-1 | InvisiLight 02F kit with a 20 meter connectorized spool on the inside end with a simplex LCA short boot connector |
| LA1 = Uniboot Duplex 1.2 LCA connector | ||
Contact Information
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.
