Descontinuado
Code - 07205-01

MiDia® 200 Micro FX Cable

Lightera developed the MiDia 200 Micro FX Cable to help meet the challenges of an ever-increasing demand for higher bandwidth and fiber capacity along with the growing physical congestion in underground duct systems. This latest-generation cabling solution can help take metro networks to the next level with increased fiber density, enhanced performance and significantly greater deployment cost savings.

The MiDia 200 Micro FX Cable capitalizes on Lightera enhancements in optical fiber, leading to the development of 200 micron bend-optimized fibers. These bend-optimized AllWave FLEX ZWP and AllWave FLEX+ ZWP Fibers require 36 percent less area than conventional 250 micron coated fibers, enabling reduced diameter cables with a higher fiber count per tube. Lightera 200 micron AllWave+ fiber with 9.2 micron mode field diameter offers seamless splicing, testing and faster network turn-up.

Lightera developed the MiDia 200 Micro FX Cable to help meet the challenges of an ever-increasing demand for higher bandwidth and fiber capacity along with the growing physical congestion in underground duct systems. This latest-generation cabling solution can help take metro networks to the next level with increased fiber density, enhanced performance and significantly greater deployment cost savings.

The MiDia 200 Micro FX Cable capitalizes on Lightera enhancements in optical fiber, leading to the development of 200 micron bend-optimized fibers. These bend-optimized AllWave FLEX ZWP and AllWave FLEX+ ZWP Fibers require 36 percent less area than conventional 250 micron coated fibers, enabling reduced diameter cables with a higher fiber count per tube. Lightera 200 micron AllWave+ fiber with 9.2 micron mode field diameter offers seamless splicing, testing and faster network turn-up.

Features And Benefits

  • Helps maximize fiber capacity and performance
  • Lightera 200 micron bend-optimized fibers for a smaller diameter, high-performance microcable (fibers meet or exceed ITU-T G.657. A1/A2 and IEC 60793-2-50 B-657.A1/A2 standards
  • Helps to lower deployment costs and eliminate the need for excavation and procuring costly rights-of-way
  • Lightera 200 micron AllWave®+ fiber with 9.2 micron mode field diameter offers seamless splicing, testing and faster network turn-up
  • Fiber counts of 144, 192, and 288
  • May help reduce the number of fiber optic cables needed
  • Helps to achieve longer air-blown installation distances
  • Meets IEC 60794-1-2 and IEC 60794-5 for reliable performance

Product Description

Lightera developed the MiDia 200 Micro FX Cable to help meet the challenges of an ever-increasing demand for higher bandwidth and fiber capacity along with the growing physical congestion in underground duct systems. This latest-generation cabling solution can help take metro networks to the next level with increased fiber density, enhanced performance and significantly greater deployment cost savings.

The MiDia 200 Micro FX Cable capitalizes on Lightera enhancements in optical fiber, leading to the development of 200 micron bend-optimized fibers. These bend-optimized AllWave FLEX ZWP and AllWave FLEX+ ZWP Fibers require 36 percent less area than conventional 250 micron coated fibers, enabling reduced diameter cables with a higher fiber count per tube. Lightera 200 micron AllWave+ fiber with 9.2 micron mode field diameter offers seamless splicing, testing and faster network turn-up.

Why the MiDia 200 Micro FX Cable?

With the tremendous increase in fiber density in a single, reduced diameter cable, providers can maximize the use of their network duct systems and infrastructure, using a single cable in one microduct instead of two cables in two microducts. This capability makes it easier to increase fiber counts, even in highly congested ducts, while helping to save on material and installation costs and retaining space for future upgrades or lease.

The lighter weight, more compact MiDia 200 Micro FX Cable also helps customers achieve longer air-blown installation distances. This ability reduces the number of splice points and setups required, potentially saving both time and money. In addition, this reduced diameter microcable allows the use of smaller, more cost-efficient microducts and other accessories, helping to further lower costs for a faster return on investment.

Design

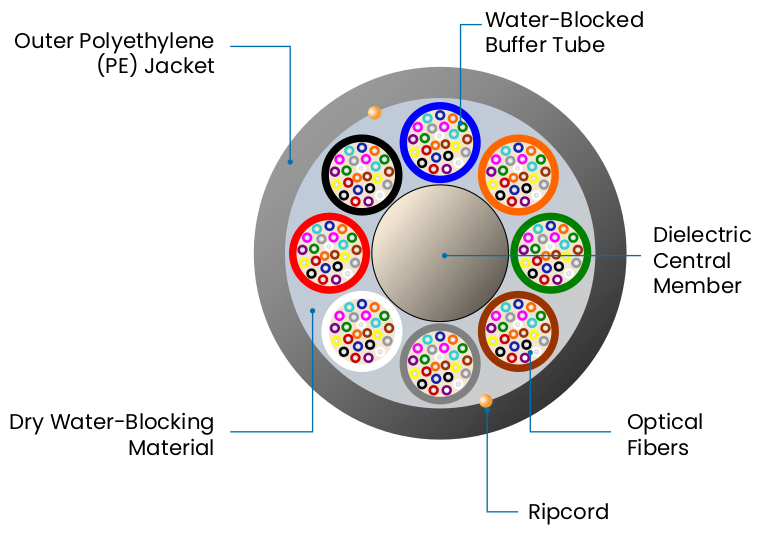

To construct the MiDia200 Micro FX Cable, 200 micron AllWave®+, AllWave FLEX ZWP or AllWave FLEX+ ZWP bend-optimized single-mode optical fibers are placed in water-blocked buffer tubes to protect the fibers from external forces. The optical fibers and buffer tubes are color coded for ready identification. The buffer tubes are then stranded around a dielectric central member using the reverse oscillating lay (ROL) stranding technique and dry, water-blocking materials are applied. In the final step, a ripcord and a durable polyethylene (PE) jacket are added to complete the cable construction.


MiDia 200 Micro FX Cable

Fiber Count

Specifications
FIber Count 144 192 288
Cable Outer Diameter – mm 6.3 7.6 9.6
Cable Weight – kg/km 40 55 90

Performance Standard

Performance Standard
  • The MiDia 200 Micro FX Cable is tested to IEC 60794-1-2 and IEC 60794-5 for reliable performance.
  • The 200 micron bend optimized AllWave+ and AllWave FLEX ZWP fiber meets ITU-T G.657.A1 and IEC 60793-2-50 B-657.A1
  • The 200 micron bend optimized AllWave FLEX+ ZWP fiber meets ITU-T G.657.A2 and IEC 60793-2-50 B-657.A2

Fiber Count

Handling
Fiber Count 144 192 288
Tensile Performance (short-term) N 800 1100 1700
Crush Performance (short-term) N 1000 1000 1000
Bending Performance (radius) mm, Installed 90 140 150
During Installation 180 280 300
Recommended Minimum Duct I.D. 8 mm 10 mm 12 mm

Installation

Temperature
Installation: -15°C to 40°C
Operation: -30°C to 70°C
Storage: -40°C to 70°C

Standard Microcable Lengths

Standard Microcable Lengths
The MiDia 200 Micro FX Cable is available in 2,000, 4,000, 6,000 and 8,000 meter lengths.
