Mini LT Flat Drop Fiber Optic Cable

• Compact, easy-to-access design allows for streamlined installation and handling
• Suitable for self-supporting aerial, direct buried, and duct FTTX drop installations
• Compatible with industry-standard wedge clamps and closure strain reliefs
• Excellent tensile strength and crush resistance
• Optimized for optical fiber counts of 1, 2, 4, 6, 12, and 24 for minimizing deployment costs
• All-dielectric construction eliminates the need for bonding or grounding
• 300 pound Maximum Rated Cable Load (MRCL)
• Standard availability with AllWave® Zero Water Peak (ZWP) Single-Mode Optical Fiber
• AllWave FLEX ZWP Optical Fiber available as an option

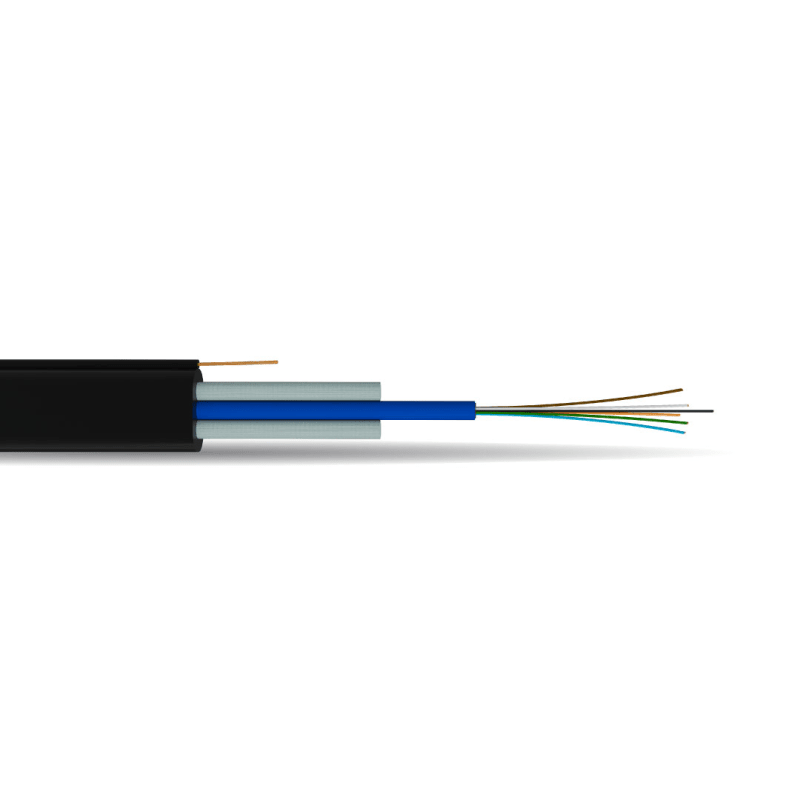

The Mini LT Flat Drop Cable offers a compact and lightweight yet durable, self-supporting fiber optic design in an easily accessible construction.

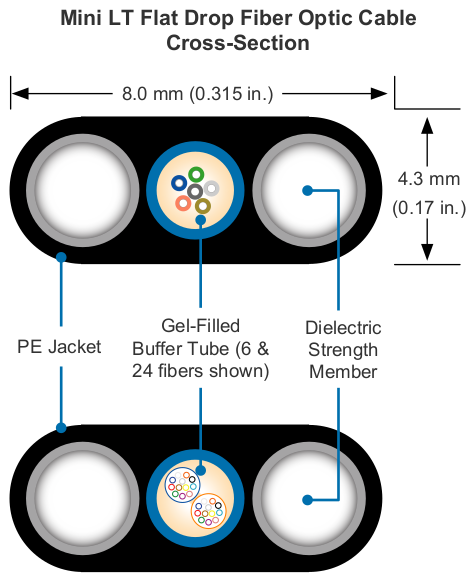

To construct the cable, up to 12 optical fibers are placed in a 2.0 mm gel-filled buffer tube (a 3.0 mm buffer tube for 24-fiber cable) to create a flexible and easy-to-access core. Next, two fiberglass rods are placed diametrically opposite on either side of the fiber core, providing excellent crush resistance and tensile strength during installation and over the lifetime of the cable. The strength member rods and fiber core are then encapsulated in a durable polyethylene (PE) jacket to create a flat cable cross-section and provide added protection to the cable core.

The small, lightweight Mini LT Flat Drop Cable offers an ideal solution for the smaller fiber counts that are needed in the final sections of an optical network, particularly in a fiber-to-the-premise (FTTx) installation. The buffer tube fiber core allows easy access in a flexible design that is easy to handle and install.

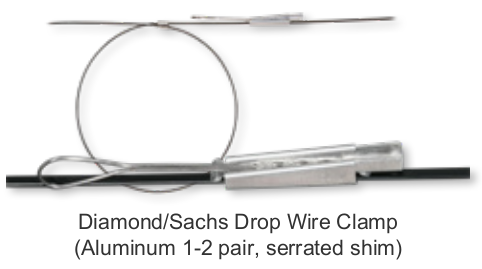

The rugged, flat construction of the Mini LT Cable is specifically designed for self-supporting aerial deployments and is fully compatible with the type of aerial hardware shown on the reverse page, allowing faster, lower cost installations. The superior crush resistance and durability of the Mini LT Cable make it robust enough for below-grade installations in ducts or open trenches.

The all-dielectric Mini LT Flat Drop Cable helps to save money by eliminating the need for expensive bonding or grounding.
