07042-01
Mini-TB Flat-Drop Assemblies
Lightera’ Mini-TB (Tight Buffer) Drop Assemblies are used in FTTx applications between a Network
Interface Device (NID) and a closure or pedestal. They consist of a flat outer sheath compatible with existing low cost aerial hardware, made robust with 2 solid strength members surrounding a 3 mm cord containing Lightera’ bend optimized single-mode optical fiber and optical connectors on one or both ends. The assemblies are delivered with the flat sheath and strength members removed at the ends, allowing for easy bending and storage of the 3 mm cordage.
The Mini-TB Drop Assemblies are factory terminated and tested for fast, reliable plug and play installation. The Mini-TB Drop Assemblies are part of Lightera’ FTTx Solution Home and Business.
Lightera’ Mini-TB (Tight Buffer) Drop Assemblies are used in FTTx applications between a Network
Interface Device (NID) and a closure or pedestal. They consist of a flat outer sheath compatible with existing low cost aerial hardware, made robust with 2 solid strength members surrounding a 3 mm cord containing Lightera’ bend optimized single-mode optical fiber and optical connectors on one or both ends. The assemblies are delivered with the flat sheath and strength members removed at the ends, allowing for easy bending and storage of the 3 mm cordage.
The Mini-TB Drop Assemblies are factory terminated and tested for fast, reliable plug and play installation. The Mini-TB Drop Assemblies are part of Lightera’ FTTx Solution Home and Business.
Key features

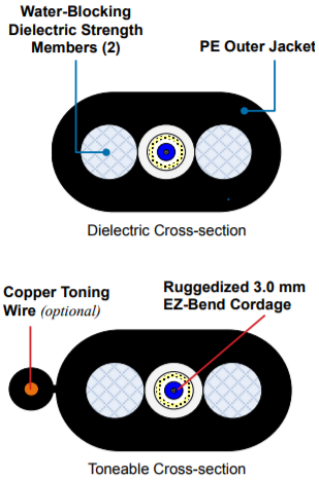

- EZ-Bend® optical fiber inside a ruggedized 3.0 mm Indoor/Outdoor jacket
- Aramid strength members enabling 90 lbf maximum long term load
- Factory terminated optical connectors
- Factory tested optical performance with low loss and low reflection performance (65 dB with SC-APC connectors)
- Industry standard connectors
- EZ-Bend Optical Fiber
- AllWave® FLEX+ Optical Fiber
- Integrated copper toning wire (optional)
- Precision manufactured with high quality manufacturing processes
- RoHS compliant
Benefits
- Bends down to a 2.5 mm radius making routing easier inside the premise; compact slack management reduces cost and large loops
- Facilitates pulling through duct and stapling around sharp corners while protecting fiber reliability
- Plug and play results in faster, lower skill installation saving time and cost compared to field terminated options
- Greater service reliability compared to field terminated solutions
- Compatible and interoperable with industry standard terminals compared to hardened fiber optic connectors
- Bends down to 2.5 mm radius; may be stapled and bent around sharp corners and allows faster easier routing inside the premise to an indoor ONT
- Bends down to a 7.5 mm radius for compact installation without bend induced service disruption
- Easy to locate underground using conventional equipment to prevent impact from/to other underground utilities; copper wire can be easily peeled away to route the cabling inside or access the toning wire for testing
- Consistent high quality performance
- Meets environmental standards
Product Description
Lightera’ Mini-TB (Tight Buffer) Drop Assemblies are used in FTTx applications between a Network
Interface Device (NID) and a closure or pedestal. They consist of a flat outer sheath compatible with existing low cost aerial hardware, made robust with 2 solid strength members surrounding a 3 mm cord containing Lightera’ bend optimized single-mode optical fiber and optical connectors on one or both ends. The assemblies are delivered with the flat sheath and strength members removed at the ends, allowing for easy bending and storage of the 3 mm cordage.
The Mini-TB Drop Assemblies are factory terminated and tested for fast, reliable plug and play installation. The Mini-TB Drop Assemblies are part of Lightera’ FTTx Solution Home and Business.
Mini TB Flat-Drop Assembly Specifications
| Mini TB Flat-Drop Assembly Specifications | |
|---|---|
| Fiber Count | 1 |
| Cable Dimensions | 0.17 in. X 0.32 in. (4.5 mm X 8.2 mm) |
| Cable Weight | 29 lb/kfg (44 kg/km) |
| Performance Standard | Tested Per Applicable Requirements of Ansi/icea S-110-717 |
| Handling |
|
| Minimum Bend Radius, with Load | 6 in. (15 cm) |
| Minimum Bend Radius, with No Load | 3 in. (7.5 cm) |
| Minimum Bend Radius, Storage Coils | 6 in. (15 cm) |
| Maximum Rated Cable Load (MRCL) | 300 lbf (1335 N) |
| Maximum Long Term Load | 90 lbf (405 N) |
| Temperature Installation | -14 °F to 140 °F (-10 °C to 60 °F) |
| Temperature Operation | -40 °F to 158 °F (-40 °C to 70 °F) |
| Temperature Storage | -40 °F to 158 °F (-40 °C to 70 °C) |

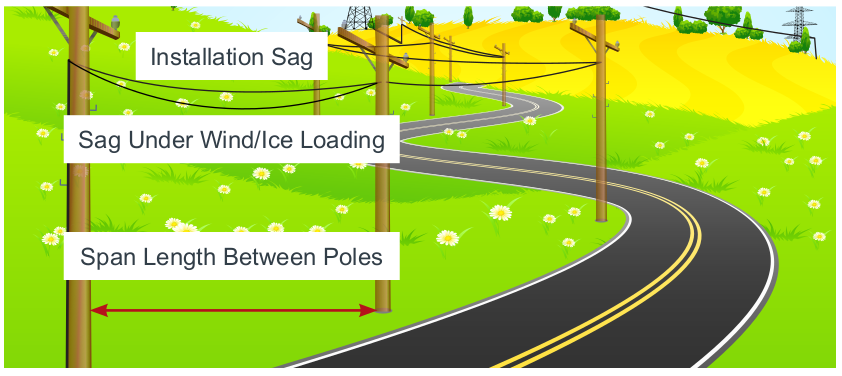

Aerial Span Information
| Aerial Span Information | ||||
|---|---|---|---|---|
| Storm Loading Region | 1% Installation Sag Max Span | 1% Installation Sag Installation Tension | 3% Installation Sag Max Span | 3% Installation Sag Installation Tension |
| Heavy | 150 ft. (45 m) | 58 lb. (26 kg) | 175 ft. (53 m) | 23 lb. (10 kg) |
| Medium | 275 ft. (84 m) | 107 lb. (49 kg) | 375 ft. (114 m) | 48 lb. (22 kg) |
| Light | 375 ft. (114 m) | 145 lb. (66 kg) | 550 ft. (168 m) | 71 lb. (32 kg) |
Connectorization Performance
| Connectorization Performance | |||
|---|---|---|---|
| Single-Mode |
|||
| Connector | Insertion Loss Max. Standard Deviation | Return Loss Max | Temperature Range |
| LCU | 0.25/0.3 dB | -50 dB | -40 to 85 |
| LCA | 0.5/0.3 dB | -65 dB | -40 to 85 |
| SCU | 0.3/0.3 dB | -50 dB | -40 to 85 |
| SCA | 0.5/0.3 dB | -65 dB | -40 to 85 |
Ordering Information
| Ordering Information | |
|---|---|
| Syntax | LPCa-b-bbbccc-eeee-fff-nnnng-hhh/hhh |
| a | Design Type 2 = Preconnectorized Cable with Non- Standard Breakouts |
| b | Fiber Type W = Allwave Flex+ Optical Fiber (G.657.A2) D = EZ-Bend Optical Fiber (G.657.B3) |
| ccc | Connector Type (inside) |
| ddd | Connector Type (Outside) SCA = SC Angle Polish SCU = SC Ultra Polish SAS = SC Angle Polish, Short Boot UNC = No Connector |
| eeee | Cable Type 8V7T = Central Core (8), Ruggedized 3 mm (V), Flat Drop (7), Toneable (T) 8V7X = Central Core (8), Ruggedized 3 mm (V), Flat Drop (7), Dielectric (X) |
| fff | Fiber Count 001 |
| nnnn | Length |
| g | Unit of Measure F = Feet M = Meters |
| hhh | Breakout Length 009, 015, 024, 025 = Length (in.) XXX = No connector on end |
Mini-TB Flat-Drop Assemblies Ordering Information by Comcode/Material Description
| Mini-TB Flat-Drop Assemblies Ordering Information by Comcode/Material Description | ||
|---|---|---|
| Comcode | Material Description | Long Description |
| 301181533 | LPC2-D-SCASCA-8V7X-001-050F-024/024PG | miniTB flat drop assembly, EZBEND G657B3, SCA to SCA, 24 inch breakout, pulling grip, 50 feet |
| 301181574 | PC2-D-SCASCA-8V7X-001-100F-024/024PG | miniTB flat drop assembly, EZBEND G657B3, SCA to SCA, 24 inch breakout, pulling grip, 100 feet |
| 301181582 | LPC2-D-SCASCA-8V7X-001-150F-024/024PG | miniTB flat drop assembly, EZBEND G657B3, SCA to SCA, 24 inch breakout, pulling grip, 150 feet |
| 301181590 | LPC2-D-SCASCA-8V7X-001-200F-024/024PG | miniTB flat drop assembly, EZBEND G657B3, SCA to SCA, 24 inch breakout, pulling grip, 200 feet |
| 301181608 | PC2-D-SCASCA-8V7X-001-250F-024/024PG | miniTB flat drop assembly, EZBEND G657B3, SCA to SCA, 24 inch breakout, pulling grip, 250 feet |
| 301181616 | LPC2-D-SCASCA-8V7X-001-300F-024/024PG | miniTB flat drop assembly, EZBEND G657B3, SCA to SCA, 24 inch breakout, pulling grip, 300 feet |
| 301181624 | LPC2-D-SCASCA-8V7X-001-400F-024/024PG | miniTB flat drop assembly, EZBEND G657B3, SCA to SCA, 24 inch breakout, pulling grip, 400 feet |
| 301181632 | LPC2-D-SCASCA-8V7X-001-500F-024/024PG | miniTB flat drop assembly, EZBEND G657B3, SCA to SCA, 24 inch breakout, pulling grip, 500 feet |
| 301181640 | LPC2-D-SCASCA-8V7X-001-600F-024/024PG | miniTB flat drop assembly, EZBEND G657B3, SCA to SCA, 24 inch breakout, pulling grip, 600 feet |
| 301181657 | PC2-D-SCASCA-8V7X-001-700F-024/024PG | miniTB flat drop assembly, EZBEND G657B3, SCA to SCA, 24 inch breakout, pulling grip, 700 feet |
