Code - 07171-01

OPTION1™ DT Outdoor/Indoor Cable

OPTION1 DT Riser-Rated, Outdoor/Indoor Fiber Optic Cable innovatively combines the safety features of an indoor, riser-rated cable with the durability critical to outside plant (OSP) use, all in a single, gel-free cable that helps enable faster deployment and reduced installation costs.

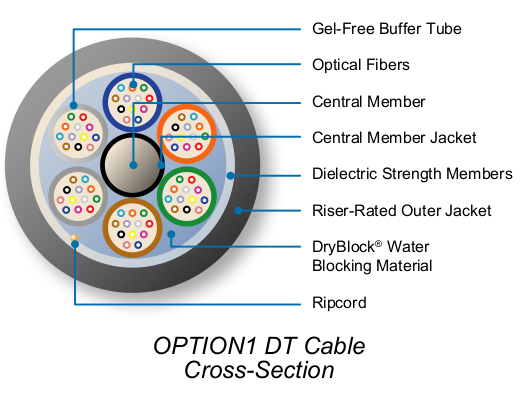

Lightera’ field-proven, totally gel-free loose tube design lies at the heart of each OPTION1 DT Cable. To construct this cable, optical fibers are placed within flexible 2.5 mm buffer tubes that contain a specially-engineered, super-absorbent yarn that delivers excellent water penetration resistance without the use of messy gels and filling compounds. Next, the color-coded buffer tubes are then stranded around a dielectric central member using the reverse oscillating lay (ROL) stranding technique for easy, mid-span fiber access. Additional gel-free, super-absorbent material is then applied to the cable core to offer added water-blocking protection and faster cable preparation. Finally, dielectric strength elements, a ripcord and a durable outer jacket complete the cable construction.

OPTION1 DT Riser-Rated, Outdoor/Indoor Fiber Optic Cable innovatively combines the safety features of an indoor, riser-rated cable with the durability critical to outside plant (OSP) use, all in a single, gel-free cable that helps enable faster deployment and reduced installation costs.

Lightera’ field-proven, totally gel-free loose tube design lies at the heart of each OPTION1 DT Cable. To construct this cable, optical fibers are placed within flexible 2.5 mm buffer tubes that contain a specially-engineered, super-absorbent yarn that delivers excellent water penetration resistance without the use of messy gels and filling compounds. Next, the color-coded buffer tubes are then stranded around a dielectric central member using the reverse oscillating lay (ROL) stranding technique for easy, mid-span fiber access. Additional gel-free, super-absorbent material is then applied to the cable core to offer added water-blocking protection and faster cable preparation. Finally, dielectric strength elements, a ripcord and a durable outer jacket complete the cable construction.

Features And Benefits

  • Totally gel-free, reduced weight cable helps save on deployment time and expense
  • Helps reduce cable preparation time by up to 80% ¹
  • Streamlined installation with direct outdoor-to-indoor cable transitions
  • Cleaner work environment helps support faster splicing with higher yields
  • Enhances system performance by avoiding additional splice point attenuation loss
  • Environmentally-friendly cable helps reduce waste and the need for special cleaning solvents
  • Riser- and tray-rated; all-dielectric construction with OFNR approval; meets UL 1666 (riser-rated) and IEC 60332-3C for flame resistance
  • UV-resistant jacket for reliable service in direct sunlight
  • Fiber counts up to 288
  • Available with Lightera application-specific fibers including AllWave® Zero Water Peak (ZWP) and AllWave+ ZWP Single-Mode, TrueWave® RS LWP Single-Mode, and Multimode Fibers


OPTION1 DT Riser-Rated, Outdoor/Indoor Fiber Optic Cable

Product Description

OPTION1 DT Riser-Rated, Outdoor/Indoor Fiber Optic Cable innovatively combines the safety features of an indoor, riser-rated cable with the durability critical to outside plant (OSP) use, all in a single, gel-free cable that helps enable faster deployment and reduced installation costs.

Lightera’ field-proven, totally gel-free loose tube design lies at the heart of each OPTION1 DT Cable. To construct this cable, optical fibers are placed within flexible 2.5 mm buffer tubes that contain a specially-engineered, super-absorbent yarn that delivers excellent water penetration resistance without the use of messy gels and filling compounds. Next, the color-coded buffer tubes are then stranded around a dielectric central member using the reverse oscillating lay (ROL) stranding technique for easy, mid-span fiber access. Additional gel-free, super-absorbent material is then applied to the cable core to offer added water-blocking protection and faster cable preparation. Finally, dielectric strength elements, a ripcord and a durable outer jacket complete the cable construction.

Why the Option1 DT Cable?

The completely gel-free OPTION1 DT Cable offers the safety features needed for indoor riser use along with the durability required for OSP applications.

Unlike traditional loose tube cables that use gels in direct contact with optical fibers, the OPTION1 DT Cable replaces gels with a specially-engineered, super-absorbent yarn that provides outstanding water penetration resistance. By eliminating gels and filling compounds, this cable helps enable substantial savings on installation time and labor costs. In fact, when compared with similar gel-filled outdoor/indoor cables, the OPTION1 DT Cable can help cut cable end preparation time by up to 80%, helping to significantly reduce labor costs for splicing and terminations ¹

Note

¹ In field trials, the gel-free OPTION1 DT Cable reduced the time required for cable end preparation for splicing and terminations by up to 80% as compared with Lightera and competitor gel-filled loose tube cables.

Specifications

Specifications
Fiber Count 2-60
 61-72
 73-96
 97-120
 121-144
 145-216
 217-240
 241-288
Outer Diameter in. (mm) 0.52 (13.1) 0.52 (13.1) 0,58 (14.6) 0.64 (16.2) 0.71 (18.0) 0.71 (18.1) 0.74 (18.9) 0.82 (20.7)
Weight lb/kft (kgm/km) 108 (160) 108 (160) 132 (196) 163 (243) 202 (300) 173 (257) 188 (280) 226 (337)

Performance Standard

Performance Standard
Performance Standard Tested per Applicable Requirements of ANSI/ICEA S-87-640, Telcordia GR-20 CORE and UL 1666 (Riser)

Handling

Handling
Minimum Bend Radius, With Load 15 X OD*
Minimum Bend Radius, With No Load 10 X OD*
Minimum Bend Radius, Storage Coils 10 X OD*
Maximum Rated Cable Load (MRCL) 600 lbf (2700 N)
Maximum Long Term Load 180 lbf (800 N)
Note NOTE: OD = Outer Diameter of Cable, minimum of 6 in. (15 cm). See Lightera Installation Procedure 042 for sheath preparation and coiling instructions.

Temperature

Temperature
Installation -22 °F to 140 °F ( -30 °C to 60 °C )
Operation -40 °F to 158 °F ( -40 °C to 70 °C )
Storage -40 °F to 167 °F (-40 °C to 75 °C )

Fiber Type²

Fiber Type²
Single-Mode Fiber Fiber (S1) Fiber (S2) Fiber (SF) Fiber Standards Wavelengths (nm) Typical* Attenuation (dB/km) Maximum Cable on Reel Attenuation (dB/km)
AllWave® ZWP Fiber 3 B E G.652.D 1310/1385/1550 – 0.35/0.31/0.25
AllWave+ ZWP Fiber 3 C E G.652.D/G.657.A1 1310/1385/1550 – 0.35/0.31/0.25
AllWave FLEX ZWP Fiber 5 B E G.652.D/G.657.A1 1310/1385/1550 – 0.35/0.31/0.25
AllWave One Fiber 3 F E G.652.D/G.657.A1 1310/1385/1550 0.33/0.31/0.19 0.34/0.31/0.22
AllWave ULL Fiber 3 H E G.652.D/G.657.B 1310/1550 0.31/0.17 0.33/0.19
TrueWave® RS LWP Fiber 6 2 6 G.655.C&D 1550 0.21 0.25
TeraWave® Fiber 6 2 R G.654.B 1550 0.19 0.25
TeraWave ULL Fiber 6 9 R G.654.B 1550 0.18 0.22
Multimode Fiber Fiber (S1) Fiber (S2) Fiber (SF) Fiber Standards Wavelengths (nm) Typical* Attenuation (dB/km) Maximum Cable on Reel Attenuation (dB/km)
62.5 µm Fiber R U 9 OM1 62.5 µm 850/1300 – 3.4/1.0
LaserWave® FLEX 300 Fiber L F 2 OM3 50 µm 850/1300 – 2.4/0.7
LaserWave FLEX 550 Fiber L H 2 OM4 50 µm 850/1300 – 2.4/0.7
