- Optimized for air-blown, microduct installation
- Reduced outer diameter and high fiber density
- 200 µm AllWave® FLEX Optical Fiber (ITU G.652.D/G.657.A1)
- Complies with IEC-60794-5-10
Code -
07078-01

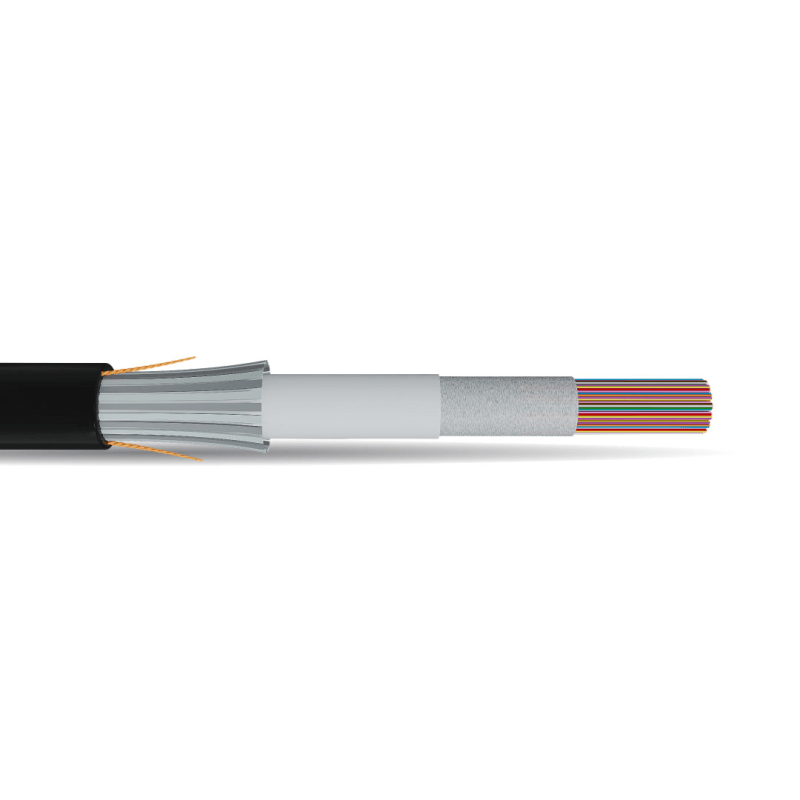

RollR® 200 Central Core Rollable Ribbon Fiber Optic Microcable

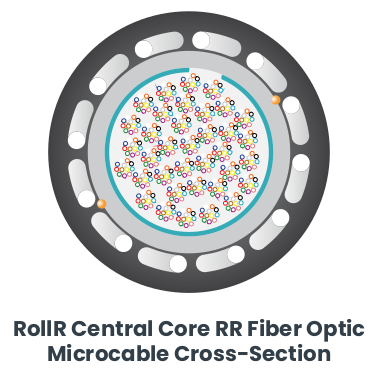

The RollR CC Rollable Ribbon (RR) Microcable features 288 or 432 optical fibers in a gel-free, central core cable cable design optimized for micro-duct installa-tions. The cable features rollable ribbons, Lightera’ newest optical fiber ribbon design. To form these ribbons, individual 200 μm fibers are partially bonded to each other at predetermined points which enables the benefit of mass fusion splicing capabilities in a significantly smaller cable diameter to maximize fiber density in congested networks. The cable design features a central tube construction with helical strength elements for improved handling and installation capabilities in air assist installation deployments. Specifically designed for air-blown installation using microduct systems, the rifled outer jacket cable reduces cable friction during installation to maximize installation lengths.
The RollR CC Rollable Ribbon (RR) Microcable features 288 or 432 optical fibers in a gel-free, central core cable cable design optimized for micro-duct installa-tions. The cable features rollable ribbons, Lightera’ newest optical fiber ribbon design. To form these ribbons, individual 200 μm fibers are partially bonded to each other at predetermined points which enables the benefit of mass fusion splicing capabilities in a significantly smaller cable diameter to maximize fiber density in congested networks. The cable design features a central tube construction with helical strength elements for improved handling and installation capabilities in air assist installation deployments. Specifically designed for air-blown installation using microduct systems, the rifled outer jacket cable reduces cable friction during installation to maximize installation lengths.
Features
Benefits
- Rollable ribbons help enable smaller cable outer diameter (OD) and reduced weight versus traditional ribbon cable designs
- Fast and easy installation helps to lower deployment costs
- Maximizes capacity in limited spaces
- Optimized for fast, cost-effective mass fusion splicing
- Eliminates need for excavation and procuring right-of-way
Eco Friendly Benefits
- On high fiber count cables, rollable ribbon cables can cut shipping related CO2 emissions by half versus flat ribbon cables.
- Rollable Ribbon cable reduce the carbon footprint by being on smaller reels and requiring less material manufacture.
Product Description
The RollR CC Rollable Ribbon (RR) Microcable features 288 or 432 optical fibers in a gel-free, central core cable cable design optimized for micro-duct installa-tions. The cable features rollable ribbons, Lightera’ newest optical fiber ribbon design. To form these ribbons, individual 200 μm fibers are partially bonded to each other at predetermined points which enables the benefit of mass fusion splicing capabilities in a significantly smaller cable diameter to maximize fiber density in congested networks. The cable design features a central tube construction with helical strength elements for improved handling and installation capabilities in air assist installation deployments. Specifically designed for air-blown installation using microduct systems, the rifled outer jacket cable reduces cable friction during installation to maximize installation lengths.
Why the RollR Central Core Rollable Ribbon Fiber Optic Microcable?
Every element of the RollR Central Core RR Cable’s was designed to offer high fiber density while helping to speed of deployment. The rollable ribbon design helps users to achieve highly efficient and cost-effective mass fusion splicing along with easy individual fiber breakout. This capability helps to simplify installation and save on labor costs.
In addition, the RollR Central Core RR Cable’s greater fiber density can help to expand the capacity of existing pathways using smaller, lower-cost duct systems.
The RollR Central Core RR Cable’s ribbons may be "rolled" (compacted) and routed like individual fibers to facilitate use in smaller closures and splice trays.
In addition, the cable’s completely gel-free water-blocking design also helps to reduce the time required to prepare cable ends which can also help with reduced labor and splice costs. With its ability to maximize duct utilization, the RollR RR CC Cable is an excellent choice for connecting the next generation of fiber networks.
Specifications
| Specifications | ||
|---|---|---|
| Fiber Count | 288 |
432 |
| Cable Outer Diameter – in. (mm) | 0.31" (8) | 0.39" (10) |
| Cable Weight lb/kft (kg/km) | 35.02 (52.1) | 52.7 (78.4) |
| Handling (All Fiber Counts) |
||
| Minimum Bend Radius, with Load | 24 Inches | |
| Minimum Bend Radius, with No Load | 24 Inches | |
| Minimum Bend Radius, Storage Coils | 18 Inches | |
| Maximum Rated Cable Load (MRCL) | 300 lbf | |
| Maximum Long-term Load | 120 lbf | |
| Performance Standard (all Fiber Counts) | Tested per applicable requirements ANSI/ICEA S-122-744. | |
| Temperature | ||
| Storage | -40 °F to 158 °F (-40 °C to 70 °C) | |
| Operation | -40 °F to 158 °F (-40 °C to 70 °C) | |
| Installation | -22 °F to 140 °F(-30 °C to 60 °C) | |
| Note | NOTE: The RollR Cable is not recommended for aerial applications. | |
Fiber Type²
| Fiber Type² | |||||||
|---|---|---|---|---|---|---|---|
| Single-mode Optical Fiber | Fiber (S1) | Fiber (S2) | Fiber (SF) | Fiber Standards | Wavelengths (nm) | Typical Attenuation (dB/km) | Max. Cable on Reel Attenuation (dB/km) |
| AllWave FLEX ZWP Optical Fiber (200 µm) | 8 | G | E | G.652.D/G.657.A1 | 1310/1385/1550 | 0.35/0.3/0.22 | 0.4/0.4/0.3 |
| NOTE: For more information regarding typical attenuation as well as attenuation parameters on Link Design Value (LDV) (Maximum end-to-end attenuation over a concatenated span), please see Lightera Application Note AN-111 which can be downloaded at www.lightera.com or contact your Lightera representative. | |||||||
RollR CO RR Microcable Ordering Information
| RollR CO RR Microcable Ordering Information | ||
|---|---|---|
| Example | AT-8GE8WAX-432¹ |
|
| Part Number | AT S1 S2 SF S3 S4 S5 S6 NNNN |
|
| S1 | Fiber Selection. See S1 in Fiber Type table below. |
|
| S2 | Fiber Transmission Performance. See S2 in Fiber Type table below. |
|
| SF | Fiber Type². See SF in Fiber Type table below. |
|
| S3 | Sheath Construction. 8 = All Central Core Products |
|
| S4 | Central Core Design. W = 200 µm Gel-Free Rollable Ribbon |
|
| S5 | Sheath Design. A = RollR Microcable Sheath |
|
| S6 | Central Core – Oversheath. X = No Oversheath |
|
| NNN | Fiber Count. 288 or 432 |
|
| Note | ¹ Part Number shown is for RollR Rollable Ribbon 432-Fiber Microcable with 200 µm AllWave FLEX ZWP Optical Fiber Attenuation: 0.4/0.4/0.3 LIGHTERA OPTICAL CABLE AT-8GE8WAX-NNN [MM/YY] [HANDSET SYMBOL] [NNN] F [SERIAL #] ² Contact Lightera Order Management for information on other cable variations including additional fiber types, fiber counts, attenuation and custom cable print. |
|
