Code -
07097-01

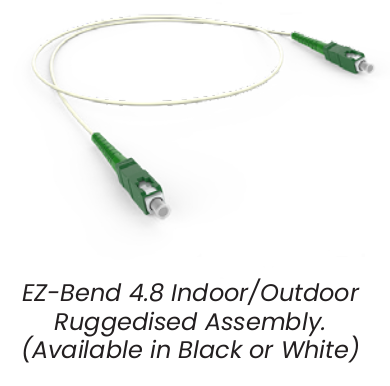

Ruggedised EZ-Bend® Indoor/Outdoor 4.8 mm Drop Cable and Assemblies
The MO48, 4.8mm EZ-Bend drop cable, has become an industry standard for both in building and external MDU drop cable applications. It is both UV and CPR compliant allowing both environments to be satisfied with one product. Utilising the Lightera EZ-Bend fibre technology and the strong tensile and crush resistance, it is ideal for aggressive routing environments, in-building behind walls or where space is at a premium. Available in unterminated, single end, dual ended SCU or SCA terminated. The 4.8mm EZ-Bend cables are flexible and adaptable to all drop cables requirements.
The MO48, 4.8mm EZ-Bend drop cable, has become an industry standard for both in building and external MDU drop cable applications. It is both UV and CPR compliant allowing both environments to be satisfied with one product. Utilising the Lightera EZ-Bend fibre technology and the strong tensile and crush resistance, it is ideal for aggressive routing environments, in-building behind walls or where space is at a premium. Available in unterminated, single end, dual ended SCU or SCA terminated. The 4.8mm EZ-Bend cables are flexible and adaptable to all drop cables requirements.
Features
- FTTx EZ-Bend Fiber G657B3 All Dielectric Cable
- Easy Fiber Access
- Light Weight
- Meets CPR Euro Class Cca-s1a, d1, a1 according to EN 13501-6
- UV stable outer jacket
- Less than 0.1dB macrobending attenuation at 1550nm for 1 turn at 5mm fiber bend radius
- Solid construction fiber with macrobending performance exceeding ITU-T G.657.B3 requirements
- Backward compatible with installed G652D fiber
- Compliant with Telcordia 409 & ICEA S-83-596 requirements
- ICEA-S-1 15-730-2012 compliant for MDU applications
- Featuring EZ-Bend Optical Technology, a breakthrough developed by Lightera Labs
Benefits
- MDU and In-Home Optimized: Ideal for in-residence wiring
- Faster, easier installation: no extra steps to install bend limiters, conduits, or raceways
- Compact installation and storage: Conforms to building; slack fits in small space
- Fast, easy, low loss splicing to G652D fiber with existing core and clad aligned splice equipment
- Familiar, standard connector termination: Solid fiber construction can be terminated using standard optical connectors and polishing techniques
- Greener Solution: Free of heavy metals and RoHS-compliant; solution uses fewer total materials and energy than copper solutions
Product Description
The MO48, 4.8mm EZ-Bend drop cable, has become an industry standard for both in building and external MDU drop cable applications. It is both UV and CPR compliant allowing both environments to be satisfied with one product. Utilising the Lightera EZ-Bend fiber technology and the strong tensile and crush resistance, it is ideal for aggressive routing environments, in-building behind walls or where space is at a premium. Available in unterminated, single end, dual ended SCU or SCA terminated. The 4.8mm EZ-Bend cables are flexible and adaptable to all drop cables requirements.
Product Specifications
| Product Specifications | |
|---|---|
|
Performance |
|
|
Flame Performance |
|
| CPR Rating |
Cca-s1a, d1, a1 |
| DoP Lookup (www.ofs-sales.com/cpr) |
MO48-001-M-H |
| Mechanical and Environment Performance |
Telecordia GR-409, ICEA S-83-596 compliant, ICEA-S-1 15-730-2012 Compliant; for MDU; IEC 60794 |
| Installation Temperature Range |
-10 to 60°C |
| Operation Temperature Range |
-10 to 60°C |
| Storage Temperature Range |
-40 to 70°C |
| Maximum Tensile Rating |
440 N (100 lb) |
| Compressive Load |
100 N/cm |
| Attenuation @1310nm |
Typical: 0.35dB/km; Maximum: 0.4 dB/km |
| Attenuation @1550nm |
Typical: 0.25dB/km; Maximum: 0.3 dB/km |
| Mandrel Wrap Testing @1550nm |
0.048 db/turn |
|
Product Information |
|
| Indoor/Outdoor Cables | |
| Cable Type |

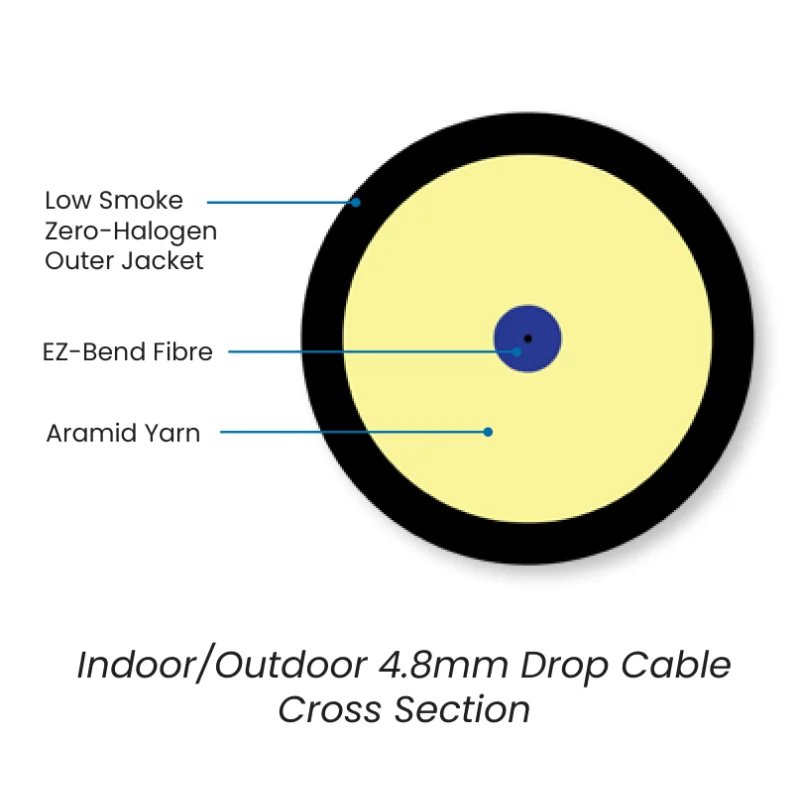

4.8mm ± 0.2mm LSZH |
| Nominal Weight |
20kg/km |
| Part Number |
MO48-001M-DHK-4-01-250 (Black) MO48-001M-DHW-4-01-250 (White) |
EXAMPLE ORDERING CODES
| Example Ordering Codes | |
|---|---|
| Code | Description |
|
JHLDW001SCAUNCxxxM |
SC/APC-UNConnectorised 4.8mm Assembly |
|
JHLDW001SCASCAxxxM |
SC/APC-SC/APC 4.8mm Assembly |
|
xxx = Length in Metres |
|
|
Standard Lengths Stocked = 005, 010, 020, 030, 050 and 075 Metres Other available lengths made on demand |
|
Contact Information
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.
Trademark Notice and Disclaimer
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
