Descontinuado

Code - 07201-01

Ruggedized 3.0 mm Drop Cable

The Ruggedized 3.0 mm Drop Cable is available as a low-smoke zero-halogen indoor/outdoor construction. Route throughout living unit with negligible signal loss. Ideal for aggressive routing environments where space is at a premium, the EZ-Bend 3.0 Cable offers reliable support for MDU and in-home wiring applications.

Features

3.0 diameter cordage
B2ca-s1-d0-a1

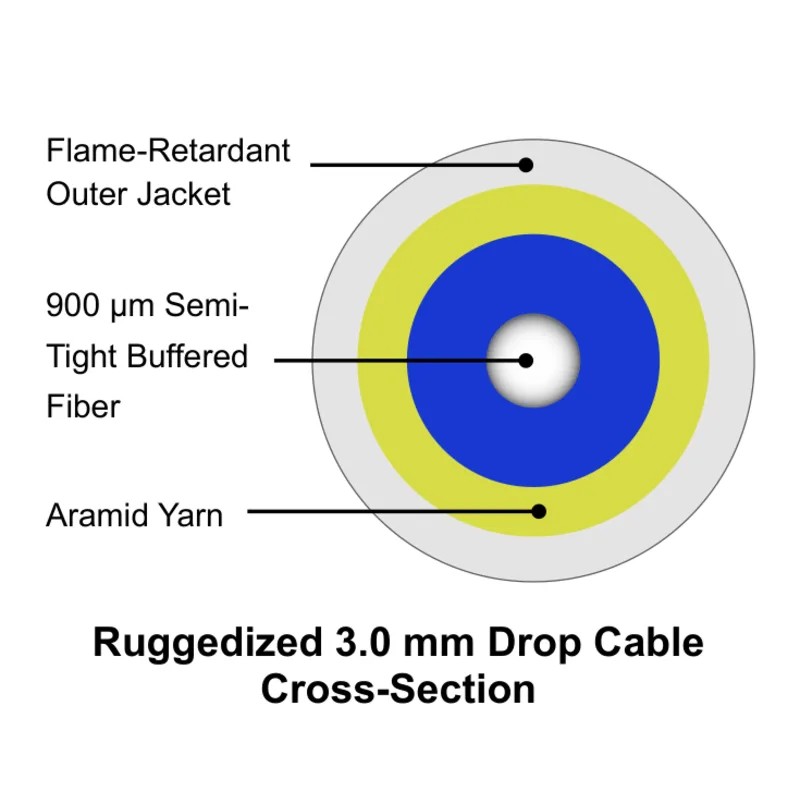

Semi-tight buffered fiber 900 µm; strip 1 meter lengths
Less than 0.1 dB macrobending attenuation at 1550 nm for 1 turn at 5 mm fiber bend radius
Solid construction fiber with macrobending performance far better than ITU G.657.B3 requirements
Backward compatible with installed G.652.D fibers
Compliant with Telcordia 409 & ICEA S-83-596 requirements
ICEA-S-115-730-2012 compliant for MDU applications
Featuring EZ-Bend Optical Technology, a breakthrough developed by Lightera Labs

Benefits

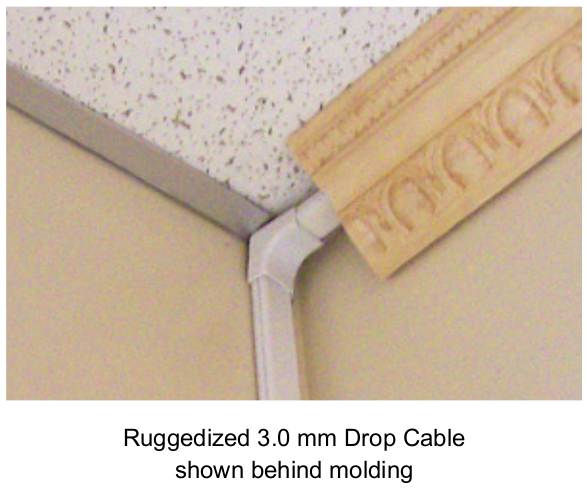

MDU and In-Home Optimized: Ideal for in-residence wiring
Faster, easier installation: no extra steps to install bend limiters, conduits, or raceways
Compact installation and storage: Conforms to building; slack fits in small spaces
Fast, easy, low loss splicing to G.652.D fiber with existing core and clad aligned splice equipment
Familiar, standard connector termination: Solid fiber construction can be terminated using standard optical connectors and polishing techniques
Familiar connector endface cleaning using same process as with existing G.652 solid construction fiber
Greener Solution: Free of heavy metals and RoHS-compliant; solution uses fewer total materials and energy than copper solutions
Easy to Strip: Up to 1 meter lengths from buffer to aid with fusion spicing

Product Description

Performance

Performance
Flame Performance
CPR Rating	B2ca-s1, d0, a1
Mechanical and Environment Performance	Telecordia GR-409, ICEA S-83-596 compliant, ICEA-S-115-730-2012 Compliant; for MDU
Temperature Range
Installation	-20 °C to 60 °C (-4 °F to 140 °F)
Operation	-40 °C to 70 °C (-40 °F to 158 °F)
Storage	-40 °C to 70 °C (-40 °F to 158 °F)
Maximum Tensile Rating	444 N (100 lb)
Compressive Load	100 N/cm
Attenuation
@ 1310 Nm	Typical: 0.35 dB/km; Maximum: 0.4 dB/km
@ 1550 Nm	Typical: 0.25 dB/km; Maximum: 0.3 dB/km

Product Information

Product Information
Indoor/Outdoor Cables
Cable Type	3.0 Indoor/Outdoor LSZH
Nominal Weight	8.4 kg/km (0.66 lb/100 ft)
Part Number	IR30-001C-DHK-4-EZS (Black) IR30-001C-DHW-4-EZS (White)
CPR Rating	B2ca-s1, d0, a1
Dop Lookup: https://sales.nar.lightera.com/cpr	IR30-001-C-H


Ruggedized 3.0 mm Drop Cable

Contact Information

For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.

Trademark Notice and Disclaimer

Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
