S218R-Plus Hand Held Thermal Fiber Stripper Core-Alignment
S218R-Plus Hand Held Thermal Fiber Stripper Core-Alignment
| Product Specifications | |
|---|---|
| Applicable Fibers | Optical fibers (Glass) |
| Cladding Diameter | 0.125 mm |
| Fiber Count | 1 to 12 |
| Coating Diameter (Single Fiber) | 0.2 to 0.4 mm |
| Fiber Ribbon Size | 0.25 to 0.4mm (Thickness) |
| Heating Temperature | 80 to 140 °C (4 steps of temperature) |
| Battery Life | Approx. 10 hours (Normal mode) |
| Charging Time | Approx. 2.5 hours (with power off condition) |
| Power Supply | DC: 11V – 14V; when unit is powered off AC: 100V – 240V: in use of S952 AC adapter |
| Dimensions | 125W X 48D X 41H mm; when using S952 AC Adapter |
| Weight | 260g (including battery) |
| Operating Condition | Temperature: 0 to 40 °C Humidity: Max. 95 %RH (non-condensing) |
Silica glass-based optical fibers, single fiber, 0.25 mm and 0.9 mm coating diameter, 0.125 clad diameter.

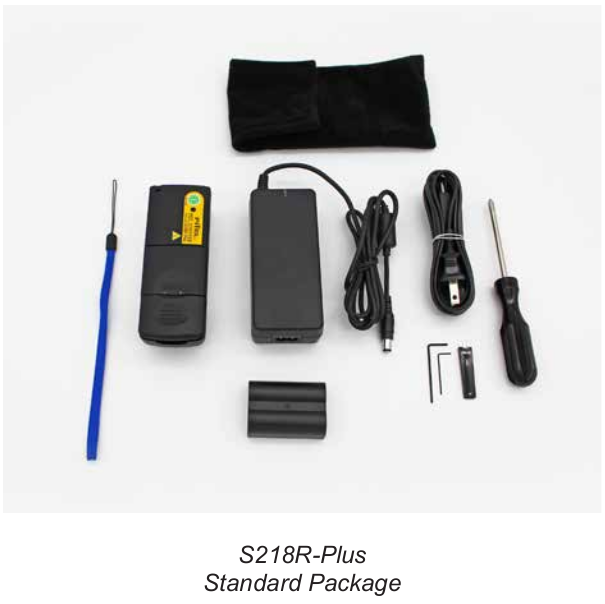

| Standard Package | ||
|---|---|---|
| Item | Part Number | Quantity |
| Main Body | S218R-Plus-01 | 1 |
| Battery | S944 | 1 |
| AC Adapter | S952 | 1 |
| Bag for Main Body | S218X-04 | 1 |
| Hexagon Wrench | S218X-07 | 1 |
| Screw Driver | S218X-20 | 1 |
| Cleaning Brush | VGC-01 | 1 |
| Operation Manual | FTS-B552 | 1 |
| Optional Parts | ||
|---|---|---|
| Item | Part Number | Quantity |
| Single Fiber Adapter | S218X-03 | 1 |
| Spare Blade | S218X-88 | 1 |
| Spacer *1 | S218-22 | 1 |
| Stand *2 | S218X-23 | 1 |
| *1 for adjustment of stripping length | ||
| *2 unit frame supporter | ||
