- Simple operation
- Easy fiber loading
- Durable and reliable design

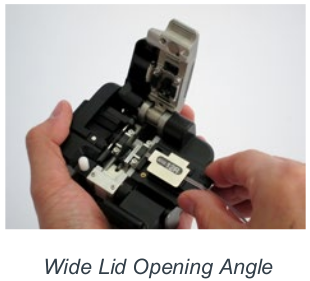

- Wide lid opening
- Long blade life
- Light weight (About 30% reduced from previous model)
- High capacity waste bin (S326A)
Code -
07064-01
S326 Cleaver High Precision Optical Fiber Cleaver

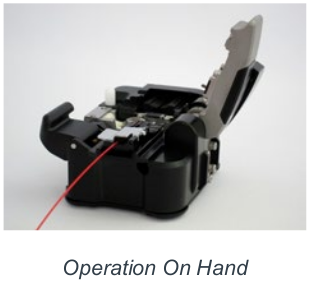

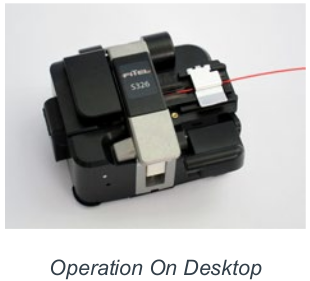

With its ergonomic and light weight design, the S326 cleaver offers the operator the versatility to cleave on a work bench or in the palm of their hand. The reduced lid size and wide opening angle facilitates fiber loading and improves stability resulting in better single and ribbon fiber cleaves. Just pressing the lever completes the fiber cleave and automatically collects the waste. With 24 positions, the long life-time blade achieves numerous cleaves. The S326 cleaver offers optical fiber cleaving for a full range of OSP and OEM applications. The S326A configuration comes with both the regular and large size fiber waste bin or users can choose the smaller S326B option without a bin.
With its ergonomic and light weight design, the S326 cleaver offers the operator the versatility to cleave on a work bench or in the palm of their hand. The reduced lid size and wide opening angle facilitates fiber loading and improves stability resulting in better single and ribbon fiber cleaves. Just pressing the lever completes the fiber cleave and automatically collects the waste. With 24 positions, the long life-time blade achieves numerous cleaves. The S326 cleaver offers optical fiber cleaving for a full range of OSP and OEM applications. The S326A configuration comes with both the regular and large size fiber waste bin or users can choose the smaller S326B option without a bin.
Features And Benefits
Product Description
With its ergonomic and light weight design, the S326 cleaver offers the operator the versatility to cleave on a work bench or in the palm of their hand. The reduced lid size and wide opening angle facilitates fiber loading and improves stability resulting in better single and ribbon fiber cleaves. Just pressing the lever completes the fiber cleave and automatically collects the waste. With 24 positions, the long life-time blade achieves numerous cleaves. The S326 cleaver offers optical fiber cleaving for a full range of OSP and OEM applications. The S326A configuration comes with both the regular and large size fiber waste bin or users can choose the smaller S326B option without a bin.
Specifications
| Specifications | |
|---|---|
| Applicable Fibers | All fiber types |
| Fiber Count | Single to 12 ribbon fiber |
| Clad Diameter | 125 µm |
| Coating Diameter | Single fiber: 250 to 900 μm Ribbon fiber: 280 to 400 μm (thickness) |
| Cleave Length | Single fiber: Fixed length 10 & 16 mm, Variable length 3 to 20 mm Ribbon fiber: Fixed length 10 mm |
| Blade Life *1 | 48000 fibers (2000 fibersx24 positions) |
| Dimensions | S326A: 96Wx79Dx56H mm S326B: 60Wx79Dx56H mm |
| Weight | S326A: 250 g S326B: 195 g |
Standard package
| Standard Package | |||
|---|---|---|---|
| Items | P/N | Quantity S326A | Quantity S326B |
| 1 S326A Main Body | S326A-01 | 1 | – |
| 2 S326B Main Body | S326B-01 | – | 1 |
| 3 Single Fiber Adapter | S326X-11 | 1 | 1 |
| 4 Normal Fiber Waste Bin | S326X-12 | 2 | – |
| 5 Large Capacity Fiber Waste Bin | S326X-13 | 1 | – |
| 6 Semi-hard Case | S326X-14 | 1 | – |
| 7 Soft Case | S326X-15 | – | 1 |
| 8 Hexagonal Wrench | S326X-16 | 1 | 1 |
| Operation Manual | FTS-B423 | 1 | 1 |
Contact Information
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.
Trademark Notice and Disclaimer
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
