Code -
06919-01
SlimBox 12-Fiber Wall Mount Module
The SlimBox 12-Fiber Wall Mount Module is both a termination and splice point for optical fiber in an indoor wall mounted environment. Cable enters from the bottom and the grommets allow for pass through of the fiber without splicing. The additional splice tray provides pigtail and fanout splicing (single fusion splicing). Various Panels come with the module for termination of SC, FC, ST and LC (duplex) connectors.
The SlimBox 12-Fiber Wall Mount Module is both a termination and splice point for optical fiber in an indoor wall mounted environment. Cable enters from the bottom and the grommets allow for pass through of the fiber without splicing. The additional splice tray provides pigtail and fanout splicing (single fusion splicing). Various Panels come with the module for termination of SC, FC, ST and LC (duplex) connectors.
Features And Benefits
- Splice tray holds either 40 mm single fusion splice sleeves or bare planar splitters
- Cable entries at the bottom of the enclosure
- Multiple panels for housing adapters
- Small size taking up minimal wall space
- Formed in plastic with high mechanical resistance providing protection for splices and terminations
- Can be installed in any vertical plan surface easily reducing installation time
Product Description
The SlimBox 12-Fiber Wall Mount Module is both a termination and splice point for optical fiber in an indoor wall mounted environment. Cable enters from the bottom and the grommets allow for pass through of the fiber without splicing. The additional splice tray provides pigtail and fanout splicing (single fusion splicing). Various Panels come with the module for termination of SC, FC, ST and LC (duplex) connectors.
Performance Specifications
| Performance Specifications | |
|---|---|
| Capacity |
|
| Included | Screw for the front cover |
| Accessories |
|
| Security | Hidden screw to close the front panels |
| Protection Level | IEC 60529 IP20 |
| Warranty | 12 months |
| Physical Characteristics | |
| Dimensions | 5.88" H X 4.85" W X 1.79" D |
| Material | ABS Plastic, UL 94V-0 |
| Color | Gray (RAL 7035) |
| Standards |
|
Ordering Information
| Ordering Information | ||
|---|---|---|
| Comcode | Product Code | Description |
| 301039228 | SlimBox-V, Indoor MDU-12 Fiber | Wall Mount Enclosure without adapters |
| 301090171 | WSC1S-012-SBM0-BGE-SCUUNC-F | Wall Mount Enclosure with 12 SCU adapters |

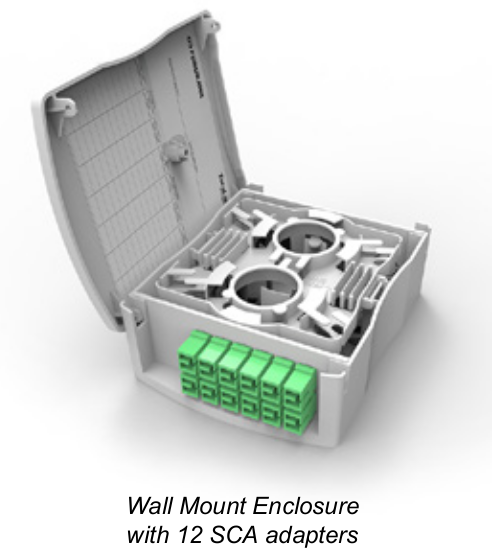

| 301060349 | WSC1S-012-SBM0-BGE-SCAUNC-F | Wall Mount Enclosure with 12 SCA adapters |
Contact Information
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.
Trademark Notice and Disclaimer
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
