Code -
06915-01
SlimBox 48-Fiber Indoor/Outdoor Enclosure
The SlimBox 48-Fiber Indoor/Outdoor Enclosure is a termination box used to connect distribution cables in the outside plant network to FTTx network drop cables. The applications include Fiber to the Home, Building or Cell site. It enables quick and easy connections of the drop cable through plug-and-play connectorized drops into the box or fusion splicing method. The internal connection is made through pre-terminated splitters of pre-connectorized pigrails.
The drop cables’ connection and disconnection are made exclusively inside the box without affecting any previously connected cable. The closure allows the installation of up to 48 assemblies using 3mm or 4.8mm round drop cables.

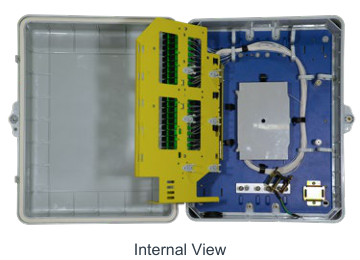

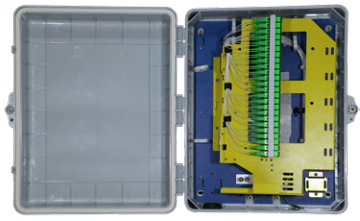

The termination box has one area for storage and splicing, and a separate area for the management and the connection of the pigtails to the internal adapters. It is possible to open and close the NAP without interrupting its operation. It supports up to 48 fusion splices.
The aerial terminal is designed for both poles and wall installations.
The SlimBox 48-Fiber Indoor/Outdoor Enclosure is a termination box used to connect distribution cables in the outside plant network to FTTx network drop cables. The applications include Fiber to the Home, Building or Cell site. It enables quick and easy connections of the drop cable through plug-and-play connectorized drops into the box or fusion splicing method. The internal connection is made through pre-terminated splitters of pre-connectorized pigrails.
The drop cables’ connection and disconnection are made exclusively inside the box without affecting any previously connected cable. The closure allows the installation of up to 48 assemblies using 3mm or 4.8mm round drop cables.
The termination box has one area for storage and splicing, and a separate area for the management and the connection of the pigtails to the internal adapters. It is possible to open and close the NAP without interrupting its operation. It supports up to 48 fusion splices.
The aerial terminal is designed for both poles and wall installations.
Key features
- Use of internal adapters allows the use of pre-terminated drop cable
- Supports termination, splicing, and storage functions
- Compact design
- Loop-through capability
Product Description
The SlimBox 48-Fiber Indoor/Outdoor Enclosure is a termination box used to connect distribution cables in the outside plant network to FTTx network drop cables. The applications include Fiber to the Home, Building or Cell site. It enables quick and easy connections of the drop cable through plug-and-play connectorized drops into the box or fusion splicing method. The internal connection is made through pre-terminated splitters of pre-connectorized pigrails.
The drop cables’ connection and disconnection are made exclusively inside the box without affecting any previously connected cable. The closure allows the installation of up to 48 assemblies using 3mm or 4.8mm round drop cables.
The termination box has one area for storage and splicing, and a separate area for the management and the connection of the pigtails to the internal adapters. It is possible to open and close the NAP without interrupting its operation. It supports up to 48 fusion splices.
The aerial terminal is designed for both poles and wall installations.
SlimBox 48-Fiber Indoor/Outdoor Enclosure Specifications
| SlimBox 48-Fiber Indoor/Outdoor Enclosure Specifications | |
|---|---|
| Product Characteristics | |
| Capacity | Up to 48 fusion splices (stackable internal trays)Up to 48 SC footprint adapters |
| Protection Level | IP 55 |
| Application Environment | Outdoor application in wall mount or pole installation |
| Loose Tube Storage | Yes Internal |
| Adapter Type | SC (standard) or LC |
| Physical Characteristics | |
| Terminal Dimensions (wxhxd) | 12.6 in. X 16.5 in. X 5.1 in.(320 mm X 420 mm X 130 mm) |
| Drop Cable Dimensions | 3 mm or 4.8 mm round types |
| Body Material | Plastic (PC + ABS) |
| Color | Light Grey |
| Operation Temperature | -40 C to 60 °C |
| Sealing System For Drop Cables | Mechanical |
SlimBox 48-Fiber Indoor/Outdoor Enclosure Ordering Information
| SlimBox 48-Fiber Indoor/Outdoor Enclosure Ordering Information | ||
|---|---|---|
| Comcode | Product Code | Description |
| 301135943 | SLIMBOX-V, OUTDOORMDU-48FIBER- INSIDEADP | SlimBox indoor/outdoor wall mount unit for 48 internal SC adapters (no adapters) |
| 301135950 | WSE1W-048-SV41-GRY-SCUUNC-F | SlimBox indoor/outdoor wall mount unit with 48 internal SCU adapters |
| 301135968 | WSE1W-048-SV41-GRY-SCAUNC-F | SlimBox indoor/outdoor wall mount unit with 48 internal SCA adapters |
| 301135976 | WSE1W-048-SV41-GRY-LCUUNC-F | SlimBox indoor/outdoor wall mount unit with 24 internal duplex LCU adapters |
| 301135984 | WSE1W-048-SV41-GRY-LCAUNC-F | SlimBox indoor/outdoor wall mount unit with 24 internal duplex LCA adapters |
| 301135992 | WSE1W-048-SV41-GRY-SCUUNC-F-PT | SlimBox indoor/outdoor wall mount unit with 48 internal SCU adapters and 48 SM pigtails |
| 301136008 | WSE1W-048-SV41-GRY-SCAUNC-F-PT | SlimBox indoor/outdoor wall mount unit with 48 internal SCA adapters and 48 SM pigtails |
| 301136016 | WSE1W-048-SV41-GRY-LCUUNC-F-PT | SlimBox indoor/outdoor wall mount unit with 48 internal Duplex LCU adapters and 48 SM pigtails |
| 301136024 | WSE1W-048-SV41-GRY-LCAUNC-F-PT | SlimBox indoor/outdoor wall mount unit with 24 internal Duplex LCA adapters and 48 SM pigtails |
Contact Information
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.
Trademark Notice and Disclaimer
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
