Code -
06717-01

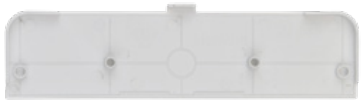

SlimBox Indoor Splice Module
The SlimBox Splice Module is a compact indoor transition point for one mechanical
or fusion splice. It allows extending the optical fiber path from an indoor/outdoor to an
indoor cable.
It may be used as a splice repair module. Inline entrance and exit accept cable or subunit

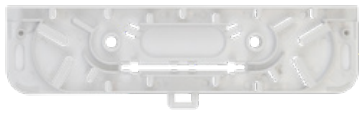

OD up to 5.0 mm. The module has internal routing and management space for 250 or
900 µm optical fiber.
The SlimBox Splice Module is a compact indoor transition point for one mechanical
or fusion splice. It allows extending the optical fiber path from an indoor/outdoor to an
indoor cable.
It may be used as a splice repair module. Inline entrance and exit accept cable or subunit
OD up to 5.0 mm. The module has internal routing and management space for 250 or
900 µm optical fiber.
Key features
- Discrete and flush installation on the wall due to the compact size
- Accepts one mechanical or fusion splice
- Compatible with cable up to a 5.0 mm outside diameter
Product Description
The SlimBox Splice Module is a compact indoor transition point for one mechanical
SlimBox Indoor Splice Module Specifications
|
SlimBox Indoor Splice Module Specifications |
|
|---|---|
|
Product Characteristics |
|
| Splice Capacity |
1 |
| Splice Type |
Mechanical or fusion |
| Fiber Type |
250 or 900 µm |
|
Physical Characteristics |
|
| Terminal Dimensions |
4.63 in. X 1.27 in. X 0.28 in. (117.5 mm X 32.3 mm X 7.0 mm) |
| Body Color |
White |
| Operating Temperature |
-40 °C to +85 °C |
| Storage Temperature |
-40 °C to +85 °C |
| Material |
Polypropylene, UL 94V-0 |
SlimBox Indoor Splice Module Ordering Information
|
SlimBox Indoor Splice Module Ordering Information |
|
|---|---|
| Comcode |
301145769 |
| Product Code |
SLIMBOX-H, INDOOR, SPLICE, 01 FIBER MODULE |
| Description |
Indoor module with accessories for wall installation |
