Code -
06824-01
SlimBox Wall Plate
The SlimBox Wall Plate serves as a termination point or a demarcation point for optical fiber in an indoor environment. An EZ-Bend® jumper would connect the SlimBox Wall Plate to a desktop ONT and the InvisiLight® ILU solution may be used in case of a distant ONT.
The SlimBox Wall Plate serves as a termination point or a demarcation point for optical fiber in an indoor environment. An EZ-Bend® jumper would connect the SlimBox Wall Plate to a desktop ONT and the InvisiLight® ILU solution may be used in case of a distant ONT.
Features And Benefits
- Allows termination of an optical cable or jumper using direct connectorization or splicing (fusion or mechanical) to optical extensions (pigtails) of two optical fibers

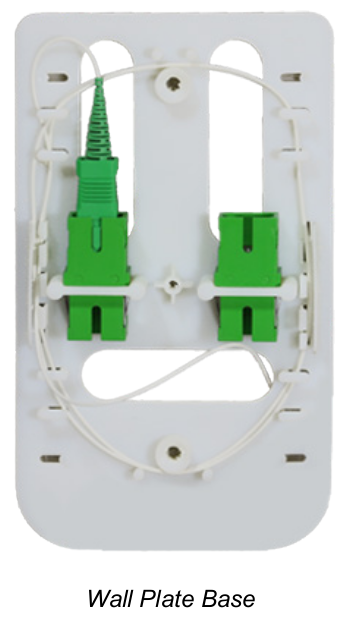

- Accommodates up to two internal optical adapters (SC footprint)
- Flexible deployment with 02 access ports on the top, 02 on the bottom and 03 through the back of the module
- Compatible with wall electrical boxes
- Compact dimensions
- Discreet appearance
- Hidden frontal screw for fast and secure cover attachment to the base
- Internal fiber guides for easy installation
- Can be installed in any vertical plane surface
- Plastic body for high mechanical resistance and efficient design
- Accommodates splice protectors (40 mm)
Product Description
The SlimBox Wall Plate serves as a termination point or a demarcation point for optical fiber in an indoor environment. An EZ-Bend® jumper would connect the SlimBox Wall Plate to a desktop ONT and the InvisiLight® ILU solution may be used in case of a distant ONT.
Product characteristics
| Product Characteristics | |
|---|---|
| Capacity |
|
| Accessories |
|
| Security | Hidden screw to close front cover |
| Application | Internal Use |
Physical Characteristics
| Physical Characteristics | |
|---|---|
| Dimensions | 4.8" H X 2.3" W X 0.74" D |
| Material | PP Plastics, UL94V-0 |
| Color | White (RAL 9016) |
| Standards |
|
Ordering Information
| Ordering Information | ||
|---|---|---|
| Comcode | Product Code | Description |
| 301122826 | SLIMBOX-V, INDOOR WALL PLATE-SC | SlimBox Wall Plate without adapter |
| 301122834 | SLIMBOX-V, INDOOR WALL PLATE-1F-SM-SCA | SlimBox Wall Plate, 1SC-APC adapter |
| 301122842 | SLIMBOX-V, INDOOR WALL PLATE-2F-SM-SCA | SlimBox Wall Plate, 2SC-APC adapters |
| The front screw cover can be customizable with a customer’s logo for larger volume purchases (contact Lightera for more information). | ||
Contact Information
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.
Trademark Notice and Disclaimer
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
