- Mainly used in Duct and Trough Installation by Cable Pulling
Code -
07232-01
Standard Dielectric Rodent Protected
Loose Tube Fibre Optic Outdoor Cable 6 Element All Dielectric Dry Core Design Standard Dielectric Rodent Protected
Loose Tube Fibre Optic Outdoor Cable 6 Element All Dielectric Dry Core Design Standard Dielectric Rodent Protected
Application
Design
- Optical Fibers
- Gel-filled Buffer Tubes
- Non-metallic Central Member
- Water Blocked Cable Core
- Double Layer of non-metallic Glass Elements
- Ripcords
- PE-Jacket
Features
- All Dielectric Rodent Protected Cable – Double layer of Glass elements for Protection against Rodents
- Dry Core Design – Cable core water blocked by means of dry “water swellable” technology – for quicker, cleaner cable prep for jointing
- Individual colored tubes

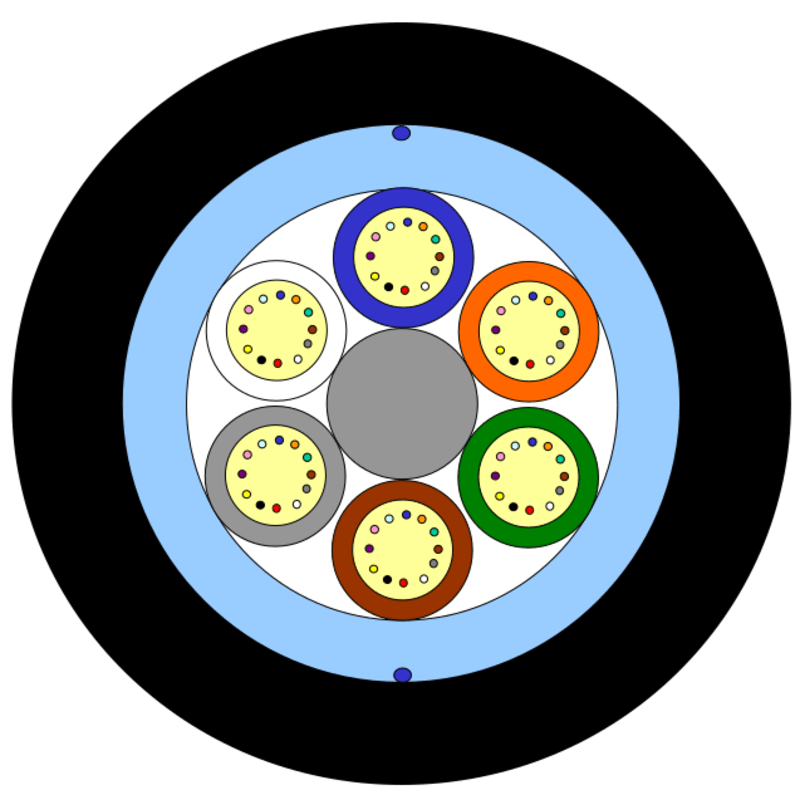

Version illustrated is the 72 Fiber Cable
Product Specification
| Product Specification | ||||||
|---|---|---|---|---|---|---|
| Fiber Count | Tubes | Core Design | Outer Diameter [mm] | Cable Weight [kg/km] | Standard Length [m] | AT-Code** |
| 12 | 1 (12F) | 1+6 (5 Fillers) | 10.9 | 100 | 2000 / 4000 / 6000 / 8000 | AT-[][][]52UT-012 |
| 24 | 2 (12F) | 1+6 (4 Fillers) | 10.9 | 100 | 2000 / 4000 / 6000 / 8000 | AT-[][][]52UT-024 |
| 36 | 3 (12F) | 1+6 (3 Fillers) | 10.9 | 100 | 2000 / 4000 / 6000 / 8000 | AT-[][][]52UT-036 |
| 48 | 4 (12F) | 1+6 (2 Fillers) | 10.9 | 100 | 2000 / 4000 / 6000 / 8000 | AT-[][][]52UT-048 |
| 60 | 5 (12F) | 1+6 (1 Fillers) | 10.9 | 100 | 2000 / 4000 / 6000 / 8000 | AT-[][][]52UT-060 |
| 72 | 6 (12F) | 1+6 (0 Fillers) | 10.9 | 100 | 2000 / 4000 / 6000 / 8000 | AT-[][][]52UT-072 |
| This table shows nominal diameter and weight values which may differ in shipments. * Fillers are natural colored **Please refer to the LIGHTERA AT-Code. The blanks specify the fiber type. |
||||||
Identification Tube and Fiber Color Code
| Identification Tube and Fiber Color Code | |
|---|---|
| 1 | Blue |
| 2 | Orange |
| 3 | Green |
| 4 | Brown |
| 5 | Grey |
| 6 | White |
| 7 | Red |
| 8 | Black |
| 9 | Yellow |
| 10 | Violet |
| 11 | Rose |
| 12 | Aqua |
Sheath Marking
LIGHTERA OPTICAL CABLE STANDARD DIELECTRIC RODENT PROTECTED [ID] [MM/YYYY] [Handset Sign] xxxF [Meter Marking]
Alternative sheath printing available on request.
In case of order the exact sheath printing text will be clarified with the customer.
Mechanical Properties and Environmental Behavior
| Mechanical Properties and Environmental Behavior | |||
|---|---|---|---|
| Tests according to IEC 60794 | |||
| Parameter | Requirement | Value | |
| Tensile Performance IEC 60794-1-21-E1 |
Long term load | – No attenuation increase* | Load: 1000 N |
| – No fiber strain | |||
| Short term load, during installation | – No changes in attenuation before versus after load | Load: 2700 N | |
| – Max. fiber strain 0.33% | |||
| Crush Performance IEC 60794-1-21-E3A |
Long term load | – No attenuation increase* | Load (Plate / Plate): 1500 N |
| Short term load | – No changes in attenuation before versus after load | Load (Plate / Plate): 2500 N | |
| – No damage** | |||
| Bending Performance IEC 60794-1-21-E11 |
Handling fixed installed | – No attenuation increase* | Bend radius: 140 mm |
| During installation (under load) | – No changes in attenuation before versus after load | Bend radius: 280 mm | |
| Temperatures IEC 60794-1-22-F1 |
Operation | – No attenuation increase* | -40 to +70°C |
| Installation | -15 to +60°C | ||
| Storage/Shipping | -40 to +70°C | ||
| * No changes in attenuation means that any changes in measurement value, either positive or negative within the uncertainty of measurement shall be ignored. The total uncertainty of measurement shall be less than of equal to 0.05 dB. ** Mechanical damage – when examined visually without magnification, there shall be no evidence of damage to the sheath. The imprint of plates will not be considered as damage. |
|||
Shipping Information
| Shipping Information | |||
|---|---|---|---|
| Cable Length | Drum Diameter | Drum Width | Shipping Weight (calc.) Cable + Drum |
| 2000 m | 1000 mm | 780 mm | 250 kg |
| 4000 m | 1400 mm | 780 mm | 486 kg |
| 6000 m | 1550 mm | 1060 mm | 730 kg |
| 8000 m | 1550 mm | 1060 mm | 930 kg |
| The shipping information are given for one-way reels. Reusable reels are available on request. | |||
Note
The information is believed to be accurate at time of issue.
Trademark Notice and Disclaimer
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
