The Lightera Toneable Mini LT Flat Drop Cable offers a compact, durable, and easy-to-locate optical fiber solution in a readily accessible construction. The fiber optic cable’s webbed design allows the locating wire to be easily separated from the main cable sheath by hand, providing simple, rapid routing and grounding of the locating wire.

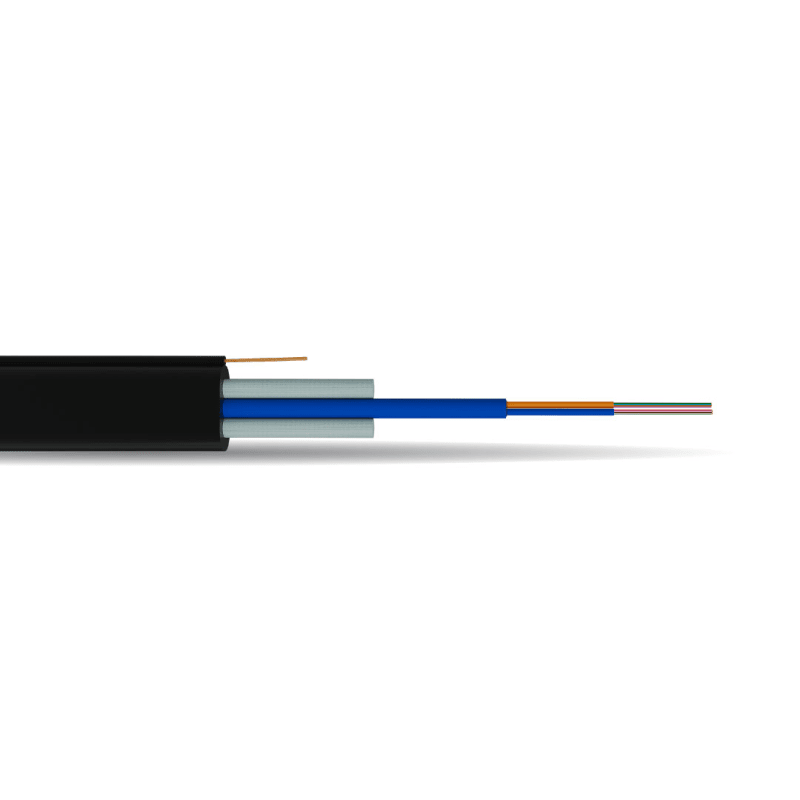

To construct the cable, up to 12 optical fibers are placed in a 2.0 mm gel-filled buffer tube to create a flexible, easy-to-access core (a 3.0 mm buffer tube for 24-fiber cable). Next, two fiberglass rods are placed diametrically opposite on either side of the fiber core, providing excellent crush resistance and tensile strength during installation and over the lifetime of the cable. A 24 AWG copper wire is aligned along the outside edge of one of the fiberglass rods to provide locatability. The locating wire, strength member rods, and fiber core are then encapsulated in a durable polyethylene (PE) jacket to create a flat cable cross section and lend added protection to the cable core. Between the locating wire and the adjacent fiberglass rod, the jacket forms a thin web that is easily separated by hand, allowing quick removal of the copper wire from the main sheath.
