Code -
06784-01
TruePhase® 14XX 250 Polarization-Maintaining Optical Fiber
TruePhase 14XX Polarization-Maintaining (PM) Optical Fiber is optimized for operation in the 1400-1490 nm band. It is well suited for Raman amplification enabling delivery of high, stable output power in this wavelength range.
TruePhase 14XX Beat Length is 3.7 mm – 4.7 mm @ 1455 nm.

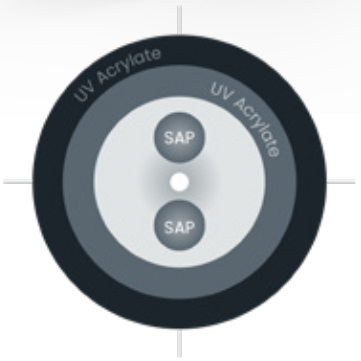

The fiber coating is a dual UV acrylate with a diameter of 250 μm . The fiber is proof tested to 200 kpsi for high reliability.
TruePhase 14XX Polarization-Maintaining (PM) Optical Fiber is optimized for operation in the 1400-1490 nm band. It is well suited for Raman amplification enabling delivery of high, stable output power in this wavelength range.
TruePhase 14XX Beat Length is 3.7 mm – 4.7 mm @ 1455 nm.
The fiber coating is a dual UV acrylate with a diameter of 250 μm . The fiber is proof tested to 200 kpsi for high reliability.
Product Overview
TruePhase 14XX Polarization-Maintaining (PM) Optical Fiber is optimized for operation in the 1400-1490 nm band. It is well suited for Raman amplification enabling delivery of high, stable output power in this wavelength range.
TruePhase 14XX Beat Length is 3.7 mm – 4.7 mm @ 1455 nm.
The fiber coating is a dual UV acrylate with a diameter of 250 μm . The fiber is proof tested to 200 kpsi for high reliability.
Typical Applications
- Polarization-Sensitive Components in Advanced Communication Systems
- Raman Gain Modules
- Raman Pump Combiners or Pump Multiplexers
- Raman Pump Pigtails
Product Specifications
| Product Specifications | |
|---|---|
| Product Description | TruePhase 14XX 250 PM Optical Fiber |
| Physical Characteristics | |
| Coating Material | Dual UV Acrylate |
| Cladding Diameter | 125 ± 1.0 µm |
| Coating/Buffer Diameter | 250 ± 10 µm |
| Clad Non-Circularity | ≤ 2.0% |
| Core/Clad Offset | ≤ 0.5 µm |
| Optical Characteristics | |
| Type | Polarization-Maintaining |
| Operating Wavelength | 1400 – 1490 nm |
| Cutoff Wavelength | ≤ 1390 nm |
| Mode Field Diameter @ 1455 nm | 9.8 ± 0.5 µm |
| Attenuation @ 1455 nm | ≤ 1.2 dB/km |
| Beat Length @ 1455 nm | 3.7 – 4.7 mm |
| Crosstalk @ 1550 nm/100 m | ≤ -30 dB |
| Crosstalk (Typical) @ 1550 nm/100 m | ≤ -35 dB |
| Numerical Aperture (Nominal) | 0.13 |
| Mechanical and Environmental | |
| Operating Temperature | -40 to +85 ºC |
| Proof Test Level | ≥ 200 kpsi (1.38 GPa) |
| Order by Part Number | BF06832-06 |
| OPTIONS | Cabling, Coating Material and Dimensions, Metalization, Optical Properties, Proof Test |
