TruePhase 14XX Polarization-Maintaining (PM) Optical Fiber is optimized for operation in the 1400-1490 nm band. It is well suited for Raman amplification enabling delivery of high, stable output power in this wavelength range.
TruePhase 14XX Beat Length is 3.7 mm – 4.7 mm @ 1455 nm.

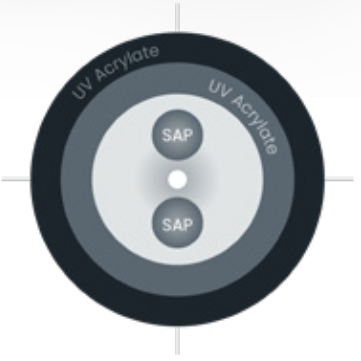

The fiber coating is a dual UV acrylate with a diameter of 400 μm. The fiber is proof tested to 200 kpsi for high reliability.
TruePhase 14XX Polarization-Maintaining (PM) Optical Fiber is optimized for operation in the 1400-1490 nm band. It is well suited for Raman amplification enabling delivery of high, stable output power in this wavelength range.
TruePhase 14XX Beat Length is 3.7 mm – 4.7 mm @ 1455 nm.
The fiber coating is a dual UV acrylate with a diameter of 400 μm. The fiber is proof tested to 200 kpsi for high reliability.
TruePhase 14XX Polarization-Maintaining (PM) Optical Fiber is optimized for operation in the 1400-1490 nm band. It is well suited for Raman amplification enabling delivery of high, stable output power in this wavelength range.
TruePhase 14XX Beat Length is 3.7 mm – 4.7 mm @ 1455 nm.
The fiber coating is a dual UV acrylate with a diameter of 400 μm. The fiber is proof tested to 200 kpsi for high reliability.
| Product Specifications | |
|---|---|
| Product Description | TruePhase 14XX 400 PM Optical Fiber |
| Physical Characteristics | |
| Coating Material | Dual UV Acrylate |
| Cladding Diameter | 125 ± 1.0 µm |
| Coating/Buffer Diameter | 400 ± 15 µm |
| Clad Non-Circularity | ≤ 2.0% |
| Core/Clad Offset | ≤ 0.5 µm |
| Optical Characteristics | |
| Type | Polarization-Maintaining |
| Operating Wavelength | 1400 – 1490 nm |
| Cutoff Wavelength | ≤ 1390 nm |
| Mode Field Diameter @ 1455 nm | 9.8 ± 0.5 µm |
| Attenuation @ 1455 nm | ≤ 1.2 dB/km |
| Beat Length @ 1455 nm | 3.7 – 4.7 mm |
| Crosstalk @ 1550 nm/100 m | ≤ -30 dB |
| Crosstalk (Typical) @ 1550 nm/100 m | ≤ -35 dB |
| Numerical Aperture (Nominal) | 0.13 |
| Mechanical and Environmental | |
| Operating Temperature | -40 to +85 ºC |
| Proof Test Level | ≥ 200 kpsi (1.38 GPa) |
| Order by Part Number | BF06832-11 |
| OPTIONS | Cabling, Coating Material and Dimensions, Metalization, Optical Properties, Proof Test |
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
