AccuRiser™ 250 µm Rollable Ribbon Fiber Optic Cable

Product Name

Features

OFS rollable ribbon technology
Compact, flexible design Indoor/outdoor rated
Highly crush-resistant central core
Low Smoke/Zero Halogen (LSZH) materials
Dual Flame Rating (OFNR and CPR rated) Complies with ICEA-S-696 Standard
Fiber counts of 144 to 864
Excellent water-penetration resistance
Available in single-mode or multimode OM4 fiber

Benefits

Rollable ribbons help enable smaller cable outer diameter (OD) and reduced weight versus traditional ribbon cable designs
Optimized for fast, cost-effective mass fusion splicing
Dual flame rating promotes global use and reduces regional code selection issues
High fiber density helps save on valuable space
Cable flexibility simplifies handling and installation

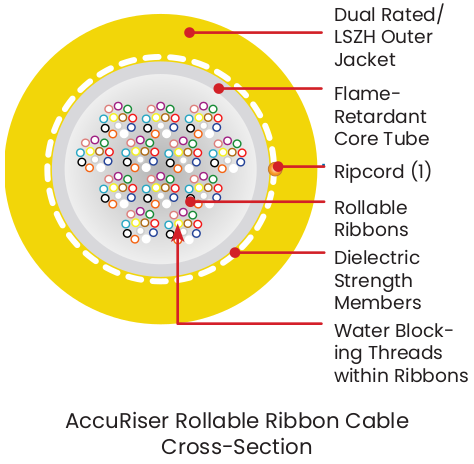

Product Description

The AccuRiser Rollable Ribbon (RR) Cable was specifically designed to offer high fiber density and excellent carrying capacity. This compact cable features rollable ribbons, OFS' newest optical fiber ribbon design. These ribbons help enable highly efficient ribbon splicing and easy individual fiber breakout. This ribbon design may also be 'rolled' (compacted) and routed like individual fibers to facilitate use in smaller closures and splice trays.

Why To Use It

Every element of the AccuRiser Rollable Ribbon Cable was designed to offer high fiber density while helping to speed installation during a new data center or central office deployment. The 12-fiber rollable ribbons allow splice-in-place operations that help to get a facility up and running quickly. This strong yet flexible cable helps to ease cable installation over ladder racking and through tight bends during routing as well as smoothing and speeding installation. The compact design also improves ladder rack utilization (more cables in the same space). The AccuRiser Rollable Ribbon Cable is an excellent choice for building-to-building cable connections. This cable also removes the need for intermediate splice points for transitions from the outdoor environment to indoor use. Reducing the number of splices can help result in improved system loss and lower termination points within a network. The cable is also well suited for routing for terminations and frames as well as preconnectorized applications.

Fiber Count

144

Cable Outer Diameter in. (mm)

0.41 (10.5)

Cable Weight lb/kft (kgm/km)

82 (122)

Maximum Tensile Rating lb (N)

600 (2670)

Minimum Bend Diameter/Static Condition Unload (installed) – in. (mm)

6 (153)

Dynamic Condition Loaded During Installation 40 X OD – in. (mm)

17 (432)

Storage Coil 40 x OD – in. (mm)

17 (432)

CPR Rating

Cca-s2, d1, a1

Fiber Count

288

Cable Outer Diameter in. (mm)

0.49 (12.5)

Cable Weight lb/kft (kgm/km)

113 (168)

Maximum Tensile Rating lb (N)

600 (2670)

Minimum Bend Diameter/Static Condition Unload (installed) – in. (mm)

6 (153)

Dynamic Condition Loaded During Installation 40 X OD – in. (mm)

20 (508)

Storage Coil 40 x OD – in. (mm)

20 (508)

CPR Rating

Cca-s1a, d1, a1

Fiber Count

432

Cable Outer Diameter in. (mm)

0.61 (15.5)

Cable Weight lb/kft (kgm/km)

171 (254)

Maximum Tensile Rating lb (N)

600 (2670)

Minimum Bend Diameter/Static Condition Unload (installed) – in. (mm)

8 (204)

Dynamic Condition Loaded During Installation 40 X OD – in. (mm)

24.4 (620)

Storage Coil 40 x OD – in. (mm)

24.4 (620)

CPR Rating

Cca-s1b, d0, a1

Fiber Count

576

Cable Outer Diameter in. (mm)

0.67 (17)

Cable Weight lb/kft (kgm/km)

190 (283)

Maximum Tensile Rating lb (N)

600 (2670)

Minimum Bend Diameter/Static Condition Unload (installed) – in. (mm)

10 (254)

Dynamic Condition Loaded During Installation 40 X OD – in. (mm)

26.8 (681)

Storage Coil 40 x OD – in. (mm)

26.8 (681)

CPR Rating

Cca-s1b, d0, a1

Fiber Count

864

Cable Outer Diameter in. (mm)

0.77 (19.5)

Cable Weight lb/kft (kgm/km)

244 (363)

Maximum Tensile Rating lb (N)

600 (2670)

Minimum Bend Diameter/Static Condition Unload (installed) – in. (mm)

12 (305)

Dynamic Condition Loaded During Installation 40 X OD – in. (mm)

30.8 (783)

Storage Coil 40 x OD – in. (mm)

30.8 (783)

CPR Rating

Cca-s1b, d0, a1

Performance Standard

The AccuRiser Rollable Ribbon Cable meets allor portions of Telcordia GR-409/ICEA-S-83-696/ICEA-S-104-696/ICEA-S-115-730 and TIA-568.Riser-rated cables are UL® listed as compliantwith NEC® Article 770 as type OFNR.

Temperature Installation

-4 °F to 140 °F (-20 °C to 60 °C)

Temperature Operation

-40 °F to 158 °F (-40 °C to 70 °C)

Temperature Storage

-40 °F to 158 °F (-40 °C to 70 °C)

Code

A

Single-mode Descriptor

AllWave®+ ZWP Bend-Optimized Single-Mode Optical Fiber

Grade

G.657.A1

1310 nm

0.5 (dB/km)

1550 nm

0.5

MCA (Z)

5

Code

V

Single-mode Descriptor

AllWave A2 9.2 Single-Mode Optical Fiber

Grade

G.657.A2

1310 nm

0.4 (dB/km)

1550 nm

0.3

MCA (Z)

4

Code

W

Single-mode Descriptor

AllWave FLEX+ ZWP Bend-Optimized Single-Mode Optical Fiber

Grade

G.657.A2

1310 nm

0.4 (dB/km)

1550 nm

0.3

MCA (Z)

4

Code

5

Multimode Descriptor

LaserWave® FLEX 550 Optical Fibe

Grade

OM4

1310 nm

45780

1550 nm

45778

MCA (Z)

G

Code

5

Multimode Descriptor

LaserWave Dual-Band Optical Fiber

Grade

OM4+

1310 nm

45780

1550 nm

45778

MCA (Z)

G

Code

4

Multimode Descriptor

LaserWave Wideband Optial Fiber

Grade

OM5

1310 nm

45780

1550 nm

45778

MCA (Z)

G

Example

8RIO-288B-WDK-4-12-250¹

Short Description

8RIO-NNNV-WXY-Z-UU-DDD

8RIO

AccuRiser Rollable Ribbon Indoor/Outdoor Cable

NNN

Fiber Count: 144, 288, 432, 576, or 864

V

Version (See Chart)

W

Fiber Type (See Chart)

X

Jacket Material (Flame Retardant)D = Dual Rated Low Smoke/Zero Halogen(UL 1666 and CPR Rated)

Y

Y = Jacket ColorK = BlackY = YellowT = Black with Two Yellow StripesA = AquaL = Lime

Z

Z = Maximum Cable Attenuation (See Chart)

UU

Fiber Groupings or Ribbon Type = 12

DDD

Fiber Outer Diameter = 250 µm

Note

Other colors available upon customer request.

Part Number Information

Part Number shown is for an AccuRiser Rollable Ribbon Indoor/Outdoor Cable with 288 AllWave+ ZWP Fibers and standard cableprint. OFS G.657.A2 I/O OPTICAL CABLE -C- 8RIO-288B-WDK-4-12-250 9/125 OFNG-FT4-ST1 c(UL) OFNR-ST1 LSZH CPR {MM/YY}{Lot No} {LENGTH IN FEET}
