Descontinuado

Code - 07058-01

EZ-Bend 3.0 Ruggedized Assembly

The EZ-Bend 3.0 Ruggedized Assembly is the first 3 mm optical drop designed to

withstand stapling while exhibiting negligible bend loss to help save time and money

on installation. The innovative design can conquer sharp corners without the need

for bend management and is ideal for MDU and in-home wiring applications where

space is at a premium. It offers all the advantages of ultra bend-insensitive EZ-Bend

Cables plus the benefits of factory-tuned termination.

The EZ-Bend 3.0 Ruggedized Assembly is the first 3 mm optical drop designed to

withstand stapling while exhibiting negligible bend loss to help save time and money

on installation. The innovative design can conquer sharp corners without the need

for bend management and is ideal for MDU and in-home wiring applications where

space is at a premium. It offers all the advantages of ultra bend-insensitive EZ-Bend

Cables plus the benefits of factory-tuned termination.

Features

Available in 3.0 diameter cordage in an indoor/outdoor construction
Less than 0.1 dB macrobending attenuation at 1550 nm for 1 turn at 2.5 mm fiber bend radius
Solid construction fiber with macrobending performance far better than ITU G.657.B3 requirements
Backward compatible with installed G.652.D fibers
Available as single or double ended SCA terminated cables with 0.15 dB Mean Loss (single fiber constructions)
Also available as boxed cable for splicing that can be easily managed by a single technician
Insertion Loss: 0.5 dB Return Loss: -65 dB Mating Durability: 100

Benefits

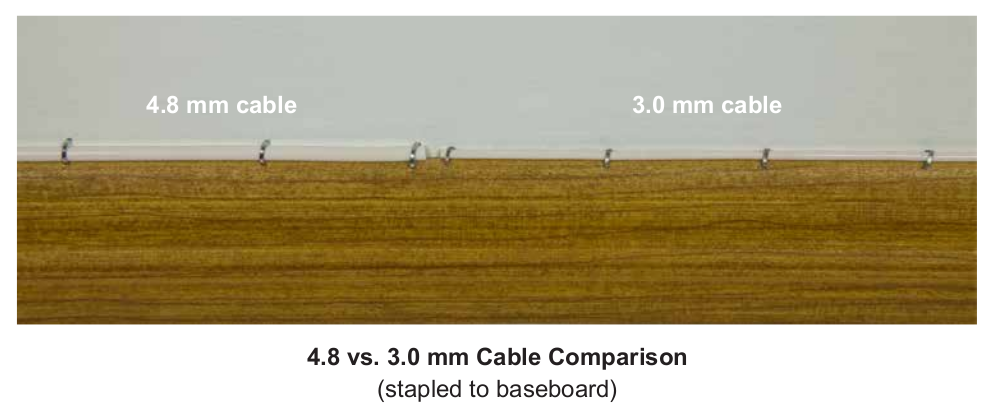

Staple friendly: Ruggedized cords designed to allow common stapling methods
MDU and In-Home Optimized: Ideal for in-residence wiring and difficult installation routes in MDU overbuilds
Faster, easier installation: no extra steps to install bend limiters, conduits, or raceways
Compact installation and storage: Conforms to building; slack fits in small spaces
Fast, easy, low loss splicing to G.652.D fiber with existing core and clad aligned splice equipment

Product Description

The EZ-Bend 3.0 Ruggedized Assembly is the first 3 mm optical drop designed to

withstand stapling while exhibiting negligible bend loss to help save time and money

on installation. The innovative design can conquer sharp corners without the need

for bend management and is ideal for MDU and in-home wiring applications where

space is at a premium. It offers all the advantages of ultra bend-insensitive EZ-Bend

Cables plus the benefits of factory-tuned termination.


EZ-Bend 3.0 Ruggedized Assembly

EXAMPLE ORDERING CODES

EXAMPLE ORDERING CODES
Code	Description
JRVDK001SCASCAnnnF	3.0 mm black ruggedized Indoor/Outdoor single fiber SCA to SCA with a specified length in place of nnn
JRVDK001SCAUNCnnnF	3.0 mm black ruggedized Indoor/Outdoor single fiber SCA to UNC with a specified length in place of nnn
JRVDW001SCASCAnnnF	3.0 mm white ruggedized Indoor/Outdoor single fiber SCA to SCA with a specified length in place of nnn
JRVDW001SCAUNCnnnF	3.0 mm white ruggedized Indoor/Outdoor single fiber SCA to UNC with a specified length in place of nnn

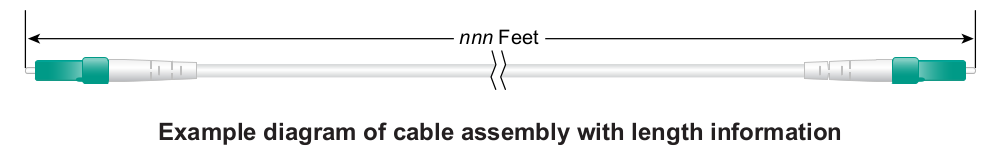

nnn = footage (Lengths in boxes up to 1,500 feet) Length of assembly specified in feet (F) or meters (M) Other connector types such as LCU, SCU and LCA are available upon request
STANDARD PACKAGING: For length up to 150' coiled type; For length superior to 150', jumper is supplied on the spool; nnn Feet


EZ-Bend 3.0 Ruggedized Assembly


EZ-Bend 3.0 Ruggedized Assembly

Contact Information

For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.

Trademark Notice and Disclaimer

Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
