The InvisiLight Drop Solution offers a faster, virtually invisible way to extend Lightera EZ-Bend drop cable from outside to inside the living unit. It allows the installer to remove a length of the EZ-Bend drop cable’s outer jacket to expose the InvisiLight fiber inside, then use the InvisiLight installation process to affix the fiber to the wall to reach an adapter inside a SlimBox™ Wall Plate or wall mount ONT. From the SlimBox Wall plate, an EZ-Bend jumper may be used to connect to a desktop ONT. The solution kit features the components and instructions needed to properly route the InvisiLight fiber along and through walls. Sold separately are the application adhesive, adhesive installation tools, and a tool to easily remove the EZ-Bend drop cable’s outer jacket.
The InvisiLight Drop Solution offers a faster, virtually invisible way to extend Lightera EZ-Bend drop cable from outside to inside the living unit. It allows the installer to remove a length of the EZ-Bend drop cable’s outer jacket to expose the InvisiLight fiber inside, then use the InvisiLight installation process to affix the fiber to the wall to reach an adapter inside a SlimBox™ Wall Plate or wall mount ONT. From the SlimBox Wall plate, an EZ-Bend jumper may be used to connect to a desktop ONT. The solution kit features the components and instructions needed to properly route the InvisiLight fiber along and through walls. Sold separately are the application adhesive, adhesive installation tools, and a tool to easily remove the EZ-Bend drop cable’s outer jacket.
The InvisiLight Drop Solution offers a faster, virtually invisible way to extend Lightera EZ-Bend drop cable from outside to inside the living unit. It allows the installer to remove a length of the EZ-Bend drop cable’s outer jacket to expose the InvisiLight fiber inside, then use the InvisiLight installation process to affix the fiber to the wall to reach an adapter inside a SlimBox™ Wall Plate or wall mount ONT. From the SlimBox Wall plate, an EZ-Bend jumper may be used to connect to a desktop ONT. The solution kit features the components and instructions needed to properly route the InvisiLight fiber along and through walls. Sold separately are the application adhesive, adhesive installation tools, and a tool to easily remove the EZ-Bend drop cable’s outer jacket.
1 Outdoor EZ-Bend drop cable
2 Plug and cap between outside and inside home
3 Interior and exterior corners for the installation of the InvisiLight fiber
4 900µm InvisiLight fiber
5 SlimBox Wall plate for connection to the desktop ONT or to the InvisiLight ILU solution
6 Optional InvisiLight ILU Module connected to the Wall Plate
| Product Characteristics | |
|---|---|
| Kit Composition | |
| Cap, Hole Plug | 10 units |
| Plug, Wall Hole | 10 units |
| ISE Bend Limiters (interior Corner) | 10 units |
| OSE Bend Limiters (exterior Corner) | 10 units |
| Corner Anchor | 10 units |

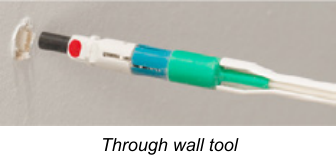

| Wall Through Tool | One (1) unit |
| Instruction Sheet | 1 unit |
| Warranty | 12 Months |
| Application | Internal Use |
| Ordering Information | |
| NVSLGHTC-SUPPLEMENTAL ROUTING KIT | 301079802 |
| Complementary Products | |
|---|---|
| TOOL, MS06-2.0MM-3.0MM BLUE | 301124988 |
| NVSLGHTC-MINI DISPENSING TOOL | 301079109 |
| NVSLGHTC-TUBE, 30MM ADHESIVE PKG 1 | 301083184 |
| NVSLGHTC-TUBE, 30MM ADHESIVE PKG 25 | 301079117 |
| NVSLGHTC-TUBE, 30MM ADHESIVE PKG 50 | 301079125 |
| NVSLGHTC-TUBE, 30MM ADHESIVE PKG 100 | 301079133 |
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
