S178LDF Core Alignment Large Diameter Fiber Fusion Splicer
S178LDF Core Alignment Large Diameter Fiber Fusion Splicer

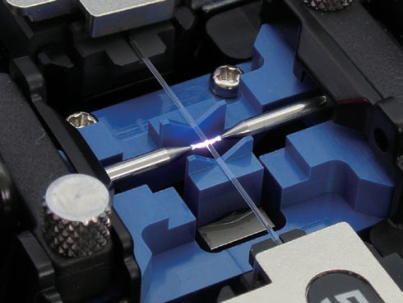

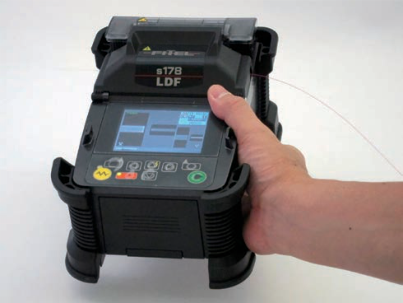

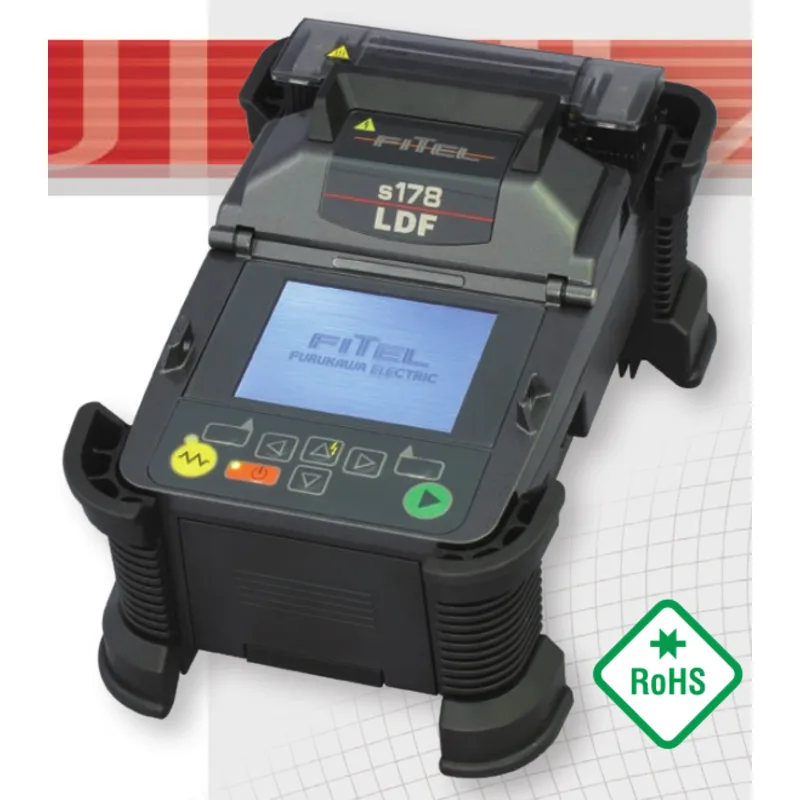

The FITEL S178LDF Core Alignment Large Diameter Fiber Fusion Splicer is able to splice fibers of up to 450µm in cladding diameter. Its robust, compact and hand-held design allows the operator to use it at any location. The fast splicing and heating, as well as simple operation, maximize the working efficiency.
| Specification | ||
|---|---|---|
| Applicable Fibers | LDF, SM, MM | |
| Cladding Diameter | 125 to 450µm | |
| Coating Diameter | 150 to 2000µm | |
| Fiber Cleave Length | 10mm | |
| Average Splice Loss | SM: 0.02dB, MM: 0.01dB (125µm cladding fiber) | |
| Splice Time | 9 seconds (125µm cladding SM fiber) | |
| Heat Time *1) | 31 seconds *1) (S922: 40mm Sleeve, S921: 60mm Sleeve) | |
| Splice Programs | Max. 150 | |
| Heat Programs | Max. 18 | |
| Applicable Sleeves | 20 / 40 / 60 mm | |
| Splice Memory | Max. 2000 | |
| Dimension | 159 W X 231D X 130 H mm (including shock absorber) | |
| Weight | 1.9 kg (without battery) | |
| Monitor | 3.5" color LCD monitor | |
| Data Output | USB ver.2.0 mini | |
| Battery Capacity *2) | Typical 60 splice / heat cycles with single battery | |
| Operating Temperature | -10 to +50°C (0 to 95% Relative Humidity [Non-Condensing]) | |
| Storage Temperature | -40 to +60°C (0 to 95% Relative Humidity [Non-Condensing]) | |
| Humidity | 0 to 95% Relative Humidity (Non-Condensing) | |
| Power Source | AC Input 100 to 240 V (50/60Hz), DC Input 11 to 17 V | |
| Note | * 1) The first heating after turning on the power can be longer than the usual heating time. | |
| Note | *2) The number of splicing and heatingcyclesthemachinecan produceusingafully charged brandnew battery at room temperature of 20°C, semi-auto mode for splicing 125μm cladding fiber and regular mode for heating. Depending on the condition of the battery and operation environment, the number can vary. | |

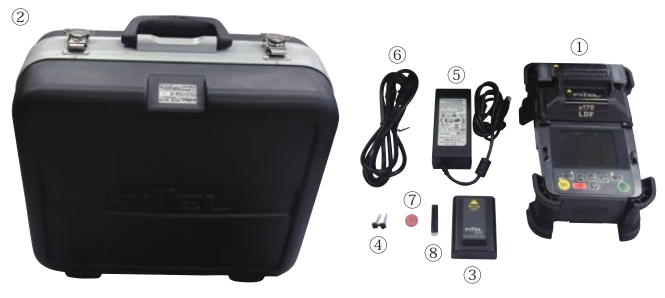

| Standard Package | ||
|---|---|---|
| Item | P/N | Quantity |
| S178LDF Main Body *3) | S178-L-A-0001 | 1 |
| 2 Hard Carrying Case | HCC-01 | 1 |
| 3 Battery Pack | S943B | 1 |
| 4 Spare Electrodes | S969 | 1pair |
| 5 AC Adapter for S178LDF | S976B | 1 |
| 6 AC Cable Cord | – | 1 |
| 7 Electrode Sharpener | D5111 | 1 |
| 8 Cleaning Brush | VGC-01 | 1 |
| User Manual | FTS-B410 | 1 |
| * 3) Without Fiber Holder | ||

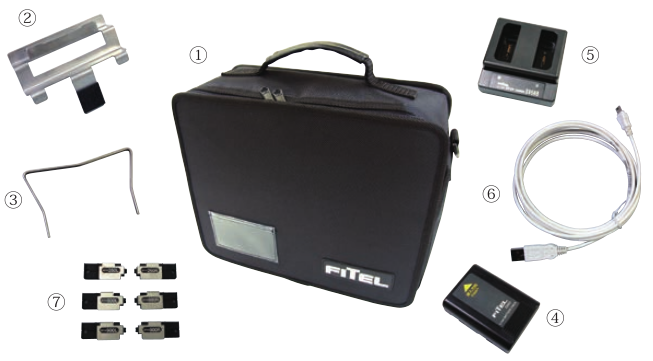

| Optional Accessories | ||
|---|---|---|
| Item | P/N | Quantity |
| 1 Soft Carrying Case | SCC-01 | 1 |
| 2 Cooling Tray | CTX-01 | 1 |
| 3 Angled Stand | AGS-01 | 1 |
| 4 Battery Pack | S943B | 1 |
| 5 Battery Charger | S958C | 1 |
| 6 USB Cable | USB-01 | 1 |
| 7 Removable Fiber holder *4) | ||
| Item | P/N | Quantity |
| 250μm coating diameter fiber | S712S-250 | 1pair |
| 500μm coating diameter fiber | S712S-500 | 1pair |
| 900μm coating diameter fiber | S712S-900 | 1pair |
| * 4) Fiber holders in other coating size are available. Please inform us about the coating diameter in the range of 150-2000pm. | ||
