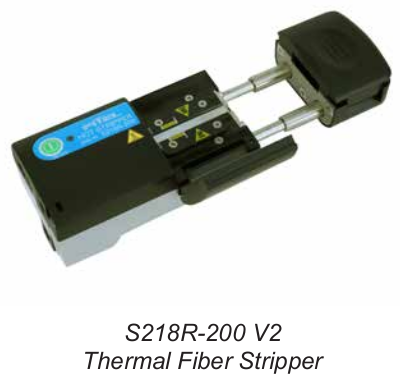

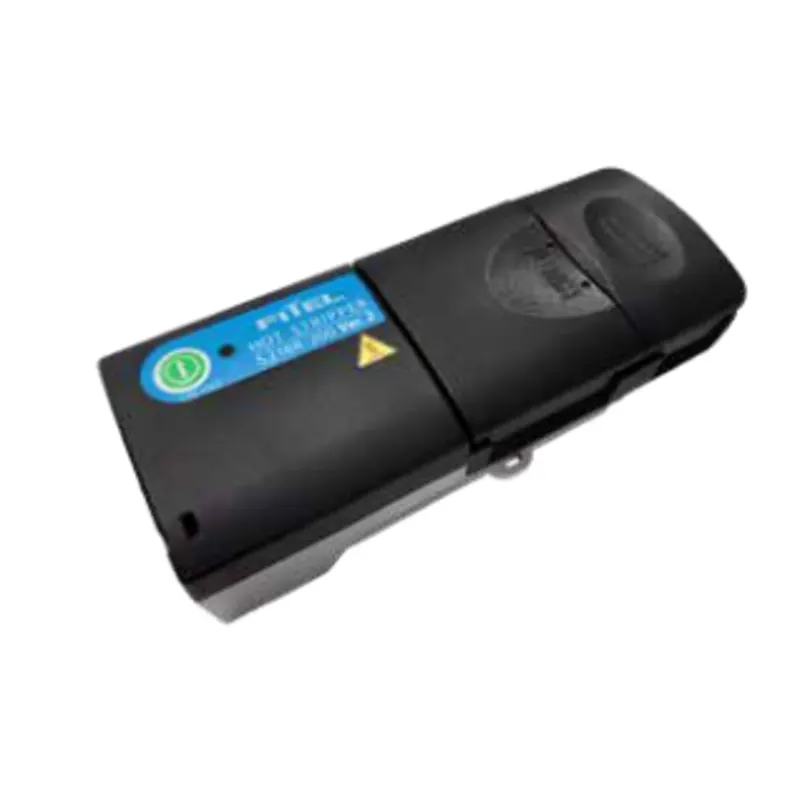

S218R-200 V2 Hand Held Thermal Fiber Stripper
S218R-200 V2 Hand Held Thermal Fiber Stripper
| Product Specifications | |
|---|---|
| Applicable Fibers | All fiber types |
| Fiber Count | Single fiber 2-16 rollable ribbon fiber |
| Clad Diameter | 0.125 mm |
| Coating Diameter | 0.2 mm to 0.4 mm for single fiber; 0.3 mm to 0.4 mm thickness for ribbons |
| Coating Removal Length | 25 mm ~ 35 mm |
| Power Source* | DC 11 ~ 14 V, AC 85 ~ 264 V *using S952 AC Adapter |
| Battery Running Time | Approximately 10 hrs |
| Charge Time* | Approximately 2.5 hrs. *when unit is in off position |
| Operating Environment* | Temperature: 0 ~ 40° C Humidity: Below 95% *non-condensing |
| Dimensions/Weight* | 125Wx48Dx41H mm, 260 g *weight including battery |
Silica glass-based optical fibers, single fiber, 0.2 mm ribbon and 0.9 mm ribbon coating diameter, 0.125 clad diameter.

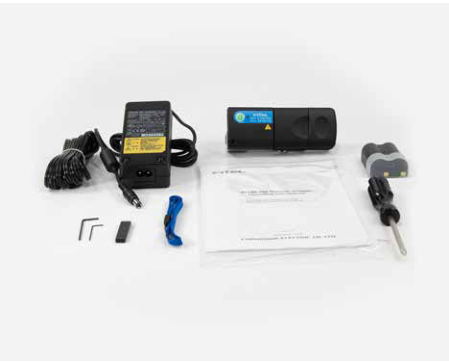

| Standard Package | |||
|---|---|---|---|
| Item | Component | Model | Quantity |
| S218R-200 V2 | Main body | S218R-200-01 | 1 pcs |
| AC Adapter | S952 | 1 pcs | |
| Battery | S944 | 1 pcs | |
| Case | S218X-04 | 1 pcs | |
| Hexagon Wrench | S218X-07 | 1 pcs | |
| Strap | – | 1 pcs | |
| Cleaning Blush | VGC-01 | 1 pcs | |
| Operating Instruction | FTS-B580 | 1 pcs | |
| Optional Parts S218R-200 V2 | Spare Blade | S218X-55 | |
| Stand for S218R | S218X-23 | ||
| Spacer | S218-22 | ||
| Single fiber adapter | S218X-03 | ||
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
