Code -
07044-01

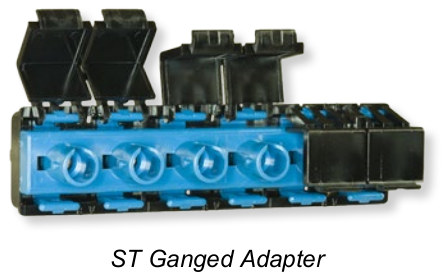

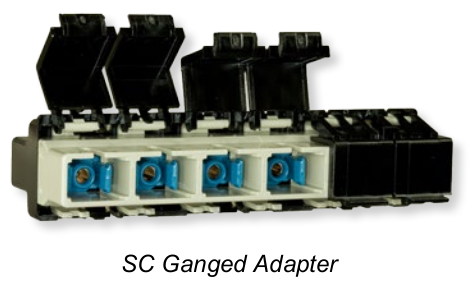

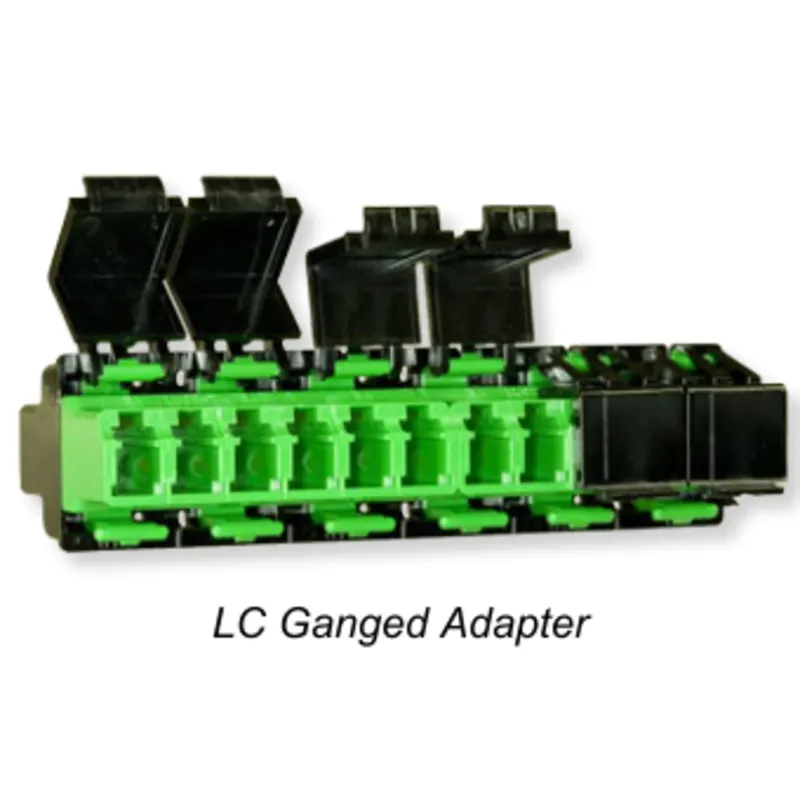

Ganged Adapters LC, SC, and ST
Today’s optical designs demand innovative solutions. The Lightera ganged adapter system is a unique high-density product that allows for standard port cutouts that deliver density in a flexible design. The ganged adapter is available in multimode, single-mode, and angled connector types. This high-performance system is available in LC, SC, and ST optical connector formats, all within the same face-plate cutout.
Today’s optical designs demand innovative solutions. The Lightera ganged adapter system is a unique high-density product that allows for standard port cutouts that deliver density in a flexible design. The ganged adapter is available in multimode, single-mode, and angled connector types. This high-performance system is available in LC, SC, and ST optical connector formats, all within the same face-plate cutout.
Features
- LC 12 ports per adapter
- SC & ST 6 ports per adapter

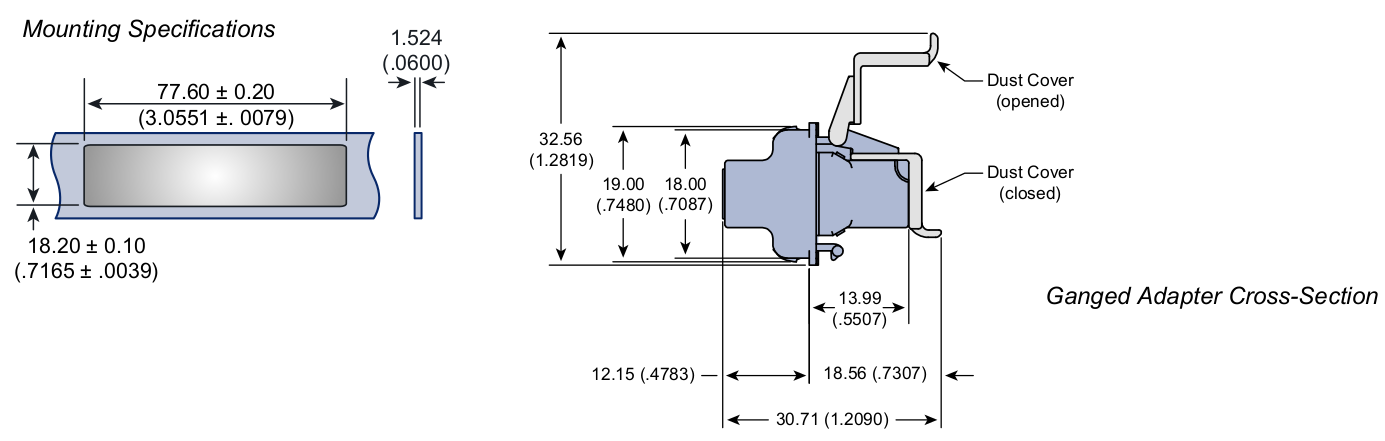

- ≈ 0.78 in. wide x 3 in. long x 1.3 in. deep
- ≈ 19.8 mm wide x 76.2 mm long x 33 mm deep
- Built-in dust covers (removable)
- Simplification of product offerings
- Available in multiple connector types (LC, SC, ST)
- Split adapter structure
Benefits
- Rapid field installation
- Excellent for high-density face-plate applications
- Reduces number of face-plate patterns
- Simplifies the number of product offerings in frame management hardware
- Services single-mode, multimode or angled connector products
- Built-in dust cover protects front connections
- Allows mix of adapter types within a ganged adapter
- Facilitates cleaning connectors with a unique split adapter structure
Product Description
Today’s optical designs demand innovative solutions. The Lightera ganged adapter system is a unique high-density product that allows for standard port cutouts that deliver density in a flexible design. The ganged adapter is available in multimode, single-mode, and angled connector types. This high-performance system is available in LC, SC, and ST optical connector formats, all within the same face-plate cutout.
Ordering Information
| Ordering Information | |||
|---|---|---|---|
| 6-Port ST Ganged Adapters |
|||
| Description | Color | Product Code | Comcode |
| Multimode Adapter Strip Single Pack | Beige | C6MMST-1 | 300395860 |
| Multimode Adapter Strip 10 Pack | Beige | C6MMST-10PK | 108918459 |
| Multimode Adapter Strip 20 Pack | Beige | C6MMST-20PK | 300472784 |
| Multimode LaserWave Adapter Strip Single Pack | Aqua | C6MMST-LW-1 | 300395845 |
| Multimode LaserWave Adapter Strip 10 Pack | Aqua | C6MMST-LW-10PK | 300442696 |
| Multimode LaserWave Adapter Strip 20 Pack | Aqua | C6MMST-LW-20PK | 300472792 |
| Single-Mode Zirconia Sleeve Adapter Strip Single Pack | Blue | C6SMST-Z-1 | 300472891 |
| Single-Mode Zirconia Sleeve Adapter Strip 20 Pack | Blue | C6SMST-Z-20PK | 300472925 |
| 6-Port SC Ganged Adapters |
|||
| Description | Color | Product Code | Comcode |
| Multimode Adapter Strip Single Pack | Beige | C6MMSC-1 | 300395852 |
| Multimode Adapter Strip 10 Pack | Beige | C6MMSC-10PK | 108918442 |
| Multimode Adapter Strip 20 Pack | Beige | C6MMSC-20PK | 300472768 |
| Multimode LaserWave Adapter Strip Single Pack | Aqua | C6MMSC-LW-1 | 300395837 |
| Multimode LaserWave Adapter Strip 10 Pack | Aqua | C6MMSC-LW-10PK | 108911413 |
| Multimode LaserWave Adapter Strip 20 Pack | Aqua | C6MMSC-LW-20PK | 300472776 |
| Single-Mode Zirconia Sleeve Adapter Strip Single Pack | Blue | C6SMSC-Z-1 | 300472867 |
| Single-Mode Zirconia Sleeve Adapter Strip 10 Pack | Blue | C6SMSC-Z-10PK | 300472875 |
| Single-Mode Zirconia Sleeve Adapter Strip 20 Pack | Blue | C6SMSC-Z-20PK | 300472883 |
| Angled-Polish Zirconia Sleeve Adapter Strip Single Pack |
|||
| Description | Color | Product Code | Comcode |
| Angled-Polish Zirconia Sleeve Adapter Strip Single Pack | Green | C6APSC-Z-1 | 108134974 |
| 12-Port LC Ganged Adapters |
|||
| Description | Color | Product Code | Comcode |
| Multimode Adapter Strip Single Pack | Beige | C12MMLC-1 | 300395878 |
| Multimode Adapter Strip 10 Pack | Beige | C12MMLC-10PK | 108918467 |
| Multimode Adapter Strip 20 Pack | Beige | C12MMLC-20PK | 300472818 |
| Multimode LaserWave Adapter Strip Single Pack | Aqua | C12MMLC-LW-1 | 300395829 |
| Multimode LaserWave Adapter Strip 10 Pack | Aqua | C12MMLC-LW-10PK | 108911009 |
| Multimode LaserWave Adapter Strip 20 Pack | Aqua | C12MMLC-LW-20PK | 300472826 |
| Single-Mode Zirconia Sleeve Adapter Strip 10 Pack | Blue | C12SMLC-Z-10PK | 300472842 |
| Single-Mode Zirconia Sleeve Adapter Strip 20 Pack | Blue | C12SMLC-Z-20PK | 300472859 |
Contact Information
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.
Trademark Notice and Disclaimer
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
