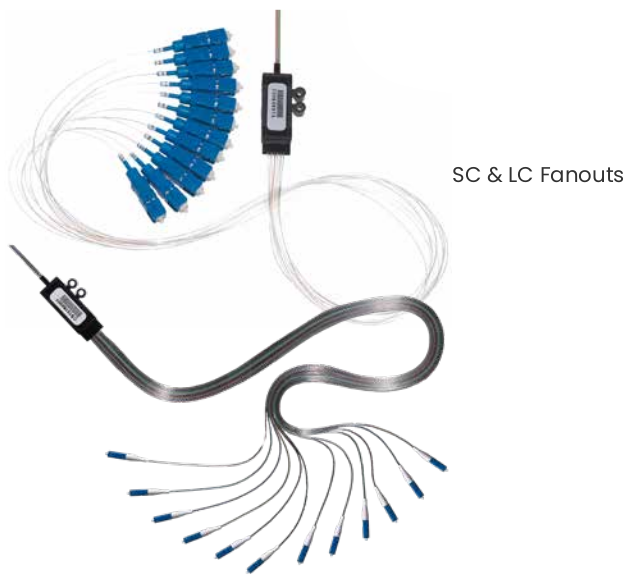

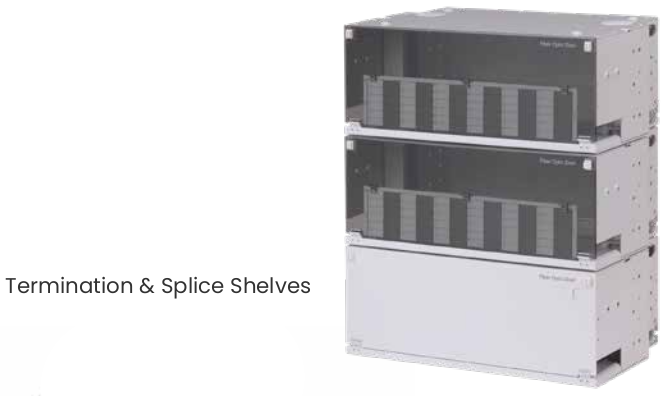

The Lightera LGX® Combination Shelves are the original optiacl fiber frame solution. Customize your installation with this fast installation design. These units are a combination of 7” or 9” Termination Shelves with splice units and fanouts installed. Ask Lightera to create your custom configuration from as small as 12 fibers up to our grand 864 fiber solution. All combination units are factory assembled allowing a rapid installation. Direct splicing in single or mass fusion configurations are available. Select from existing designs or work with your local representative for a customized solution.

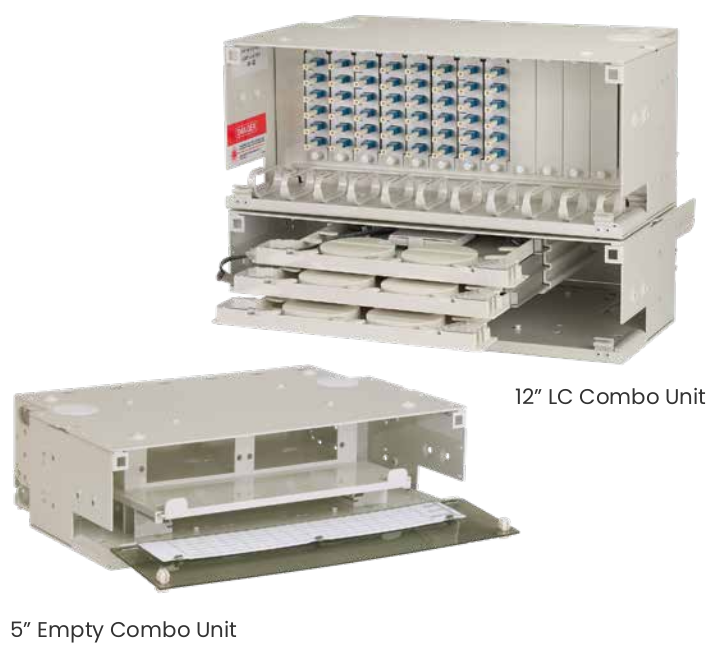

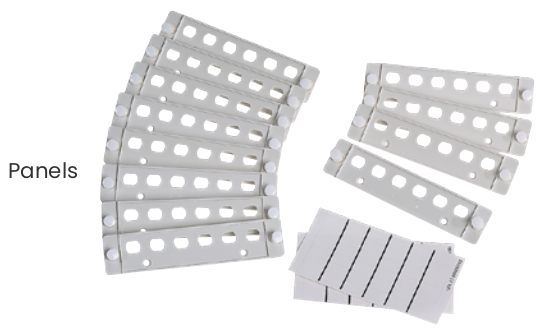

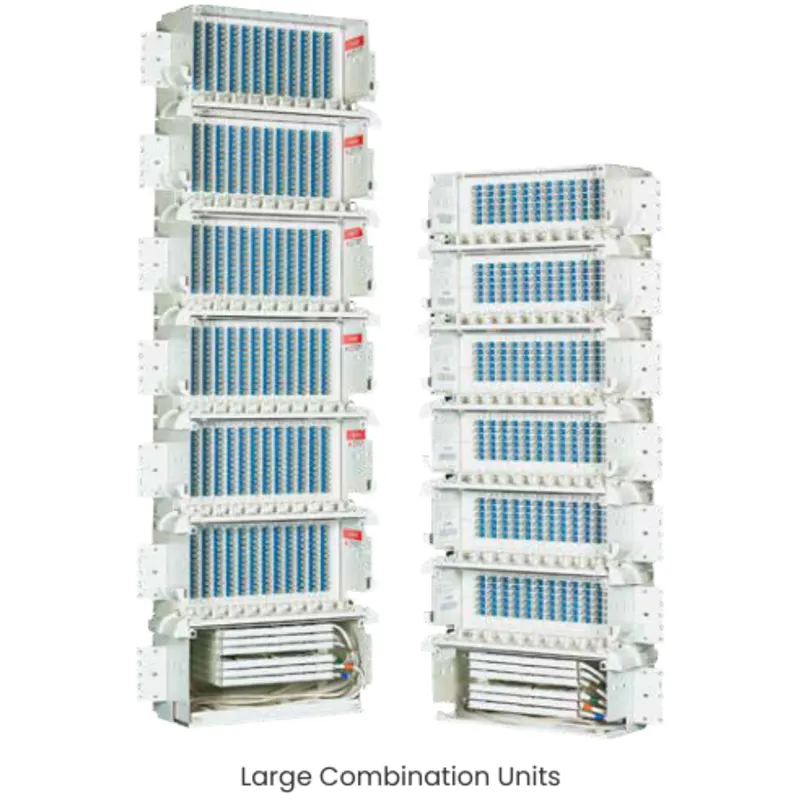

The LGX Combination Unit is a versatile system of optical cable management boxes, which can be configured in many ways. Mix and match adapter panels to configure your system with LC, SC or ST type adapters. The pre-assembled system allows for rapid frame mounting, the elimination of a cable entry transition box (proper fire ratings must apply) and removes infield assembly work. Contact Lightera to help with pre-assembled configurations which speed installation time.
The Lightera LGX® Combination Shelves are the original optiacl fiber frame solution. Customize your installation with this fast installation design. These units are a combination of 7” or 9” Termination Shelves with splice units and fanouts installed. Ask Lightera to create your custom configuration from as small as 12 fibers up to our grand 864 fiber solution. All combination units are factory assembled allowing a rapid installation. Direct splicing in single or mass fusion configurations are available. Select from existing designs or work with your local representative for a customized solution.
The LGX Combination Unit is a versatile system of optical cable management boxes, which can be configured in many ways. Mix and match adapter panels to configure your system with LC, SC or ST type adapters. The pre-assembled system allows for rapid frame mounting, the elimination of a cable entry transition box (proper fire ratings must apply) and removes infield assembly work. Contact Lightera to help with pre-assembled configurations which speed installation time.
The Lightera LGX® Combination Shelves are the original optiacl fiber frame solution. Customize your installation with this fast installation design. These units are a combination of 7” or 9” Termination Shelves with splice units and fanouts installed. Ask Lightera to create your custom configuration from as small as 12 fibers up to our grand 864 fiber solution. All combination units are factory assembled allowing a rapid installation. Direct splicing in single or mass fusion configurations are available. Select from existing designs or work with your local representative for a customized solution.
The LGX Combination Unit is a versatile system of optical cable management boxes, which can be configured in many ways. Mix and match adapter panels to configure your system with LC, SC or ST type adapters. The pre-assembled system allows for rapid frame mounting, the elimination of a cable entry transition box (proper fire ratings must apply) and removes infield assembly work. Contact Lightera to help with pre-assembled configurations which speed installation time.
| Combination Shelf SMART Coding Scheme | |
|---|---|
| Example | LSC2W-012-05-WHT-SCU-LT1B-FF-P : LSC, UMA adapters, AllWave Flex ZWP Single-Mode Fiber, 12 Fibers, 5-inch shelf height, white shelf, SCU connectors, equipped with LT1B splice tray, single fusion pigtails |
| Part Number | LSC a b – CCC – dd – eee – fffff – gggg – hh – ii SMART Code syntax above has spaces between field sets for visibility. Actual SMART Code should not include any spacing but should include indicated dashes. |
| a | Adapter Type 0 = None 1 = Standard 1-piece 2 = Universal Modular Adapter (UMA) |
| b | Fiber Type B = Blue Tiger™ Single-Mode Optical Fiber W = AllWave® FLEX ZWP Single-Mode Optical Fiber A = AllWave ZWP Single-Mode Optical Fiber M = 50 µm Multimode Optical FIber L = 62.5 µm Multimode Optical Fiber I = Laser Optimized 62.5 µm Multimode Optical Fiber G = LaserWave® G+ Multimode Optical Fiber Z = LaserWave 300 Multimode Optical Fiber F = LaserWave 500 Multimode Optical Fiber E = LaserWave 600 Multimode Optical Fiber T = TrueWave® Multimode Optical Fiber |
| ccc | Fiber Count |
| dd | Shelf Height (in inches) |
| eee | Shelf Color WHT = White BLK = Black |
| fffff | Connector Type LCA = LC Angle Polish LCU40 = LC Angle Polish 40º Boot LCA40 = LC Ultra Polish 40º Boot LCU = LC Ultra Polish SCA = SC Angle Polish SCU = SC Ultra Polish STP = ST2 Pull Proof FCA = FC Angle Polish FCU = FC Ultra Polish UNC = UNConnectorized |

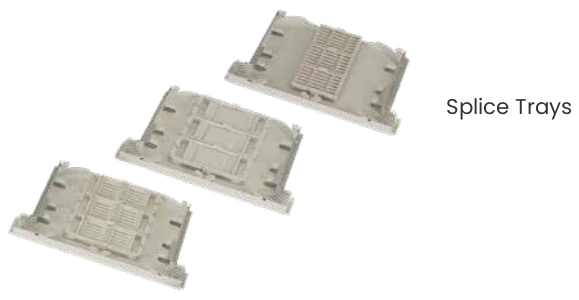

| gggg | Splice Tray LT1B = Equipped with Tray Blank = No Tray |
| hh | Fusion Type FF = Single Fusion MF = Mass Fusion |
| ii | Fiber Construction PT = Pigtail FO = Fanout (ribbon) |
| Blank Shelves – Ordering Information | |
|---|---|
| Description | Comcode |
| LSC00-024-05-WHT SHELF | 106455355 |
| LSC00-024-05-WHT-LT1B-FF | 300399276 |
| LSC00-024-05-WHT-LT1B-FF | 300519279 |
| LSC00-072-12-WHT SHELF | 105335822 |
| LSC00-072-12-WHT-(1)-LT1B-MF | 300517232 |
| LSC00-144-14-WHTSHELF | 300447125 |
| LSC00-144-21-WHT SHELF | 105335798 |
| Shelves with Standard 1-Piece Adapters Ordering Information | |
|---|---|
| Description | Comcode |
| LSCIL-048-12-WHT-LCU-LT1B-FF-PT | 300503208 |
| LSCIL-048-12-WHT-SCU-LT1B-FF-PT | 300558558 |
| LSCIL-288-25-WHT-LCU-LT1B-MF-FO | 300399060 |
| LSCIM-012-05-WHT-SCU(MM) | 300497641 |
| LSCIM-048-12-WHT-SCU-LT1B-FF-PT | 300499191 |
| LSC1S-012-05-WHT-FCU-LT1B-FF(SM/MM) | 300565702 |
| LSC1S-024-05-WHT-FCU(SM/MM) | 300467495 |
| LSC1S-024-05-WHT-FCU-LT1B-FF(SM/MM) | 300551082 |
| LSCIS-024-05-WHT-LCU(SM) | 300537529 |
| LSC1S-024-05-WHT-SCU(SM) | 300506813 |
| LSC1S-144-14-WHT-SCU-LT1B-FF | 300533445 |
| LSC1S-144-21-WHT-SCU-LT1B-FF | 108248303 |
| LSC1W/L-24/12-12-WHT-SCU-LT1B-FF-PT | 300558541 |
| LSC1W-006-05-WHT-SCA-LT1B-FF-PT | 300523743 |
| LSC1W-012-05-WHT-LCU-LT1B-FF-PT | 300468071 |
| LSC1W-012-12-WHT-STP-LT1B-FF-PT | 300432689 |
| LSC1W-024-05-WHT-FCU-LT1B-FF-PT | 300497872 |
| LSC1W-024-05-WHT-LCU-LT1B-FF-PTw/SS | 300444973 |
| LSC1W-024-05-WHT-LCU-LT1B-MF-FO | 109165704 |
| LSC1W-024-05-WHT-SCU-LT1B-FF-PT | 300525300 |
| LSC1W-024-05-WHT-STP-LT1B-FF-PT | 300530540 |
| LSC1W-024-16-WHT-LCA-LT1B-FF-PT | 300473485 |
| LSC1W-048-05-WHT-LCU-LT1B-MF-FO | 109083451 |
| LSC1W-048-12-WHT-LCU-LT1B-MF-FO | 109165712 |
| LSC1W-048-12-WHT-SCU-LT1B-FF-PT | 300529906 |
| LSC1W-072-12-WHT-LCU-LT1B-MF-FO | 109165720 |
| LSC1W-072-12-WHT-SCU-LT1B-FF-PT | 300529021 |
| LSC1W-072-12-WHT-STP-LT1B-FF-PT | 300432671 |
| LSC1W-096-12-WHT-SCU-LT1B-FF-PT | 300537503 |
| LSC1W-120-14-WHT-SCU-LT1B-FF-PT | 300553179 |
| LSC1W-144-14-WHT-LCU-LT1B-MF-FO | 109080887 |
| LSC1W-144-14-WHT-LCU-LT1B-MF-FO | 300505690 |
| LSC1W-144-14-WHT-SCU-LT1B-FF-PT | 300558434 |
| LSC1W-144-19-WHT-SCU-LT1B-MF-FO | 300521150 |
| LSC1W-288-23-WHT-LCU-LT1B-MF-FO | 300484946 |
| LSC1W-288-25-WHT-LCA-LT1B-FF-FO | 300536448 |
| LSC1W-288-25-WHT-LCU-LT1B-MF-FO | 300399045 |
| LSC1W-432-41-WHT-LCU-LT1B-MF-FO | 300446408 |
| LSC1W-432-49-WHT-SCU-LT1B-MF-FO | 300567187 |
| LSC1W-432-51-WHT-LCU-LT1B-MF-FO | 109031484 |
| LSC1W-432-51-WHT-LCU-LT1B-MF-FO | 300432754 |
| LSC1W-864-63-WHT-LCU-LT1B-MF-FO | 109031245 |
| LSC1W-864-74-WHT-LCA-LT1B-FF-FO | 300386943 |
| LSC1W-864-74-WHT-LCU-LT1B-FF-FO | 300525482 |
| Shelves with Universal Modular Adapters (UMA) Ordering Information | |
|---|---|
| Description | Comcode |
| LSC2L-288-25-WHT-SCU-LT1B-MF-FO | 300399052 |
| LSC2S-012-05-WHT-SCU(SM) | 300503091 |
| LSC2S-024-05-WHT-SCA(SM) | 300528346 |
| LSC2S-024-05-WHT-SCUKITOFPARTS | 109177188 |
| LSC2S-024-05-WHT-SCU-LT1B-FF | 108248287 |
| LSC2S-024-05-WHT-STUKITOFPARTS | 109177170 |
| LSC2S-048-12-WHT-SCU(SM) | 300528361 |
| LSC2S-048-12-WHT-SCU(SM) | 300528353 |
| LSC2S-048-12-WHT-SCU-LT1B-FF | 300517240 |
| LSC2S-072-12-WHT-SCU-LT1B-FF | 108248295 |
| LSC2W-012-05-WHT-SCA-LT1B-FF-PT | 300495785 |
| LSC2W-012-05-WHT-SCU-LT1B-FF-PT | 300439080 |
| LSC2W-012-05-WHT-STU-LT1B-FF-12PT(6CAPS) | 107075004 |
| LSC2W-024-05-WHT-SCA-LT1B-FF-PT | 300530854 |
| LSC2W-024-05-WHT-SCU-LT1B-FF-FO | 300431640 |
| LSC2W-024-05-WHT-SCU-LT1B-FF-PT | 300439775 |
| LSC2W-024-05-WHT-SCU-LT1B-FF-PT | 300513074 |
| LSC2W-024-05-WHT-SCU-LT1B-FF-PT(60INBF) | 300474848 |
| LSC2W-024-05-WHT-SCU-LT1B-MF-FO | 108844382 |
| LSC2W-024-12-WHT-SCU-LT1B-FF-FO | 300423571 |
| LSC2W-024-12-WHT-SCU-LT1B-FF-PT | 300540713 |
| LSC2W-024-12-WHT-SCU-LT1B-MF-FO | 300411253 |
| LSC2W-036-12-WHT-SCU-LT1B-FF-PT | 300426236 |
| LSC2W-048-12-WHT-SCA-LT1B-FF-PT | 300530862 |
| LSC2W-048-12-WHT-SCA-LT1B-MF-FO | 300461720 |
| LSC2W-048-12-WHT-SCU-LT1B-FF-FO | 300423590 |
| LSC2W-048-12-WHT-SCU-LT1B-FF-FO,1pkSS | 300421120 |
| LSC2W-048-12-WHT-SCU-LT1B-FF-PT | 300514098 |
| LSC2W-048-12-WHT-SCU-LT1B-MF-FO | 300411246 |
| LSC2W-060-12-WHT-SCU-LT1B-FF-FO | 300435815 |
| LSC2W-072-12-WHT-SCA-LT1B-FF-FO | 300414075 |
| LSC2W-072-12-WHT-SCU-LT1B-FF-FO | 300423591 |
| LSC2W-072-12-WHT-SCU-LT1B-FF-FO,2pkSS | 300421138 |
| LSC2W-072-12-WHT-SCU-LT1B-FF-PT | 300441359 |
| LSC2W-072-12-WHT-SCU-LT1B-MF-FO | 108851965 |
| LSC2W-096-12-WHT-SCU-LT1B-FF-FO | 300426913 |
| LSC2W-096-12-WHT-SCU-LT1B-FF-PT | 300440757 |
| LSC2W-096-12-WHT-SCU-LT1B-MF-FO | 109136135 |
| LSC2W-096-16-WHT-SCU-LT1B-FF-PT | 300517851 |
| LSC2W-120-14-WHT-SCU-LT1B-FF-FO | 300435823 |
| LSC2W-144-14-WHT-SCA-LT1B-FF-PT | 300491800 |
| LSC2W-144-14-WHT-SCU-LT1B-FFFO,3pkSS | 300421146 |
| LSC2W-144-14-WHT-SCU-LT1B-FF-PT | 300468402 |
| LSC2W-144-14-WHT-SCU-LT1B-MF-FO | 108949322 |
| LSC2W-144-21-WHT-SCU-LT1B-MF-FO | 300519519 |
| LSC2W-168-21-WHT-SCU-LT1B-FF-FO | 300439072 |
| LSC2W-192-23-WHT-SCU-LT1B-FF-FO | 300420254 |
| LSC2W-216-28-WHT-SCU-LT1B-MF-FO | 300386901 |
| LSC2W-288-25-WHT-SCA-LT1B-FF-FO | 300410305 |
| LSC2W-288-25-WHT-SCU-LT1B-MF-FO | 300399037 |
| LSC2W-288-27-WHT-SCU-LT1B-FF-FO | 300459369 |
| LSC2W-300-53-WHT-SCA-LT1B-FF-FO | 300414133 |
| LSC2W-432-49-WHT-SCU-LT1B-MF-FO | 108298829 |
| LSC2W-432-52-WHT-SCA-LT1B-FF-FO | 300467891 |
| LSC2W-432-56-WHT-SCA-LT1B-FF-FO | 300431095 |
| LSC2W-456-54-WHT-SCA-LT1B-FF-FO | 300467909 |
| LSC2W-576-54-WHT-SCA-LT1B-FF-FO | 300459377 |
| LSC2W-864-63-WHT-SCU-LT1B-MF-FO | 108617481 |
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.
