Code -
06816-01
LGX® Splice Shelves (LSS1U Series)
This LGX Fiber Optic Splice Shelf (LSS) is generally used with a termination shelf
or in splice-only applications to store individual mechanical or fusion splices.
Typically, the splice shelf is used in combination with the termination shelf.
This LGX Fiber Optic Splice Shelf (LSS) is generally used with a termination shelf
or in splice-only applications to store individual mechanical or fusion splices.
Typically, the splice shelf is used in combination with the termination shelf.
Features And Benefits
- Hinged front (metal) and rear doors constructed of white polycarbonate and equipped with knockouts for optional lock mechanism
- Universal shelf mounting brackets for frame or wall mount
- Cable clamp brackets for termination of LGBC, LGMC or OSP cables
- Blank labels for identifying fiber splices
- Splice tray housing
- The 9 inch and 10 inch splice trays have the same splice capacity but the 10 inch shelf provides additional room in the base for fiber and cable storage
- Aluminum alloy sheet 0.09 in. [2.28 mm] thick
Product Description
This LGX Fiber Optic Splice Shelf (LSS) is generally used with a termination shelf
or in splice-only applications to store individual mechanical or fusion splices.
Typically, the splice shelf is used in combination with the termination shelf.
All Other Associated or Acessory Hardware
- Clamp and Grounding Kit – One per outside plant cable 12A1 cable clamp or 12A2 cable clamp
- Cable End Blocking Kit – One per outside plant cable D-181268 for unconnectorized ribbon cables D-181781 (six Finger Unit Splitter) for LightPack® 0.41-inch (1.0 cm) cable D-181683 (eight Finger Unit Splitter) for LightPack 0.48- inch (1.2 cm) cable
- Splice Organizer Assembly: LT1B-F/F Splice Organizer for fusion splices; each organizer can accommodate up to 48 splices; LT1B-MF/MF Splice Organizer for mass fusion splices; each organizer can accommodate up to 18 splices (216 fiber splices)
- Pigtails and fanouts are ordered separately and are dependent on the number of splices and the splice type. The 5 inch shelf holds 3 trays for a maximum of 144 single fusion splices or pigtails. For mass fusion splicing, you need 54 fanouts.
Splice Shelf Ordering Guide
| Splice Shelf Ordering Guide | ||
|---|---|---|
| Product Code | Comcode | Description |
| LSS1U-05-BLK EMPTY | 301011037 | Splice Shelf that holds 3 LT1B trays |
| LSS1U-05-WHT EMPTY | 105335806 | Splice Shelf that holds 3 LT1B trays |

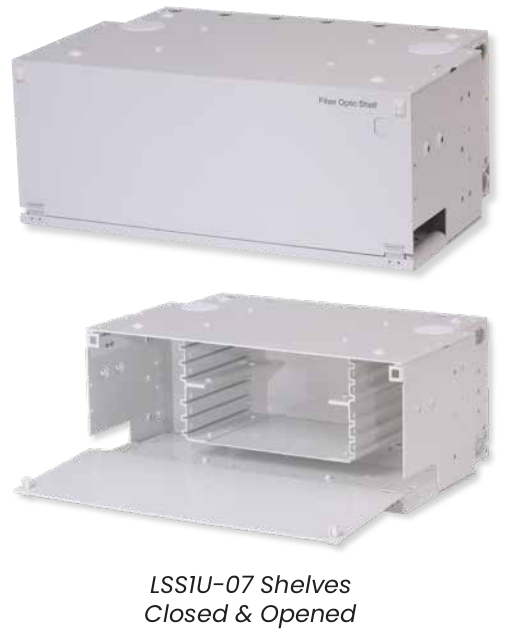

| LSSU-07-BLK EMPTY | 300539525 | Splice Shelf that holds 6 LT1B trays |
| LSS1U-07-WHT EMPTY | 105335772 | Splice Shelf that holds 6 LT1B trays |
| LSS1U-09-BLK EMPTY | 301011045 | Splice Shelf that holds 6 LT1B trays |
| LSS1U-09-WHT EMPTY | 300556891 | Splice Shelf that holds 6 LT1B trays |
| LSS1U-10-WHT EMPTY | 300430527 | Splice Shelf that holds 9 LT1B trays |
| LSS1U-05-WHT-3-LT1B-FF | 300399284 | Splice Shelf that is equipped with 3 LT1B-F/F trays |
| LSSIU-05-WHT-3-LT1B-MF | 300529161 | Splice Shelf that is equipped with 3 LT1B-MF/MF trays |
| LSSIU-07-WHT-6-LT1B-FF | 300399433 | Splice Shelf that is equipped with 6 LT1B-F/F trays |
| Accessories |
||
| Product Code | Comcode | Description |
| LT1B-F/F 48 SINGLE FUSION | 300386919 | |
| LT1B-M/M 36 MECHNICAL | 300386927 | |
| LT1B-MF/MF18 MASS FUSION | 300386935 | |

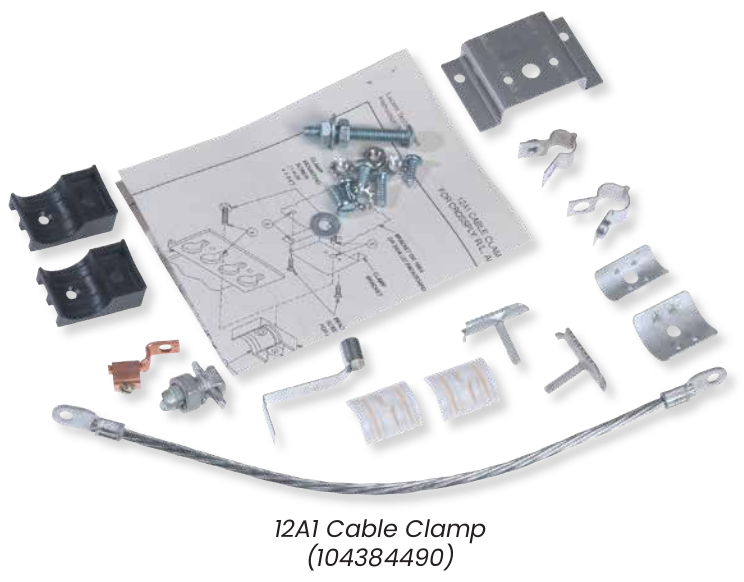

| 12A1 CABLE CLAMP METALLIC | 104384490 | |
| 12A1 CABLE CLAMP w/o STRAP, LUG | 301006888 | |
| 12A2 CABLE CLAMP DIELECTRIC | 106230337 | |
| 12A3L CABLE CLAMP METALLIC/DIELECTRIC | 108527433 | |
| FUSION SLEEVE RIBBON 40MM 100PK | 108383936 | |
| FUSION SLEEVE SINGLE FIBER 60MM 50PK | 105058309 | |
| FUSION SLEEVES RIBBON 25PK | 107241077 | |
| Single Fusion Organizer | 105356562 | |
| Mass Fusion Organizer 12 pck | 109116046 | |
Contact Information
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.
