| Product Specifications | |
|---|---|

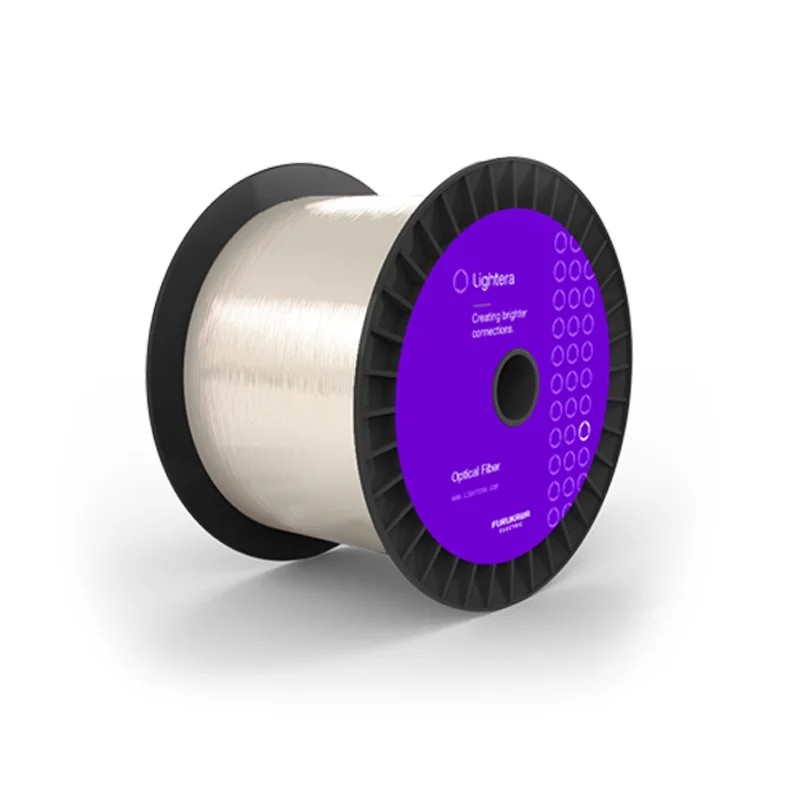

| Product Description | RightWave EDF HP19 125/200 Optical Fiber |
| Optical Characteristics |
|
| Cutoff Wavelength | < 1270 nm |
| Mode Field Diameter @ 1550 nm | 5.2 ± 0.7 μm |
| Peak Absorption @ 1530 nm | 19 ± 3 dB/m |
| Numerical Aperture | 0.24 ± 0.02 |
| PMD (Typical) | ≤ 2 fs/m |
| Physical Characteristics |
|
| Cladding Diameter | 125 ± 1.0 µm |
| Coating Diameter | 200 ± 10 µm |
| Core/Clad Concentricity Error | < 0.3 µm |
| Mechanical and Environmental |
|
| Tensile Proof Test | 1.38 GPa (200 kpsi) |
| Order by Part Number | 87145 |
| Regulatory Compliance | REACH and RoHS Compliant |
| Quality Certification | ISO 9001 Certified |
