- Slim 1 unit mounting height (1U rack space)
- Front-mounted jumper management
- Fits 19”, 23”, or ETSI frames
- Can manage both splices and terminations
Code -
07161-01
1U Shelves: Fixed & Sliding ________ 1U S-LIU/F-LIU
One of the best ways to save time and money is to manage your cable resources efficiently. The Lightera 1U Series Combination Shelves help you do just that. By using these shelves to terminate and splice fibers, you can rearrange networks quickly and keep track of your fiber resources. Efficient fiber management also helps save on maintenance and replacement costs.
The 1U Series Combination Shelves house 24 ST, 24 SC, or 48 LC terminations.
The versatile design can accommodate 24 mechanical splices, 48 single fusion splices, or 18 ribbon (mass fusion) splices using optional splice organizers. The shelves measure 17.0 inches (43.18 cm) wide by 8.0 inches (20.32 cm) deep by 1.72 inches (4.37 cm) high.
The 1U Series Shelves are available in either a fixed mounted frame configuration (1U F-LIU) or a slide-out version (1U S-LIU). Each shelf features common parts throughout the assembly. The 1U S-LIU utilizes easy glide ball bearing slide rails for smooth pullout and push in with a positive stop feature.
One of the best ways to save time and money is to manage your cable resources efficiently. The Lightera 1U Series Combination Shelves help you do just that. By using these shelves to terminate and splice fibers, you can rearrange networks quickly and keep track of your fiber resources. Efficient fiber management also helps save on maintenance and replacement costs.
The 1U Series Combination Shelves house 24 ST, 24 SC, or 48 LC terminations.
The versatile design can accommodate 24 mechanical splices, 48 single fusion splices, or 18 ribbon (mass fusion) splices using optional splice organizers. The shelves measure 17.0 inches (43.18 cm) wide by 8.0 inches (20.32 cm) deep by 1.72 inches (4.37 cm) high.
The 1U Series Shelves are available in either a fixed mounted frame configuration (1U F-LIU) or a slide-out version (1U S-LIU). Each shelf features common parts throughout the assembly. The 1U S-LIU utilizes easy glide ball bearing slide rails for smooth pullout and push in with a positive stop feature.
Features And Benefits
Product Description
One of the best ways to save time and money is to manage your cable resources efficiently. The Lightera 1U Series Combination Shelves help you do just that. By using these shelves to terminate and splice fibers, you can rearrange networks quickly and keep track of your fiber resources. Efficient fiber management also helps save on maintenance and replacement costs.
The 1U Series Combination Shelves house 24 ST, 24 SC, or 48 LC terminations.
The versatile design can accommodate 24 mechanical splices, 48 single fusion splices, or 18 ribbon (mass fusion) splices using optional splice organizers. The shelves measure 17.0 inches (43.18 cm) wide by 8.0 inches (20.32 cm) deep by 1.72 inches (4.37 cm) high.
The 1U Series Shelves are available in either a fixed mounted frame configuration (1U F-LIU) or a slide-out version (1U S-LIU). Each shelf features common parts throughout the assembly. The 1U S-LIU utilizes easy glide ball bearing slide rails for smooth pullout and push in with a positive stop feature.
Common Features
- Preassembled shelves in multiple configurations
- Lightera ganged adapter sets maximize footprint
- Includes adapter panels for 48 LC, 24 SC, or 24 ST terminations
- 19-inch frame mounting
- Fits 1U rack space (1.72” hx17” W X 8” d)
- Mounting bracket available for ETSI frames
- Clear plastic shelf cover protects fibers
- Two 3” fiber spools
- One compression grommet
- Labels
- Optional extender brackets for 23” frame

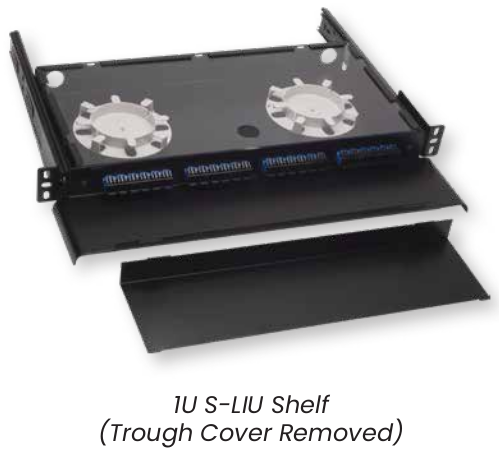

1U S-LIU Unique Features
- Ball bearing slide rails
- Integrated front trough
- Integrated front trough cover
Mounting the Splice Tray Bracket
To correctly mount the splice tray bracket, simply place the bracket in between the bracket retainers and turn clock-wise until locked into position as shown (short splice bracket depicted (300522042)).
Ordering Information
| Ordering Information | |
|---|---|
| 1U Fixed Shelf ¹ ² ³ |
|
| Description | Comcode |
| 1U F-LIU Empty | 300470671 |
| 1U F-LIU LC12 Aqua | 300518370 |
| 1U F-LIU LC12 Beige | 300522281 |
| 1U F-LIU LC24 Aqua | 300485216 |
| 1U F-LIU LC24 Beige | 300522273 |
| 1U F-LIU LC36 Aqua | 300529922 |
| 1U F-LIU LC48 Aqua | 300470820 |
| 1U F-LIU LC48 Beige | 300470838 |
| 1U F-LIU SC06 Aqua | 300513835 |
| 1U F-LIU SC12 Aqua | 300483161 |
| 1U F-LIU SC12 Beige | 300515483 |
| 1U F-LIU SC12 Blue | 300525391 |
| 1U F-LIU SC24 Aqua | 300470853 |
| 1U F-LIU SC24 Beige | 300470879 |
| 1U F-LIU SC24 Blue | 300470887 |
| 1U F-LIU ST24 Blue | 300470937 |
| 1U F-LIU Empty w trough/cover | 301020848 |
| 1U F-LIU SC12 Aqua trough/cover | 301013207 |
| 1U F-LIU SC12 Aqua W trough/cover/splice | 301020855 |
| ¹ Additional configurations available upon request including fully loaded shelves with pigtails (PT) and splice trays (FF). Splice trays are included when pigtails are ordered. Angled ganged adapters in green are also available | |
² Colors used in ordering information reflect the following:
|
|
| ³ The fixed shelf doesn’t come with a trough and cover unless specified. The trough and cover can be ordered separately (300478278) | |
| ⁴ QT codes (nnnnnnnnn-QT) are in QuickTurn Inventory. Codes without the QT designation (standard stock) are available as well | |
1U Sliding Shelf ¹ ²
| 1U Sliding Shelf ¹ ² |
|
|---|---|
| Description | Comcode |
| 1U S-LIU Empty | 300464633-QT |
| 1U S-LIU LC12 Blue | 300537099 |
| 1U S-LIU LC12 Blue PT | 300524097 |
| 1U S-LIU LC24 Aqua | 300485224 |
| 1U S-LIU LC12/LC12 Blue/Aqua | 300546595 |
| 1U S-LIU LC24/SC12 Blue/Beige | 300470895 |
| 1U S-LIU LC24/SC12 Beige/Beige | 300470754 |
| 1U S-LIU LC48 Aqua | 300470630 |
| 1U S-LIU LC48 Beige | 300470705 |
| 1U S-LIU LC48 Blue | 300470713 |
| 1U S-LIU SC06 Blue | 300512076 |
| 1U S-LIU SC06 Blue PT | 300473808 |
| 1U S-LIU SC06/SC06 Blue/Beige PT | 300531829 |
| 1U S-LIU SC06 Green PT | 300517729 |
| 1U S-LIU SC12 Aqua | 300483153 |
| 1U S-LIU SC12 Blue | 300503307 |
| 1U S-LIU SC12 Blue PT | 300523784-QT |
| 1U S-LIU SC12 Green | 300528627 |
| 1U S-LIU SC12 Green PT | 300514718-QT |
| 1U S-LIU SC12/SC12 Aqua/Blue | 300470812 |
| 1U S-LIU SC12/SC12 Beige/Blue | 300470762 |
| 1U S-LIU SC18 Blue | 300517620 |
| 1U S-LIU SC24 Aqua | 300470721 |
| 1U S-LIU SC24 Beige | 300470739 |
| 1U S-LIU SC24 Blue | 300470747-QT |
| 1U S-LIU SC24 Blue PT | 300472156-QT |
| 1U S-LIU SC24 Green PT | 300533098-QT |
| 1U S-LIU ST06 Blue PT | 300539988 |
| 1U S-LIU ST24 Blue PT | 300556420 |
| 1U S-LIU ST12 Blue | 300478112 |
| 1U S-LIU ST12 Blue PT | 300524212-QT |
| 1U S-LIU ST24 Aqua | 300531233 |
| 1U S-LIU ST24 Beige | 300470788 |
| 1U S-LIU ST24 Blue | 300470804 |
1U Shelf for Cell Towers
| 1U Shelf for Cell Towers | |
|---|---|
| Description | Comcode |
| 1U Splice Tray/Chip/Holder w/Cover | 301014866 |
| 1U-S-LIU-SC12PT/SC12PT-BL/AQ | 301010013 |
| 1U S-LIU LC12 Blue PT | 301010021 |
| 1U AFL Splice Chip | 301011797 |
| 1U Splice Tray/Holder w/Cover | 301011805 |
