SMA
Part no -
BP05061-13
2.5 mm SMA 905 Connector for Step-Index 200/230 µm HCS®

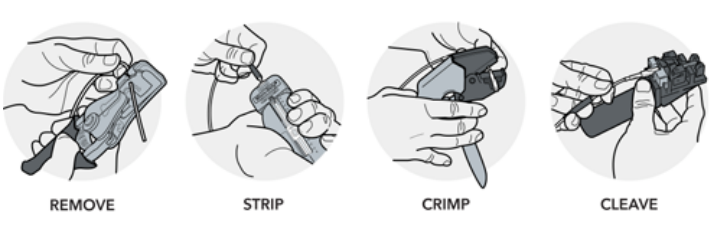

Lightera SMA 905 threaded connector system is compatible with Lightera Crimp and Cleave Termination Kits. The crimp and cleave SMA 905 connector takes advantage of the advanced optomechanical properties of HCS fiber, attaching through mechanical means rather than traditional epoxy/polish. This saves time and greatly simplifies installer training requirements. It is an excellent solution for field connectorization and repair in harsh, industrial environments. No epoxy, no curing, no polishing steps. Quick, easy, reliable.
Lightera SMA 905 threaded connector system is compatible with Lightera Crimp and Cleave Termination Kits. The crimp and cleave SMA 905 connector takes advantage of the advanced optomechanical properties of HCS fiber, attaching through mechanical means rather than traditional epoxy/polish. This saves time and greatly simplifies installer training requirements. It is an excellent solution for field connectorization and repair in harsh, industrial environments. No epoxy, no curing, no polishing steps. Quick, easy, reliable.
Connectors and Mating Adapters
Overview
Lightera SMA 905 threaded connector system is compatible with Lightera Crimp and Cleave Termination Kits. The crimp and cleave SMA 905 connector takes advantage of the advanced optomechanical properties of HCS fiber, attaching through mechanical means rather than traditional epoxy/polish. This saves time and greatly simplifies installer training requirements. It is an excellent solution for field connectorization and repair in harsh, industrial environments. No epoxy, no curing, no polishing steps. Quick, easy, reliable.
Typical Applications
- Data Communication Links
- Factory Automation Systems
- Industrial Applications
- Laser Power Delivery
- Military Applications
- Near-IR Spectroscopy
- Programmable Logic Control Systems
Product Specifications
| Product Specifications | |
|---|---|
| Product Description | 2.5 mm SMA 905 Connector for Step-Index 200/230 µm HCS |
| Specifications | |
| For Use with Optical Fiber Cable Types | Step-Index 200/230 µm HCS Cables |
| Overall Length | 2.5 in. (63.5 mm) |
| Connector Performance Data | |
| Typical Insertion Loss | 1.0 dB |
| Maximum Insertion Loss | 1.5 dB |
| Operating Temperature | -40 to +80 ºC |
| Cable Crimp Retention | 50 lb. (223 N) |
| Cable Design | |
| Jacket Diameter | 2.5 mm |
| Compatibility | |
| Compatible Field Termination Kit | DT03732-31 Crimp & Cleave SMA 200 µm Termination Kit |
| Compatible Insertion Loss Kit | P10188-05 SMA Insertion Loss Test Kit P10188-08 Multi-Set (4 Types: V-Pin, ST, SMA, and F07) Insertion Loss Test Kit |
| Accessories | |
| SMA 905 Mating Adapter | AP01618 |
| Assemblies | All SMA 905 connectors can be provided on respective HCS cable constructions as factory terminated and fully tested assemblies. Please call Technical Support for information at 1-888-438-9936. |
| Order by Part Number | BP05061-13 |
