2.5 mm ST Connector for Step-Index and Graded-Index HCS®

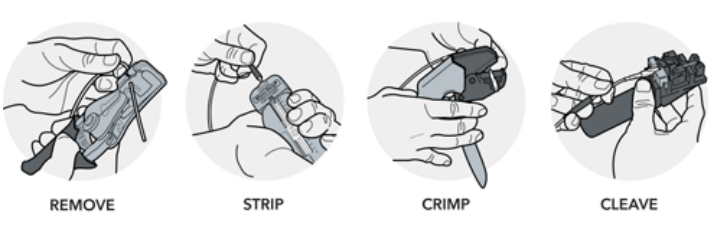

Lightera ST bayonet style connector system is compatible with Lightera Crimp and Cleave Termination Kits. The crimp and cleave ST Connector takes advantage of the advanced optomechanical properties of HCS fiber, attaching through mechanical means rather than traditional epoxy/polish. This saves time and greatly simplifies installer training requirements. It is an excellent solution for field connectorization and repair in harsh, industrial environments. No epoxy, no curing, no polishing steps. Quick, easy, reliable.
Lightera ST bayonet style connector system is compatible with Lightera Crimp and Cleave Termination Kits. The crimp and cleave ST Connector takes advantage of the advanced optomechanical properties of HCS fiber, attaching through mechanical means rather than traditional epoxy/polish. This saves time and greatly simplifies installer training requirements. It is an excellent solution for field connectorization and repair in harsh, industrial environments. No epoxy, no curing, no polishing steps. Quick, easy, reliable.
Connectors and Mating Adapters
Overview
Lightera ST bayonet style connector system is compatible with Lightera Crimp and Cleave Termination Kits. The crimp and cleave ST Connector takes advantage of the advanced optomechanical properties of HCS fiber, attaching through mechanical means rather than traditional epoxy/polish. This saves time and greatly simplifies installer training requirements. It is an excellent solution for field connectorization and repair in harsh, industrial environments. No epoxy, no curing, no polishing steps. Quick, easy, reliable.
Typical Applications
- Data Communication Links
- Factory Automation Systems
- Near-IR Spectroscopy
- Programmable Logic Control Systems
Product Specifications
| Product Specifications | |
|---|---|
| Product Description | 2.5 mm ST Connector for Step-Index and Graded-Index HCS |
| Specifications | |
| For Use with Optical Fiber Cable Types | 200/230 µm Step-Index HCS Cables 50 µm and 62.5 µm Graded-Index HCS Cables |
| Overall Length | 2.7 in. (68.6 mm) |
| Connector Performance Data | |
| Typical (Graded-Index HCS) Insertion Loss @ 850 nm | 1.7 dB |
| Typical (Step-Index HCS) Insertion Loss @ 850 nm | 1.5 dB |
| Operating Temperature | -40 to +80 ºC |
| Cable Crimp Retention | 50 lb. (223 N) |
| Cable Design | |
| Jacket Diameter | 2.5 mm |
| Compatibility | |
| Compatible Field Termination Kit | DT03732-32 Crimp & Cleave ST 200 µm Termination Kit DT03732-41 Crimp & Cleave ST 50/62.5 µm Termination Kit |
| Compatible Insertion Loss Kit | P10188-03 ST Insertion Loss Test Kit P10188-08 Multi Set (4-Types: V-Pin, ST, SMA, and F07) Insertion Loss Test Kit P10188-10 ST Insertion Loss Test Kit |
| Accessories | |
| ST Mating Adapter | AP01960 |
| Assemblies | All ST connectors can be provided on respective HCS cable constructions as factory terminated and fully tested assemblies. Please call Technical Support for information at 1-888-438-9936. |
| Order by Part Number | BP05065-13 |
