ACCUMAX Distribution Premises Fiber Optic Cable
Code -
06111-1
ACCUMAX Distribution Premises Fiber Optic Cable
When you need a high-performance cabling solution for premises distribution or fiber backbone applications, look to the OFS ACCUMAX® Family of Premises Cables. Whether your installation equires riser, plenum or dual-rated, low-smoke zero halogen (LSZH) products, OFS has an ACCUMAX cable solution to meet your needs.ACCUMAX Cables have the flexibility to handle virtually any application between the building entrance and the desktop – in most environments from the office to factory floor. High-quality aterials and a patented reverse oscillating lay (ROL) manufacturing process are two reasons why ACCUMAX Cables help set the industry standard for quality and reliability.To construct an ACCUMAX Cable, coated optical fibers are first buffered with colored 900 micron (µm) protective coatings. For cables with 12 fibers or less, the buffered fibers are then urrounded by aramid yarn for added strength and are overjacketed for protection with a proprietary PVC sheath (for riser and plenum cable) or a flame-retardant non-halogen jacket (for LSZH cable).
When you need a high-performance cabling solution for premises distribution or fiber backbone applications, look to the OFS ACCUMAX® Family of Premises Cables. Whether your installation equires riser, plenum or dual-rated, low-smoke zero halogen (LSZH) products, OFS has an ACCUMAX cable solution to meet your needs.ACCUMAX Cables have the flexibility to handle virtually any application between the building entrance and the desktop – in most environments from the office to factory floor. High-quality aterials and a patented reverse oscillating lay (ROL) manufacturing process are two reasons why ACCUMAX Cables help set the industry standard for quality and reliability.To construct an ACCUMAX Cable, coated optical fibers are first buffered with colored 900 micron (µm) protective coatings. For cables with 12 fibers or less, the buffered fibers are then urrounded by aramid yarn for added strength and are overjacketed for protection with a proprietary PVC sheath (for riser and plenum cable) or a flame-retardant non-halogen jacket (for LSZH cable).
Product Name
Features And Benefits
- Available in riser, plenum and dual-rated, low smoke zero halogen (LSZH) rated designs
- Robust backbone cable withstands typical indoor abuse
- Eases installation in space-constrained areas
- Superior tight buffering over a proprietary coating ensures minimal termination effort
- Enables faster, easier cable preparation and installation, for reduced installation time and cost
- Highly versatile and suitable for use in a wide range of systems and applications
- Cabled fiber counts of 2 to 144
- Smaller and lighter 18- and 24-fiber single-tube designs reduce installation preparation time
- Cable outer jacket color-coded to easily identify fiber type
- Hybrid composite cables with multiple fiber types available
- Meets or exceeds ICEA S-83 596 and Telcordia GR-409 Standards
- UL® or ETL Listed and tested per OFNR or OFNP
- Available with OFS AllWave® FLEX+ Zero Water Peak (ZWP) and LaserWave® FLEX Multimode Optical Fiber and other fiber types
Product Description
When you need a high-performance cabling solution for premises distribution or fiber backbone applications, look to the OFS ACCUMAX® Family of Premises Cables. Whether your installation equires riser, plenum or dual-rated, low-smoke zero halogen (LSZH) products, OFS has an ACCUMAX cable solution to meet your needs. ACCUMAX Cables have the flexibility to handle virtually any application between the building entrance and the desktop – in most environments from the office to factory floor. High-quality aterials and a patented reverse oscillating lay (ROL) manufacturing process are two reasons why ACCUMAX Cables help set the industry standard for quality and reliability. To construct an ACCUMAX Cable, coated optical fibers are first buffered with colored 900 micron (µm) protective coatings. For cables with 12 fibers or less, the buffered fibers are then urrounded by aramid yarn for added strength and are overjacketed for protection with a proprietary PVC sheath (for riser and plenum cable) or a flame-retardant non-halogen jacket (for LSZH cable).
Why To Use It
ACCUMAX Cables offer flexible and robust cabling solutions for virtually any indoor premises application, in both the horizontal and vertical distribution environments. In fact, these versatile cables can eliminate the cost of installing any other inside cable; simply select the design and fiber count that you need from the ACCUMAX product line. The ACCUMAX cable design helps save time and money on installation by allowing faster, easier cable preparation. The best-in-class OFS fiber coating and high-quality tight buffered fibers ensure minimal termination effort, saving time and eliminating the risk of damaged or broken fibers during connector installation. The compact, yet rugged ACCUMAX cable design has proven itself in the confined spaces of data centers, central offices and CATV head ends, and is especially suitable for installation in riser shafts, above drop ceilings, under raised floors or in conduits.

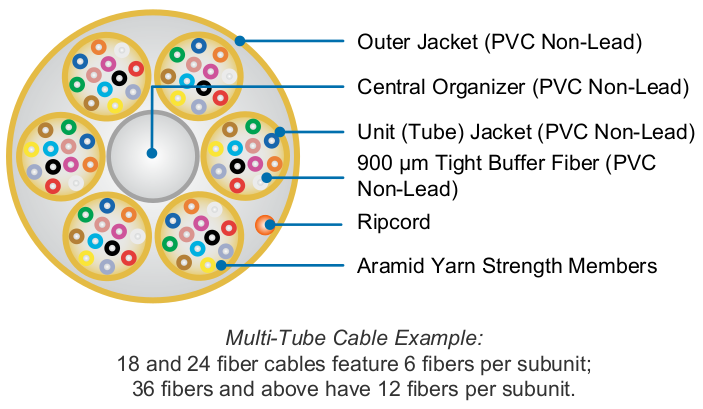

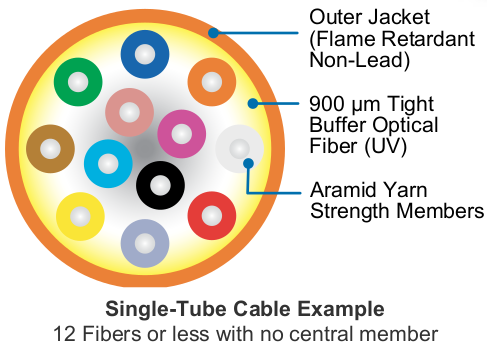

Single-Tube and Multi-Tube Design Options

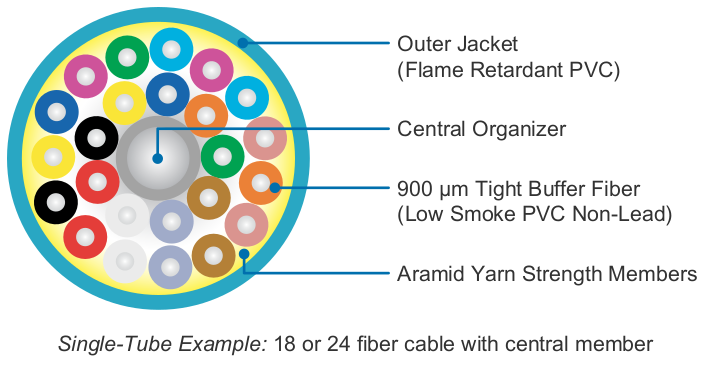

Unlike many other premises cables, ACCUMAX® 18- and 24-Fiber Cables are available in both single-tube and multi-tube design options. No matter what your premises installation requirements or preferences may be, OFS offers an ACCUMAX Cable to meet your needs.
Fiber Number
1
Fiber Color
Blue (BL)
Fiber Number
2
Fiber Color
Orange (OR)
Fiber Number
3
Fiber Color
Green (GR)
Fiber Number
4
Fiber Color
Brown (BR)
Fiber Number
5
Fiber Color
Slate (SL)
Fiber Number
6
Fiber Color
White (WH)
Fiber Number
7
Fiber Color
Red (RD)
Fiber Number
8
Fiber Color
Black (BK)
Fiber Number
9
Fiber Color
Yellow (YL)
Fiber Number
10
Fiber Color
Violet (VI)
Fiber Number
11
Fiber Color
Rose (RS)
Fiber Number
12
Fiber Color
Aqua (AQ)
Fiber Number
13
Fiber Color
Blue (BL) with hash mark
Fiber Number
14
Fiber Color
Orange (OR) with hash mark
Fiber Number
15
Fiber Color
Green (GR) with hash mark
Fiber Number
16
Fiber Color
Brown (BR) with hash mark
Fiber Number
17
Fiber Color
Slate (SL) with hash mark
Fiber Number
18
Fiber Color
White (WH) with hash mark
Fiber Number
19
Fiber Color
Red (RD) with hash mark
Fiber Number
20
Fiber Color
Black (BK) with hash mark
Fiber Number
21
Fiber Color
Yellow (YL) with hash mark
Fiber Number
22
Fiber Color
Violet (VI) with hash mark
Fiber Number
23
Fiber Color
Rose (RS) with hash mark
Fiber Number
24
Fiber Color
Aqua (AQ) with hash mark
Fiber Number
1
Fiber Color
Blue (BL)
Fiber Number
2
Fiber Color
Orange (OR)
Fiber Number
3
Fiber Color
Green (GR)
Fiber Number
4
Fiber Color
Brown (BR)
Fiber Number
5
Fiber Color
Slate (SL)
Fiber Number
6
Fiber Color
White (WH)
Fiber Number
7
Fiber Color
Red (RD)
Fiber Number
8
Fiber Color
Black (BK)
Fiber Number
9
Fiber Color
Yellow (YL)
Fiber Number
10
Fiber Color
Violet (VI)
Fiber Number
11
Fiber Color
Rose (RS)
Fiber Number
12
Fiber Color
Aqua (AQ)
ACCUMAX Riser-Rated Cable

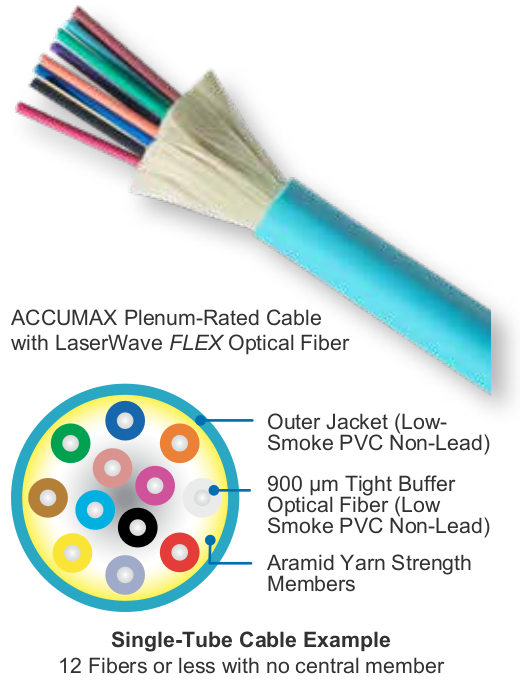

ACCUMAX Riser-Rated Distribution Cable (pictured on first page) was the first 100% lead-free riser cable available in the optical fiber industry. This cable is suitable for zone wiring, and is a smart choice for most fiber-to-the-workstation applications (as described in the ANSI or EIA/TIA specifications for premises distribution systems). ACCUMAX Riser-Rated Cable is also well-suited for central office vault to frame installations and prewired shelves, as well as a wide range of other optical network applications. All ACCUMAX Riser-Rated Cables and unit tubes carry the OFNR classification as described in the National Electrical Code (NEC) and are certified per OFNR FT4. These cables are also UL or ETL Listed Riser per OFNR (flame test) and tray rated under IEEE 383.
Specification
Single Tube
Fiber Count
2
Cable Outer Diameter in. (mm)
0.16 (4.1)
Cable Weight lb/kft (kgm/km)
7.9 (11.8)
Maximum Rated Cable Load lb (N)
150 (667)
Fibers Per Tube
–
Specification
Single Tube
Fiber Count
4
Cable Outer Diameter in. (mm)
0.16 (4.1)
Cable Weight lb/kft (kgm/km)
9.3 (13.8)
Maximum Rated Cable Load lb (N)
150 (667)
Fibers Per Tube
–
Specification
Single Tube
Fiber Count
6
Cable Outer Diameter in. (mm)
0.17 (4.4)
Cable Weight lb/kft (kgm/km)
10.9 (16.2)
Maximum Rated Cable Load lb (N)
150 (667)
Fibers Per Tube
–
Specification
Single Tube
Fiber Count
8
Cable Outer Diameter in. (mm)
0.20 (5.5)
Cable Weight lb/kft (kgm/km)
13.5 (20.1)
Maximum Rated Cable Load lb (N)
150 (667)
Fibers Per Tube
–
Specification
Single Tube
Fiber Count
12
Cable Outer Diameter in. (mm)
0.28 (7.1)
Cable Weight lb/kft (kgm/km)
16.5 (24.5)
Maximum Rated Cable Load lb (N)
150 (667)
Fibers Per Tube
–
Specification
Single Tube
Fiber Count
18
Cable Outer Diameter in. (mm)
0.28 (7.1)
Cable Weight lb/kft (kgm/km)
32 (48)
Maximum Rated Cable Load lb (N)
150 (667)
Fibers Per Tube
–
Specification
Single Tube
Fiber Count
24
Cable Outer Diameter in. (mm)
0.29 (7.2)
Cable Weight lb/kft (kgm/km)
37 (56)
Maximum Rated Cable Load lb (N)
150 (667)
Fibers Per Tube
–
Specification
Multi Tube
Fiber Count
18*
Cable Outer Diameter in. (mm)
0.51 (12.4)
Cable Weight lb/kft (kgm/km)
73 (108.3)
Maximum Rated Cable Load lb (N)
500 (2224)
Fibers Per Tube
6
Specification
Multi Tube
Fiber Count
24
Cable Outer Diameter in. (mm)
0.51 (12.4)
Cable Weight lb/kft (kgm/km)
73 (108.7)
Maximum Rated Cable Load lb (N)
500 (2224)
Fibers Per Tube
6
Specification
Multi Tube
Fiber Count
36
Cable Outer Diameter in. (mm)
0.53 (13.5)
Cable Weight lb/kft (kgm/km)
83 (123.6)
Maximum Rated Cable Load lb (N)
500 (2224)
Fibers Per Tube
12
Specification
Multi Tube
Fiber Count
48
Cable Outer Diameter in. (mm)
0.63 (15.9)
Cable Weight lb/kft (kgm/km)
122 (181.3)
Maximum Rated Cable Load lb (N)
600 (2700)
Fibers Per Tube
12
Specification
Multi Tube
Fiber Count
72
Cable Outer Diameter in. (mm)
0.76 (19.2)
Cable Weight lb/kft (kgm/km)
206 (306.4)
Maximum Rated Cable Load lb (N)
600 (2700)
Fibers Per Tube
12
Specification
Multi Tube
Fiber Count
96
Cable Outer Diameter in. (mm)
0.88 (22.4)
Cable Weight lb/kft (kgm/km)
291 (433)
Maximum Rated Cable Load lb (N)
600 (2700)
Fibers Per Tube
12
Specification
Multi Tube
Fiber Count
144
Cable Outer Diameter in. (mm)
0.94 (23.9)
Cable Weight lb/kft (kgm/km)
310 (461)
Maximum Rated Cable Load lb (N)
1000 (4445)
Fibers Per Tube
12
ACCUMAX® Plenum-Rated Cable
The ACCUMAX Plenum-Rated Distribution Cable offers an ideal choice for plenum applications including fiber-to-the-desktop. ACCUMAX Cable featuring LaserWave® FLEX Multimode Optical Fiber is specifically designed for: Seamless Migration: Supports continuous migration from 10 Mbps to 10 Gbps with no cabling system changes up to 300 meters Lower Installation Costs: Enables lowest cost for legacy through 10 Gbps applications, helping to reduce total system cost by 25% or more Improved Cabling System Administration: Saves time, using a single cable type which speeds cabling system administration Reduced Hardware Costs: Saves specialty hardware costs and administration problems by eliminating cumbersome and expensive mode conditioning patch cords required for 1300 nm laser operation on traditional multimode fibers All ACCUMAX Plenum-Rated Cables and unit tubes carry the OFNP classification as described in the NEC. These cables are also ETL or UL Listed and tested per NFPA 262 OFNP.
Specification
Single Tube
Fiber Count
2
Cable Outer Diameter in. (mm)
0.17 (4.3)
Cable Weight lb/kft (kgm/km)
12 (18)
Maximum Rated Cable Load lb (N)
150 (667)
Fibers Per Tube
–
Specification
Single Tube
Fiber Count
4
Cable Outer Diameter in. (mm)
0.17 (4.3)
Cable Weight lb/kft (kgm/km)
13 (20)
Maximum Rated Cable Load lb (N)
150 (667)
Fibers Per Tube
–
Specification
Single Tube
Fiber Count
6
Cable Outer Diameter in. (mm)
0.17 (4.3)
Cable Weight lb/kft (kgm/km)
11 (16)
Maximum Rated Cable Load lb (N)
150 (667)
Fibers Per Tube
–
Specification
Single Tube
Fiber Count
8
Cable Outer Diameter in. (mm)
0.18 (4.6)
Cable Weight lb/kft (kgm/km)
14 (21)
Maximum Rated Cable Load lb (N)
150 (667)
Fibers Per Tube
–
Specification
Single Tube
Fiber Count
12
Cable Outer Diameter in. (mm)
0.20 (5.1)
Cable Weight lb/kft (kgm/km)
16 (24)
Maximum Rated Cable Load lb (N)
150 (667)
Fibers Per Tube
–
Specification
Single Tube
Fiber Count
18
Cable Outer Diameter in. (mm)
0.26 (6.7)
Cable Weight lb/kft (kgm/km)
29 (44)
Maximum Rated Cable Load lb (N)
150 (667)
Fibers Per Tube
–
Specification
Single Tube
Fiber Count
24
Cable Outer Diameter in. (mm)
0.26 (6.7)
Cable Weight lb/kft (kgm/km)
32 (48)
Maximum Rated Cable Load lb (N)
150 (667)
Fibers Per Tube
–
Specification
Multi Tube
Fiber Count
18*
Cable Outer Diameter in. (mm)
0.47 (12.0)
Cable Weight lb/kft (kgm/km)
90 (135)
Maximum Rated Cable Load lb (N)
300 (1335)
Fibers Per Tube
6
Specification
Multi Tube
Fiber Count
24
Cable Outer Diameter in. (mm)
0.52 (13.2)
Cable Weight lb/kft (kgm/km)
102 (151)
Maximum Rated Cable Load lb (N)
300 (1335)
Fibers Per Tube
6
Specification
Multi Tube
Fiber Count
36
Cable Outer Diameter in. (mm)
0.50 (12.6)
Cable Weight lb/kft (kgm/km)
158 (234)
Maximum Rated Cable Load lb (N)
300 (1335)
Fibers Per Tube
12
Specification
Multi Tube
Fiber Count
48
Cable Outer Diameter in. (mm)
0.56 (15.9)
Cable Weight lb/kft (kgm/km)
136 (202)
Maximum Rated Cable Load lb (N)
600 (2700)
Fibers Per Tube
12
Specification
Multi Tube
Fiber Count
72
Cable Outer Diameter in. (mm)
0.76 (14.2)
Cable Weight lb/kft (kgm/km)
212 (316)
Maximum Rated Cable Load lb (N)
600 (2700)
Fibers Per Tube
12
Specification
Multi Tube
Fiber Count
96
Cable Outer Diameter in. (mm)
0.85 (21.5)
Cable Weight lb/kft (kgm/km)
313 (466)
Maximum Rated Cable Load lb (N)
600 (2700)
Fibers Per Tube
12
Specification
Multi Tube
Fiber Count
144
Cable Outer Diameter in. (mm)
0.90 (22.8)
Cable Weight lb/kft (kgm/km)
318 (474)
Maximum Rated Cable Load lb (N)
1000 (4448)
Fibers Per Tube
12
ACCUMAX® Dual-Rated LSZH Cable

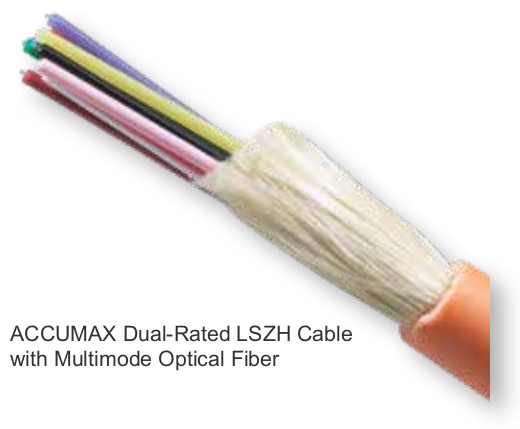

ACCUMAX Dual-Rated LSZH Distribution Cables are especially well suited for installation in riser shafts, above drop ceilings, under raised floors or in conduits. These cables contain absolutely no lead or heavy metals such as mercury, chromium or cadmium and are R0HS compliant. They also carry the OFNR classification as described in the National Electrical Code (NEC) and UL Listed per UL 1666. All ACCUMAX Dual-Rated LSZH Cables and unit tubes meet new CPR ratings as noted below and UL1666.
Specification
Single Tube (LGBC)
Fiber Count
2
Cable Outer Diameter in. (mm)
0.17 (4.2)
Cable Weight lb/kft (kgm/km)
10 (15)
Maximum Rated Cable Load lb (N)
150 (667)
Fibers Per Tube
–
CPR Rating
Dca-s1, d0, a1
Dop Lookup
LGBC-XXX-E-D (XXX = Fiber Count)
Specification
Single Tube (LGBC)
Fiber Count
4
Cable Outer Diameter in. (mm)
0.18 (4.6)
Cable Weight lb/kft (kgm/km)
12 (18)
Maximum Rated Cable Load lb (N)
150 (667)
Fibers Per Tube
–
CPR Rating
Dca-s1, d0, a1
Dop Lookup
LGBC-XXX-E-D (XXX = Fiber Count)
Specification
Single Tube (LGBC)
Fiber Count
6
Cable Outer Diameter in. (mm)
0.19 (4.9)
Cable Weight lb/kft (kgm/km)
13 (20)
Maximum Rated Cable Load lb (N)
150 (667)
Fibers Per Tube
–
CPR Rating
Dca-s1, d0, a1
Dop Lookup
LGBC-XXX-E-D (XXX = Fiber Count)
Specification
Single Tube (LGBC)
Fiber Count
8
Cable Outer Diameter in. (mm)
0.21 (5.3)
Cable Weight lb/kft (kgm/km)
14 (21)
Maximum Rated Cable Load lb (N)
150 (667)
Fibers Per Tube
–
CPR Rating
Eca
Dop Lookup
LGBC-XXX-E-D (XXX = Fiber Count)
Specification
Single Tube (LGBC)
Fiber Count
12
Cable Outer Diameter in. (mm)
0.22 (5.7)
Cable Weight lb/kft (kgm/km)
17 (25)
Maximum Rated Cable Load lb (N)
150 (667)
Fibers Per Tube
–
CPR Rating
Eca
Dop Lookup
LGBC-XXX-E-D (XXX = Fiber Count)
Model
AllWave ZWP and Multimode
Parameter
≤ 18 Fibers (No Subunits)
Minimum Bend Radius With Load
15 x Cable OD*
Minimum Bend Radius with No Load
10 x Cable OD
Minimum Bend Radius Storage Coils
10 x Cable OD
Parameter
≥ 18 Fibers (With Subunits)
Minimum Bend Radius With Load
15 x Cable OD
Minimum Bend Radius with No Load
10 x Cable OD
Minimum Bend Radius Storage Coils
10 x Cable OD
Parameter
Individual Subunits**
Minimum Bend Radius With Load
15 x Subunit Diameter
Minimum Bend Radius with No Load
10 x Subunit Diameter
Minimum Bend Radius Storage Coils
10 x Subunit Diameter
Parameter
900 µm Buffered Fiber
Minimum Bend Radius With Load
0.25 in (0.635 cm)
Minimum Bend Radius with No Load
0.75 in. (1.9 cm)
Minimum Bend Radius Storage Coils
0.75 in. (1.9 cm)
Model
AllWave FLEX+ ZWP
Parameter
≤ 18 Fibers (No Subunits)
Minimum Bend Radius With Load
15 x Cable OD
Minimum Bend Radius with No Load
8 x Cable OD
Minimum Bend Radius Storage Coils
8 x Cable OD
Parameter
≥ 18 Fibers (With Subunits)
Minimum Bend Radius With Load
15 x Cable OD
Minimum Bend Radius with No Load
8 x Cable OD
Minimum Bend Radius Storage Coils
8 x Cable OD
Parameter
Individual Subunits**
Minimum Bend Radius With Load
15 x Subunit Diameter
Minimum Bend Radius with No Load
8 x Cable OD
Minimum Bend Radius Storage Coils
8 x Cable OD
Parameter
900 µm Buffered Fiber
Minimum Bend Radius With Load
0.25 in. (0.635 cm)
Minimum Bend Radius with No Load
0.40 in. (1.0 cm)
Minimum Bend Radius Storage Coils
0.40 in. (1.0 cm)
Performance Standard
Tested per Applicable Requirements of EIA/TIA 455 and IEC 60794. See section on each cable design for additional test standards. Mechanical and optical attributes meet or exceed industry requirements per ICEA S-83-596 and Telcordia Technologies GR-409.
Temperature Installation
0 ºF to 122 ºF (-17 ºC to 50 ºC)
Temperature Operation
-4 ºF to 158 ºF (-20 ºC to 70 ºC)
Temperature Storage
40 ºF to 185 ºF (-40 ºC to 85 ºC*)
Example
LGBC-012G-WRY-4
Part Number
LGBC-NNNV – W X Y – Z
LGBC
ACCUMAX Distribution Cable
NNN
Fiber Count 002, 004, 006, 008, 012, 018, 024, 036, 048, 072, 096 or 144
V
Cable Version Riser F = Single Tube (018 and 024)+ G = Single Tube (002 to 012) G = Multi Tube (024 to 072) D = Multi Tube (096 and 144) Plenum+ F = Single Tube (002 and 024) E = Multi Tube (024 to 144) Dual-Rated LSZH E = Single Tube (002 to 012)
W
Fiber Type (see chart)
X
Jacket Material (flame retardant) R = Riser P = Plenum H = Low Smoke, Zero Halogen (LSZH) D = Dual Rated LSZH
Y
Jacket Color² Y = Yellow (Single-Mode Optical Fiber) O = Orange (50/125 µm Multimode Fiber) A = Aqua (LaserWave Optical Fiber)
Z
Maximum Cable Attenuation (see chart)
Code
W
Description
AllWave FLEX+ ZWP Bend-Optimized Single-Mode Optical Fiber (G.657.A2)
Code
9
Description
AllWave FLEX Max Bend-Optimized Single-Mode Optical Fiber (G.657.B3 & G.652.D)
Code
K
Description
LaserWave® FLEX G+ Multimode Optical Fiber (OM2)+
Code
3
Description
LaserWave FLEX 300 Multimode Optical Fiber (OM3)+
Code
5
Description
LaserWave FLEX 550 Multimode Optical Fiber (OM4)+
Single-Mode Optical Fibers (dB/km)
AllWave FLEX+ and AllWave FLEX Max Single-Mode Optical Fiber (G.657.A2)+
1310 nm
0.4
1550 nm
0.3
MCA (Z)
4
Single-Mode Optical Fibers (dB/km)
AllWave FLEX+ and AllWave FLEX Max Single-Mode Optical Fiber (G.657.A2)+
1310 nm
0.5
1550 nm
0.5
MCA (Z)
5
Single-Mode Optical Fibers (dB/km)
AllWave FLEX+ and AllWave FLEX Max Single-Mode Optical Fiber (G.657.A2)+
1310 nm
0.7
1550 nm
0.7
MCA (Z)
7
Multimode Optical Fibers (dB/km)
50 µm Multimode and LaserWave FLEX G+ Optical Fiber
850 nm
45780
1300 nm
45778
MCA (Z)
G
Multimode Optical Fibers (dB/km)
LaserWave FLEX 300 and LaserWave FLEX 550 Optical Fiber
850 nm
45780
1300 nm
45778
MCA (Z)
G*
Note
* Installed attenuation values shall be at or below those listed above.
+ Higher attenuation dependent on specific cable constructions. Please contact OFS for additional details if needed.
¹ Part Number shown is for an ACCUMAX Riser-Rated Distribution Cable with 12 AllWave FLEX+ ZWP Fibers and standard cable print and yellow jacket. Alternate cable print is available on request: OFS ACCUMAX® ALLWAVE® FLEX+ ZWP BIF G.657.A2 OPTICAL CABLE -C- LGBC-012G-WRY-4 9/125 E93542 OFNG FT-4 C(UL) US OFNR (MM/YY) {Lot No} {LENGTH IN FEET}
² Contact OFS Order Management for information on other cable variations, including fiber types, attenuation, and custom cable print
Compare products and choose the best one
Compare features, sizes, models to find the perfect option for you
