The design of this dispersion shifted single-mode optical fiber incorporates a germanium doped core and a silica cladding. A high delta core ensures extremely low bending losses. A dual layer protective coating is applied to provide the maximum in abrasion and damage resistance.
The design of this dispersion shifted single-mode optical fiber incorporates a germanium doped core and a silica cladding. A high delta core ensures extremely low bending losses. A dual layer protective coating is applied to provide the maximum in abrasion and damage resistance.
The design of this dispersion shifted single-mode optical fiber incorporates a germanium doped core and a silica cladding. A high delta core ensures extremely low bending losses. A dual layer protective coating is applied to provide the maximum in abrasion and damage resistance.
Tightly wound small diameter coils requiring extremely low bend loss
| Product Specifications | |
|---|---|

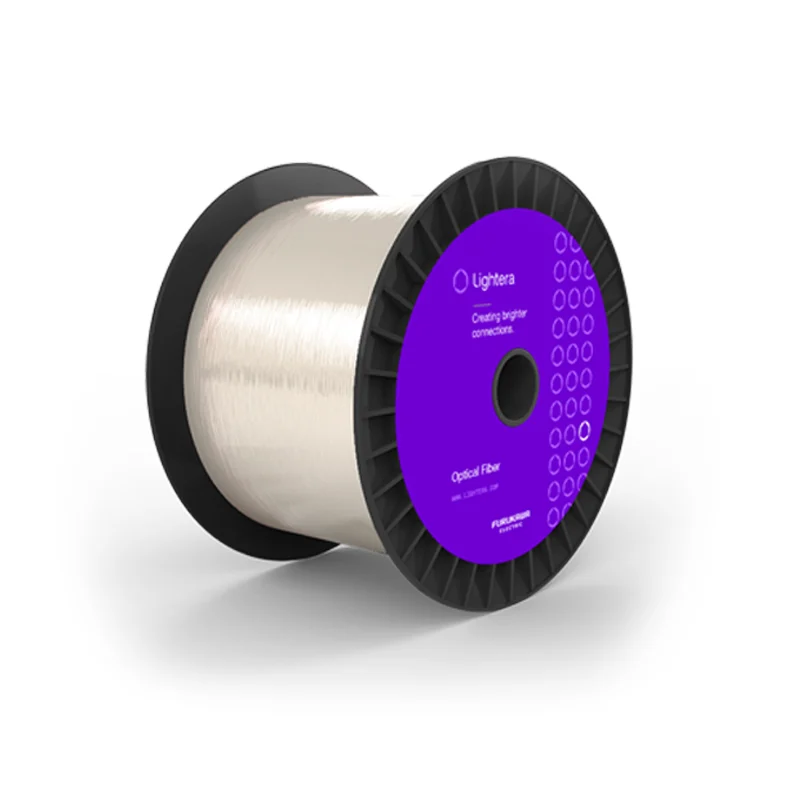

| Product Description | Accutether 80 µm Bend-Optimized Optical Fiber |
| Physical Characteristics | |
| Coating Material | Dual Layer Acrylate |
| Cladding Diameter | 80 ± 1 µm |
| Coating/Buffer Diameter | 160 ± 5 µm Dual Layer |
| Clad Non-Circularity | ≤ 1% |
| Core/Clad Offset | ≤ 0.5 µm |
| Optical Characteristics | |
| Type | Single-Mode |
| Operating Wavelength | 1550 nm |
| Cutoff Wavelength | 1410 ± 50 nm |
| Mode Field Diameter @ 1550 nm | 6.0 ± 0.5 µm |
| Attenuation @ 1550 nm (Maximum) | ≤ 0.5 dB/km |
| Macrobend attenuation: 1 turn on a 2 mm radius mandrel (@ 1550 nm) |
≤ 0.03 dB |
| Mechanical and Environmental |
|
| Tensile Proof Test | 1% 2% On Request |
| Order by Part Number | 27317 |
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-5555 outside the USA. For a full list of our certifications, visit our website.
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
The design of this dispersion shifted single-mode optical fiber incorporates a germanium doped core and a silica cladding. A high delta core ensures extremely low bending losses. A dual layer protective coating is applied to provide the maximum in abrasion and damage resistance.
Tightly wound small diameter coils requiring extremely low bend loss
| Product Specifications | |
|---|---|
| Product Description | Accutether 80 µm Bend-Optimized Optical Fiber |
| Physical Characteristics | |
| Coating Material | Dual Layer Acrylate |
| Cladding Diameter | 80 ± 1 µm |
| Coating/Buffer Diameter | 160 ± 5 µm Dual Layer |
| Clad Non-Circularity | ≤ 1% |
| Core/Clad Offset | ≤ 0.5 µm |
| Optical Characteristics | |
| Type | Single-Mode |
| Operating Wavelength | 1550 nm |
| Cutoff Wavelength | 1410 ± 50 nm |
| Mode Field Diameter @ 1550 nm | 6.0 ± 0.5 µm |
| Attenuation @ 1550 nm (Maximum) | ≤ 0.5 dB/km |
| Macrobend attenuation: 1 turn on a 2 mm radius mandrel (@ 1550 nm) |
≤ 0.03 dB |
| Mechanical and Environmental |
|
| Tensile Proof Test | 1% 2% On Request |
| Order by Part Number | 27317 |
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-5555 outside the USA. For a full list of our certifications, visit our website.
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
