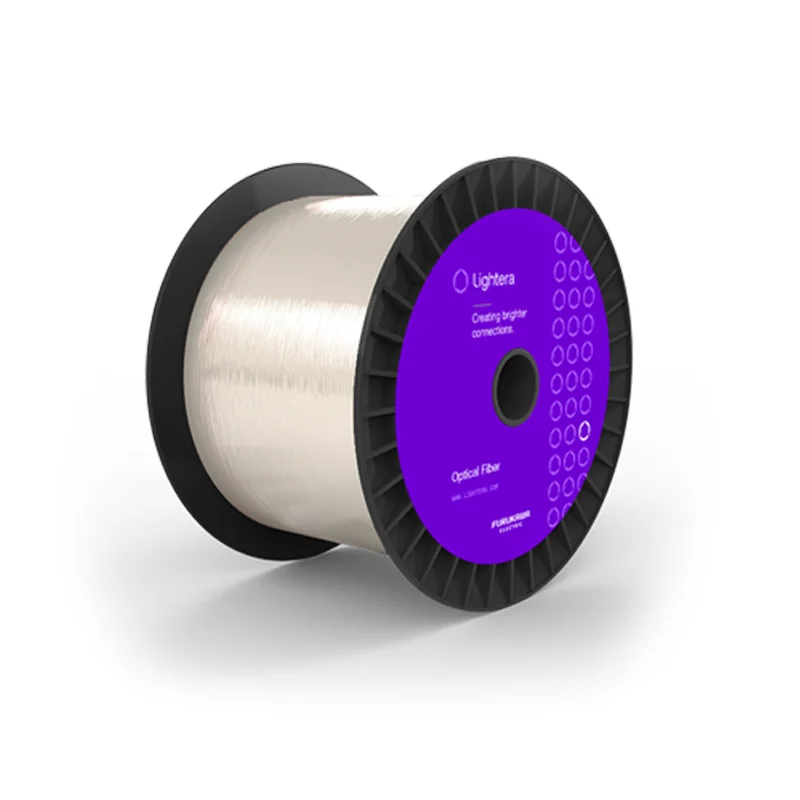

AllWave® FLEX Max Optical Fiber

Features And Benefits

Full spectrum fiber with a 40% increase in usable optical spectrum enables 18-channel CWDM support and much greater DWDM capacity
Coiled into a 5 mm radius loop, fiber incurs losses of ≤ 0.10 dB @ 1550 nm and ≤ 0.25 dB @ 1625 nm
Fully complies with ITU-T G.657 B3 and G.652.D standard recommendations
Maintains extremely low bending loss across the entire optical spectrum
Helps improve drop cable performance in extreme high-stress and low temperature environments
Tight geometric control for very low splice loss and improved connector performance

Applications

AllWave FLEX Max Fiber provides outstanding performance and design freedom for fiber management systems in:

FTTH – Multi-dwelling Units (MDUs), in-building applications and drop cables
Central office
High power applications
Closures
At the customer premises

Overview

AllWave FLEX Max Single-Mode Fiber offers outstanding bend performance to a 5 mm radius for demanding applications. Compatible to and compliant with the installed base of conventional G.652.D single-mode fibers, this fiber is specifically designed for any situation where very small bend diameters may be encountered.

Product Description

AllWave FLEX Max Fiber minimizes bending loss, especially in applications where fiber bend radius may be unmanaged. In challenging conditions, this fiber protects the network against excessive loss from inadvertent bends and from cable flexing, pulling and crushing. AllWave FLEX Max Fiber’s bend performance also enables complex routing within even the most compact cabinet and enclosure designs.

The excellent macrobend performance of AllWave FLEX Max Fiber protects the fiber in high power applications such as those in central offices. This capability allows providers to reliably achieve significantly smaller bend diameters with up to 100 times lower loss than conventional single-mode fiber.

Product Specifications

Product Specifications
Physical Characteristics
Clad Diameter	125.0 ± 0.7 μm
Clad Non-Circularity	≤ 0.7 %
Core/Clad Concentricity Error (Offset)	≤ 0.5 μm, ≤ 0.2 μm typically
Coating Diameter (Uncolored)	237 – 247 µm
Coating-Clad Concentricity Error (Offset)	≤ 12 μm
Tensile Proof Test	100 kpsi (0.69 GPa)
Coating Strip Force	Range: 1.0 N ≤ CSF ≤ 8.9 N
Standard Reel Lengths	up to 50.4 km
Optical Characteristics
Maximum Attenuation at 1310 nm	≤ 0.35 dB/km
Maximum Attenuation at 1383 nm¹	≤ 0.35 dB/km
Maximum Attenuation at 1490 nm	≤ 0.24 dB/km
Maximum Attenuation at 1550 nm	≤ 0.21 dB/km
Maximum Attenuation at 1625 nm	≤ 0.23 dB/km
¹ After H2 aging tests according to IEC 60793-2-50.
Attenuation Uniformity / Point Discontinuities at 1310 nm and 1550 nm	≤ 0.05 dB
Chromatic Dispersion
Zero Dispersion Wavelength (λ0)	1302 – 1322 nm
Zero Dispersion Slope (λ0)	≤ 0.092 ps/nm²-km
Dispersion at 1550 nm	≤ 18 ps/nm km
Cut-off Wavelength (λcc)	≤ 1260 nm
Group Refractive Index at 1310 nm	1.467
Group Refractive Index at 1550 nm	1.468
Mode Field Diameter at 1310 nm	8.3 – 9.1 µm
Mode Field Diameter at 1550 nm	9.2 – 10.4 µm
Polarization Mode Dispersion (PMD)³
Fiber PMD Link Design Value (LDV)⁴	≤ 0.06 ps/√km
Maximum Individual Fiber	≤ 0.1 ps/√km
Note	³ As measured with low mode coupling (LMC) technique in fiber form, value may change when cabled. Check with your cable manufacturer for specific PMD limits in cable form. ⁴ The PMD Link Design Value complies with IEC 60794-3, September 2001 (N = 20, Q = 0.01%). Details are described in IEC 61282-3 TR Ed 2, October 2006.

Attenuation vs. Wavelength²

Attenuation vs. Wavelength²
Range (nm)	Reference (nm)	α
1285 – 1300	1310	0.03
1360 – 1480	1383	0.04
1525 – 1575	1550	0.02
1460 – 1625	1550	0.04
² The attenuation in a given wavelength range does not exceed the attenuation of the reference wavelength (λ) by more than the value α.

Macrobending Attenuation

Macrobending Attenuation
The maximum attenuation with bending does not exceed the specified values under the following deployment conditions:
Deployment Condition	Wavelength	Induced Attenuation
1 turn on a 10 mm radius mandrel	1550 nm	≤ 0.03 dB
1 turn on a 10 mm radius mandrel	1625 nm	≤ 0.10 dB
1 turn on a 7.5 mm radius mandrel	1550 nm	≤ 0.05 dB
1 turn on a 7.5 mm radius mandrel	1625 nm	≤ 0.15 dB
1 turn on a 5 mm radius mandrel	1550 nm	≤ 0.10 dB
1 turn on a 5 mm radius mandrel	1625 nm	≤ 0.25 dB

Environmental Characteristics (at 1310, 1550 & 1625 nm)

Environmental Characteristics (at 1310, 1550 & 1625 nm)
Temperature Cycling (-60 + 85 °C)	≤ 0.05 dB/km
High Temperature Aging (85 ± 2 °C)	≤ 0.05 dB/km
Water Immersion (23 ± 2 °C)	≤ 0.05 dB/km
