- Good beam characteristics
- High efficiency
- Compact footprint
- Superior reliability and quality
Code -
06740-01
ErYb 7/125 Glass Cladding Optical Fiber
ErYb 7/125 Glass Cladding Optical Fiber
ErYb 7/125 Glass Cladding Optical Fiber
Features
Typical Applications
- Optical amplifiers operating in 1550 nm range, multi-Watt output power
- CATV amplifiers
- Amplifiers for free space communication
- LIDAR
Product Specifications
| Product Specifications | |
|---|---|
| Product Description | ErYb 7/125 Glass Cladding Optical Fiber |
| Optical Characteristics | |
| Operating Wavelength | 1550 nm |
| Core Properties | |
| Numerical Aperture | > 0.20 |
| Nominal Absorption @ 1535 nm | 50 dB/m |
| Mode Field Diameter @ 1550 nm | 7 µm |
| Cladding Properties | |
| Numerical Aperture | > 0.22 |
| Absorption @ 915 nm | > 1.6 dB/m |

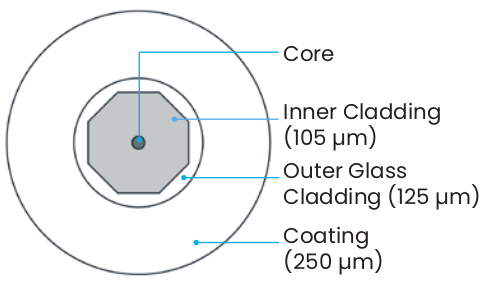

| Physical Characteristics | |
| Inner Cladding Diameter | 105 µm |
| Circular Cladding Diameter | 125 µm |
| Coating Diameter | 250 µm |
| Mechanical and Environmental | |
| Tensile Proof Test | 0.69 Gpa (100 kpsi) |
| Other Information | |
| Order by Part Number | 88773 |
| Product Description | ErYb 7/125 Glass Cladding Optical Fiber |
| Regulatory Compliance | REACH and RoHS Compliant |
| Quality Certification | ISO 9001 Certified |
Contact Information
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.
Trademark Notice and Disclaimer
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
