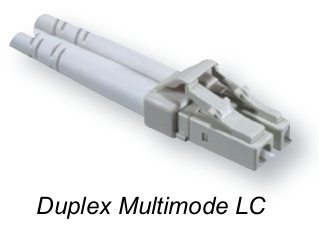

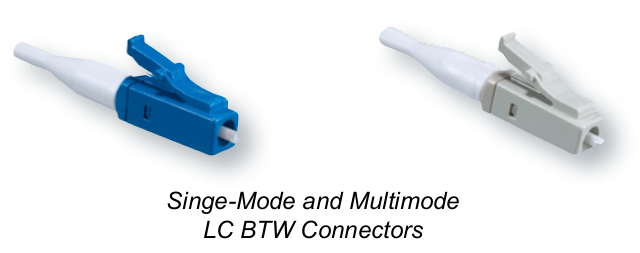

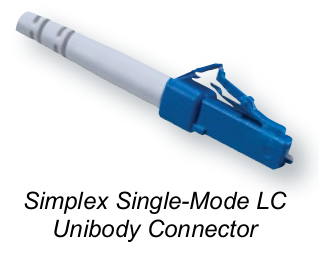

The LC Connector from Lightera is available in several configurations to fit many applications. The LC is available for single-mode, multimode, and APC applications. The APC connector is designed to provide superior return loss without sacrificing insertion loss performance. The Unibody® jumper connector is available for both 1.6/2.0 mm cordages as well as 3 mm cordages. There are several cable support options for the Unibody connector for 1.6/2.0 mm cordages. Connectors can be ordered with a fully rotatable 42 degree angled boot for easier fiber management. For applications with space constraints, the LC Unibody can also be ordered with a short boot option. This short boot measures approximately 21 mm as compared to the standard cable support which is approximately 29 mm. The behind-the-wall (BTW) version is designed to mount on 0.9 mm buffered fiber. LC connectors are also available with pre-radiused ferrules. Using pre-radiused ferrules reduces polishing time and cuts the costs of consumables required. Pre-radiused connectors have more consistent end-face geometries, which result in more consistent optical performance.
The LC Connector from Lightera is available in several configurations to fit many applications. The LC is available for single-mode, multimode, and APC applications. The APC connector is designed to provide superior return loss without sacrificing insertion loss performance. The Unibody® jumper connector is available for both 1.6/2.0 mm cordages as well as 3 mm cordages. There are several cable support options for the Unibody connector for 1.6/2.0 mm cordages. Connectors can be ordered with a fully rotatable 42 degree angled boot for easier fiber management. For applications with space constraints, the LC Unibody can also be ordered with a short boot option. This short boot measures approximately 21 mm as compared to the standard cable support which is approximately 29 mm. The behind-the-wall (BTW) version is designed to mount on 0.9 mm buffered fiber. LC connectors are also available with pre-radiused ferrules. Using pre-radiused ferrules reduces polishing time and cuts the costs of consumables required. Pre-radiused connectors have more consistent end-face geometries, which result in more consistent optical performance.
The LC Connector from Lightera is available in several configurations to fit many applications. The LC is available for single-mode, multimode, and APC applications. The APC connector is designed to provide superior return loss without sacrificing insertion loss performance. The Unibody® jumper connector is available for both 1.6/2.0 mm cordages as well as 3 mm cordages. There are several cable support options for the Unibody connector for 1.6/2.0 mm cordages. Connectors can be ordered with a fully rotatable 42 degree angled boot for easier fiber management. For applications with space constraints, the LC Unibody can also be ordered with a short boot option. This short boot measures approximately 21 mm as compared to the standard cable support which is approximately 29 mm. The behind-the-wall (BTW) version is designed to mount on 0.9 mm buffered fiber. LC connectors are also available with pre-radiused ferrules. Using pre-radiused ferrules reduces polishing time and cuts the costs of consumables required. Pre-radiused connectors have more consistent end-face geometries, which result in more consistent optical performance.
| Ordering Information | ||
|---|---|---|
| Jumper Connectors: 1.6 & 2.0 mm Comcode |
||
| Jumper Connectors | Standard Ferrule | Pre-Radiused Ferrule |
| SM Simplex – 125.5 1 | 300473923 | 300473204 |
| SM Simplex – 125.5 – 100 | 109167510 | 300473212 |
| SM Simplex – 125.5 – 1000 | 109092817 | 300471174 |
| SM Simplex – 126.0 – 1 | 109154559 | 300461670 |
| SM Simplex – 126.0 – 100 | 109167528 | 300473147 |
| SM Simplex – 126.0 – 1000 | 109047753 | 300471133 |
| SM Duplex – 125.5 – 100 | 300409323 | 300473238 |
| SM Duplex – 125.5 – 1000 | NA | 300471182 |
| SM Duplex 126.0 – 1 | 108137605 | 300473154 |
| SM Duplex – 126.0 – 100 | 108241969 | 300473162 |
| SM Duplex – 126.0 – 1000 | NA | 300471141 |
| MM Simplex – 127.0 – 1 | 108064445 | 300461696 |
| MM Simplex – 127.0 – 100 | 300429990 | 300473113 |
| MM Simplex – 127.0 – 1000 | 109026062 | 300471091 |
| MM Duplex – 127.0 – 1 | 108138678 | 300473121 |
| MM Duplex – 127.0 – 100 | 108241977 | 300473139 |
| MM Duplex – 127.0 – 1000 | 109026039 | 300471109 |
| APC Simplex – 125.5 – 100 | 109167478 | NA |
| APC Simplex – 125.5 – 1000 | 109122051 | NA |
| APC Simplex – 126.0 – 100 | 109167494 | NA |
| APC Simplex – 126.0 – 1000 | 109148536 | NA |
| Jumper Connectors: 3.0 mm Comcode |
||
| Jumper Connectors | Standard Ferrule | Pre-Radiused Ferrule |
| SM Simplex – 125.5 1 | 300473931 | 300473246 |
| SM Simplex – 125.5 – 100 | 300415247 | 300473253 |
| SM Simplex – 125.5 – 1000 | 300464716 | 300471190 |
| SM Simplex – 126.0 – 1 | 108405382 | 300473287 |
| SM Simplex – 126.0 – 100 | 300415288 | 300473170 |
| SM Simplex – 126.0 – 1000 | 300473998 | 300471158 |
| SM Duplex – 125.5 – 100 | 300415312 | 300473279 |
| SM Duplex – 125.5 – 1000 | NA | 300471208 |
| SM Duplex 126.0 – 1 | 300415296 | 300473188 |
| SM Duplex – 126.0 – 100 | 300415403 | 300473196 |
| SM Duplex – 126.0 – 1000 | NA | 300471166 |
| MM Simplex – 127.0 – 1 | 108405374 | 300474012 |
| MM Simplex – 127.0 – 100 | 300415320 | 300474020 |
| MM Simplex – 127.0 – 1000 | 300464690 | 300471117 |
| MM Duplex – 127.0 – 1 | 108405408 | NA |
| MM Duplex – 127.0 – 100 | 300415338 | 300474038 |
| MM Duplex – 127.0 – 1000 | 300447307 | 300471125 |
| APC Simplex – 125.5 – 100 | NA | NA |
| APC Simplex – 125.5 – 1000 | NA | NA |
| APC Simplex – 126.0 – 100 | 300415353 | NA |
| APC Simplex – 126.0 – 1000 | NA | NA |
| BTW Connectors Comcode |
||
| Jumper Connectors | Standard Ferrule | Pre-Radiused Ferrule |
| SM Simplex – 125.5 1 | 300474046 | 300473378 |
| SM Simplex – 125.5 – 100 | 109095356 | 300472396 |
| SM Simplex – 125.5 – 1000 | 300447281 | 300472404 |
| SM Simplex – 126.0 – 1 | 107764300 | 300461662 |
| SM Simplex – 126.0 – 100 | 108247420 | 300472370 |
| SM Simplex – 126.0 – 1000 | 109026054 | 300472388 |
| SM Duplex – 125.5 – 100 | NA | NA |
| SM Duplex – 125.5 – 1000 | NA | NA |
| SM Duplex 126.0 – 1 | NA | NA |
| SM Duplex – 126.0 – 100 | NA | NA |
| SM Duplex – 126.0 – 1000 | NA | NA |
| MM Simplex – 127.0 – 1 | 107764292 | 300461688 |
| MM Simplex – 127.0 – 100 | 108247412 | 300472354 |
| MM Simplex – 127.0 – 1000 | 109026047 | 300472362 |
| MM Duplex – 127.0 – 1 | NA | NA |
| MM Duplex – 127.0 – 100 | NA | NA |
| MM Duplex – 127.0 – 1000 | NA | NA |
| APC Simplex – 125.5 – 100 | 109167544 | NA |
| APC Simplex – 125.5 – 1000 | 109122069 | NA |
| APC Simplex – 126.0 – 100 | 109167536 | NA |
| APC Simplex – 126.0 – 1000 | 109148742 | NA |
| LC Kits and Consumables | ||
|---|---|---|
| Product | Description | Comcode |
| Tool Kit | 1032B5 | 106705213 |
| Upgrade Kit for LC | D182959 | 108262569 |
| SM Consumable Kit (200 connectors) | D182983 | 108338591 |
| MM Consumable Kit (200 connectors) | D182977 | 108340811 |
| Universal Rubber Pad | 300472644 | |
| Universal Polishing Kit (100 pre-radiused connectors) | 300472651 | |
| 1510 LC 3.0 Crimp Tool | 300421013 | |
| LC Field Mountable Connector Tuned Specifications | |
|---|---|
| Ferrule Diameter | 125.5 µm |
| Cable Outside Diameter (od) | 0.9 mm BTW |
| Insertion Loss Mean, Standard (m,s)¹ | 0.06 dB, 0.06 dB |
| Return Loss | 55 dB |
| Mating Durability (insertion Loss Change After 500 Reconnects | < 0.2 dB |
| Temperature Stability | -40 °C to +75 °C |
| Insertion Loss Change | < 0.3 dB |
| Tip Material | Zirconia |
| Note | ¹ Complete connection concatenated statistics, 8.3/125 µm fiber, 62.5/125 µm fiber, dry connection
|
