LC
Part no -
P26764-02
LC Crimp & Cleave Black Boot, Duplex Connector
Lightera LC Crimp and Cleave connectors are designed to work with high bandwidth multimode graded-index step-index HCS® optical cables providing a robust and reliable connectivity solution for Industrial Networks. These rugged industrial grade connectors are compatible with commonly available SFP (small format pluggable) transceivers for IP routing devices for Fast and Gigabit Ethernet connections.

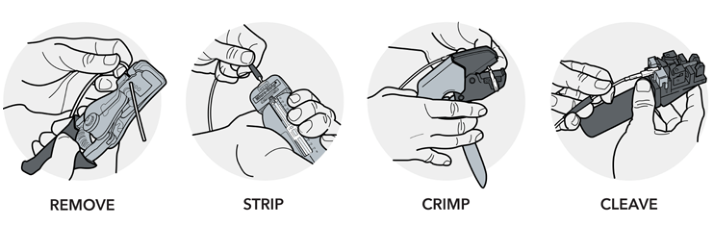

The LC Crimp and Cleave connector takes advantage of the advanced optical and mechanical properties of HCS and GiHCS® fibers, attaching through mechanical means rather than traditional epoxy/polish processes. Crimp and Cleave cable’s termination saves time and greatly simplifies installer training requirements. Fiber optic specialists are not required for this process. It is an excellent solution for field connectorization and cable repairs in harsh, industrial environments.
Lightera LC Crimp and Cleave connectors are designed to work with high bandwidth multimode graded-index step-index HCS® optical cables providing a robust and reliable connectivity solution for Industrial Networks. These rugged industrial grade connectors are compatible with commonly available SFP (small format pluggable) transceivers for IP routing devices for Fast and Gigabit Ethernet connections.
The LC Crimp and Cleave connector takes advantage of the advanced optical and mechanical properties of HCS and GiHCS® fibers, attaching through mechanical means rather than traditional epoxy/polish processes. Crimp and Cleave cable’s termination saves time and greatly simplifies installer training requirements. Fiber optic specialists are not required for this process. It is an excellent solution for field connectorization and cable repairs in harsh, industrial environments.
Connectors and Mating Adapters
Overview
Lightera LC Crimp and Cleave connectors are designed to work with high bandwidth multimode graded-index step-index HCS® optical cables providing a robust and reliable connectivity solution for Industrial Networks. These rugged industrial grade connectors are compatible with commonly available SFP (small format pluggable) transceivers for IP routing devices for Fast and Gigabit Ethernet connections.
The LC Crimp and Cleave connector takes advantage of the advanced optical and mechanical properties of HCS and GiHCS® fibers, attaching through mechanical means rather than traditional epoxy/polish processes. Crimp and Cleave cable’s termination saves time and greatly simplifies installer training requirements. Fiber optic specialists are not required for this process. It is an excellent solution for field connectorization and cable repairs in harsh, industrial environments.
Product Specifications
| Product Specifications | |
|---|---|
| Product Description | LC Crimp & Cleave Black Boot Duplex Connector for 50/200/230, 62.5/200/230 GiHCS® and 200/230 HCS® |
| Specifications | |
| Boot Color | Black |
| Connector Type | Duplex |
| For Use with Optical Fiber Cable Types | Graded-Index 50/200/230 and 62.5/200/230 GiHCS V-System® Cables |
| Overall Length (Without Boot) | 1.53 in. (39 mm) |
| Overal Length (With Boot Installed) | 2.18 in. (55 mm) |
| Connector Performance Data | |
| Typical Insertion Loss @ 850 nm | 50/200/230 GiHCS – 1.0 dB 62.5/200/230 GiHCS – 1.0 dB |
| Maximum Insertion Loss @ 850 nm | 50/200/230 GiHCS – 1.5 dB 62.5/200/230 GiHCS – 1.5 dB |
| Typical Insertion Loss @ 1300 nm | 50/200/230 GiHCS – 1.2 dB 62.5/200/230 GiHCS – 1.2 dB |
| Maximum Insertion Loss @ 1300 nm | 50/200/230 GiHCS – 1.7 dB 62.5/200/230 GiHCS – 1.7 dB |
| Operating Temperature | -40 to +85 ºC |
| Cable Crimp Retention | 4.99 lb. (22.2 N) |
| Cable Design | |
| Jacket Diameter | 2.2 mm |
| Compatibility | |
| Compatible Termination Kit | DT03732-LC1 |
| Compatible Insertion Loss Kit | P10188-15 |
| Order by Part Number | P26764-02 |
Contact Information
For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-5555 outside the USA. For a full list of our certifications, visit our website.
Trademark Notice and Disclaimer
Lightera reserves the right to make changes to the product(s) described in this document at any time without notice. This document is for informational purposes only and is not intended to modify or supplement any Lightera warranties or specifications relating to any of its products or services.
